Description

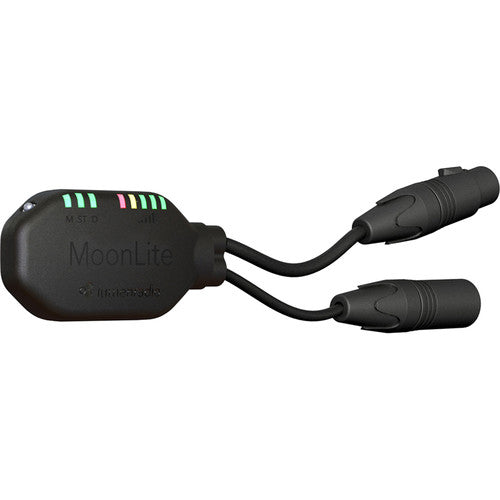

MoonLite is a wireless lighting control product with LumenRadio’s award winning ultra-reliable CRMX technology combined with Bluetooth connectivity and a built-in battery.
By being a wireless DMX/RDM transmitter and receiver, MoonLite is truly the Swiss army knife of the wireless DMX world! Capable of transmitting and receiving both CRMX and W-DMX, it is compatible with the vast majority of all wireless DMX fixtures in the world.
With built-in support for Bluetooth connectivity, MoonLite enables tablet and phone based lighting control softwares to connect directly without the need for extra hardware. MoonLite is a state-of-the-art transceiver; thanks to its small size, built-in battery and dual XLR connectors it is ideal for use at clubs, small stage events, corporate events, in theaters and temporary events where wireless DMX connectivity is needed.
MoonLite has the same reliable functionalities as all LumenRadio’s CRMX products, but is updated with even smarter disturbance detection technology, allowing for even more stable connectivity – and it comes in a much smaller package.
DMX/RDM transceiver (TX and RX)
Transmit CRMX Classic, W-DMX G3 / G4S
Receive all CRMX and W-DMX modes
DC power
Bluetooth connectivity
Rechargeable battery
App control
Firmware updates available over Bluetooth
General
Inputs/Outputs 2 x XLR 5-Pin (DMX)
1 xMicro-USB
Channels 512 (DMX)
Frame Rates 0.8 to 7352 Hz
Latency 5 ms
Sensitivity -96 dBm
Wireless Range 984.3' / 300 m
Frequency 2.4 GHz
Transmit Power 20 dBm
Power
DC Input Power 5 VDC at 0.5 A
Compatibility
Protocol DMX512, RDM, W-DMX
Environmental
Operating Temperature -4 to 122°F / -20 to 50°C
Humidity 0 to 95%
Certifications CE, EN60950-1, FCC
*as per Manufacturer
Physical
Material of Construction Plastic
Dimensions 3.9 x 2.0 x 1.0" / 100.0 x 50.0 x 26.0 mm
Weight 0.3 lb / 0.14 kg
Packaging Info
Package Weight 0.65 lb
Box Dimensions (LxWxH) 11.1 x 6.7 x 2.2"
