Includes:
Control: W-DMX and IR Remote

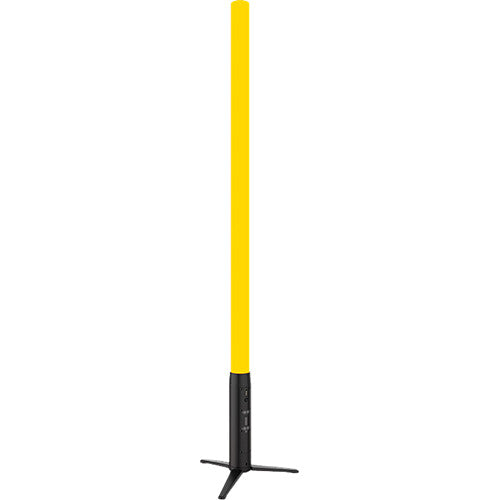

Lighting designers looking for a truly wireless set of LED tubes will be impressed with the 4-pack of CHAUVET PROFESSIONAL WELL STX 360, a dynamic freestanding, battery-operated, and outdoor-ready IP65 LED tubes. Each tube emits 360° of ultrabright, high-quality, pixel-mappable light.
The 16 zones of the RGBWW LEDs produce exceptional eye candy effects with high CRI, so it looks just as fantastic on camera as it does in person. The unit is packaged as part of a complete kit that includes four WELL STX 360 light tubes, four eyebolts for suspended hanging options, four folding floor stands, an IR remote, an ABS plastic charging flight case, and a power cord.
Four pixel-mapping, battery-operated, IP65-rated LED sticks with a 360-degree viewing angle
Four mounting stands, four hanging eyebolts, an IR remote, and a charging case
16 individual zones of control for pixel mapping effects
High CRI LEDs for fantastic skin tone rendering
Simple and complex operational modes
Built-in editable pre-programmed effects that are controllable from the menu and over DMX
3, 5, 8, and 12-hour settings for optimizing performance time
Included accessories for several mounting options
Included charging flight case for easy transportation and charging of fixtures
Update software over USB-C connection in a flight case (upload all four fixtures at once)
Works in both standalone modes, as well as under DMX over W-DMX
Works perfectly with the WELL-COM controller and app
Key Specs
Fixture Type
Special Design
Light Source
256x Color LED - 45 W / 3 A
256x White LED - 45 W / 3 A
Colors
Red, Green, Blue, Warm White
Pixel Configuration
16x Zone
Beam Angle
360°
Control Protocols
W-DMX
AC Input Power
100 to 240 VAC, 50/60 Hz
Battery Type
18.5 V Lithium-Ion
Mounting
Eye Bolt, Floor Base
Light
Fixture Type
Special Design
Light Source
256x Color LED - 45 W / 3 A
256x White LED - 45 W / 3 A
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue, Warm White
Pixel Configuration
16x Zone
Photometrics
360°:
1 fc / 5 Lux at 16.4' / 5 m
Color Temperature
2800 to 8000K
Lumen Output
1718 Lumens
Beam Angle
360°
Field Angle
360°
Shutter / Strobe
Electronic
Iris
No
Zoom Adjustment
No
Dimming
Electronic with 4 Dimmer Modes
Performance
Operating Modes
Automatic, DMX
Macros / Programs
Auto-Program
Color Mixing
Color Temperature
Effects
Strobe
Strobe Rate
0 to 28 Hz
Gobos
No
Color Accuracy Index
CRI: 91.9
Control
Control Protocols
W-DMX
DMX Channel Modes
4 Mode(s):
4 / 15 / 64 / 67-Channel
Remote Control
IR Remote
Mobile App Compatible
No
Connectivity
Inputs/Outputs
No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Plug Type: NEMA 5-15
Cord Length: 5' / 1.5 m
DC Input Power
24 VDC
Power / Current Consumption
120 VAC, 60 Hz: 40 W / 0.33 A
208 VAC, 60 Hz: 66 W / 0.31 A
230 VAC, 50 Hz: 67 W / 0.29 A
Power Linking
10 Units at 120 VAC
10 Units at 208 VAC
11 Units at 230 VAC
Battery Type
18.5 V Lithium-Ion
Battery Capacity
10,050 mAh / 185.9 Wh
Approximate Battery Life
Up to 12 Hours
Battery Charging Time
4 Hours
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Operating Temperature
-22 to 113°F / -30 to 45°C
Physical
Mounting
Eye Bolt, Floor Base
Included Accessories
1x Charging Case
1x Power Cable
Duty Cycle
No
Exterior Color
Black
Dimensions
59 x 2.75 x 2.75" / 149.9 x 6.99 x 6.99 cm
Weight
9 lb / 4.1 kg
