Description
Includes: 6 WELL STX 180, 12 magnetic brackets, 6 hanging threadded eye loops, 6 Screw tripod bases, 1 IR remote, 1 True 1 style power cable, and 1 charging case
Control: W-DMX and IR Remote

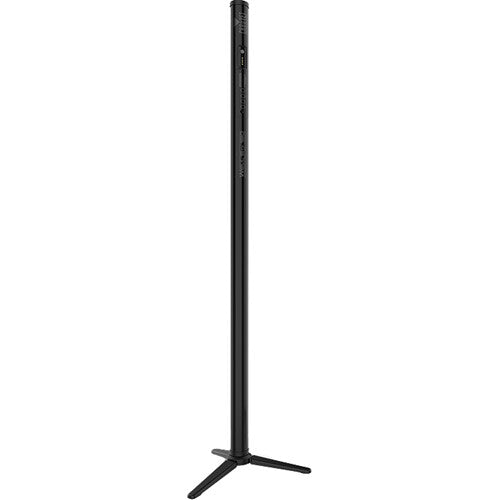

Lighting designers looking for a truly wireless set of LED tubes will be impressed with the CHAUVET PROFESSIONAL WELL STX 180, a 6-pack of dynamic freestanding, battery-operated, and outdoor-ready (IP65) LED tubes. Each tube emits 180° of ultra-bright, high-quality, pixel-mappable light with an optional stealth filter for a complete disappearing effect when off.
The 16 zones of the RGBWW LEDs produce exceptional eye-candy effects with high CRI, so it looks just as fantastic on camera as it does in person. The unit is packaged as part of a complete kit that includes six WELL STX 180 light tubes, 12 magnetic brackets for attaching to steel surfaces, six eyebolts for suspended hanging options, six folding floor stands, six stealth black diffusers, an IR remote, and an ABS plastic charging flight case.
Six pixel-mapping, battery-operated, 1m, IP65-rated LED strips with 180° viewing angle,
Kit includes six mounting stands, 12 magnetic brackets, six hanging eye bolts, six stealth black filters, an IR remote, and a charging case
16 individual zones of control for pixel mapping effects
High CRI LEDs for fantastic skin tone rendering
Simple and complex operational modes
Built-in editable pre-programmed effects that are controllable from the menu and over DMX
3-, 5-, 8-, and 12-hour settings for optimizing performance time
Included accessories for several mounting options
Included charging flight case for easy transportation and charging of fixtures
Update software over USB-C connection in flight case (upload all six fixtures at once)
Works in both standalone modes and under DMX over W-DMX
Works perfectly with the WELL-COM controller and app
Key Specs
Fixture Type
Special Design
Light Source
64x Color LED - 45 W / 3 A
64x White LED - 45 W / 3 A
Colors
Red, Green, Blue, Warm White
Pixel Configuration
16x Zone
Beam Angle
126 / 210°
Control Protocols
W-DMX
AC Input Power
100 to 240 VAC, 50/60 Hz
Battery Type
14.8 V Lithium-Ion
Mounting
Eye Bolt, Floor Base, Magnetic Bracket
Light
Fixture Type
Special Design
Light Source
64x Color LED - 45 W / 3 A
64x White LED - 45 W / 3 A
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue, Warm White
Pixel Configuration
16x Zone
Photometrics
2 fc / 17 Lux at 16.4' / 5 m
Color Temperature
2800 to 8000K
Lumen Output
1387 Lumens
Beam Angle
126 / 210°
Field Angle
214 / 210°
Shutter / Strobe
Electronic
Iris
No
Zoom Adjustment
No
Dimming
Electronic with 4 Dimmer Modes
Performance
Operating Modes
Program, Standalone
Macros / Programs
Auto-Program
Color Temperature
Color Mixing
Effects
Strobe
Strobe Rate
0 to 22 Hz
Gobos
No
Color Accuracy Index
CRI: 94
Control
Control Protocols
W-DMX
DMX Channel Modes
4 Mode(s):
4 / 15 / 64 / 67-Channel
Remote Control
IR Remote
Mobile App Compatible
No
Connectivity
Inputs/Outputs
No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Plug Type: NEMA 5-15
DC Input Power
14.8 VDC
Power / Current Consumption
120 VAC, 60 Hz: 33 W / 0.27 A
208 VAC, 60 Hz: 42 W / 0.2 A
230 VAC, 50 Hz: 44 W / 0.19 A
Power Linking
8 Units at 120 VAC
11 Units at 208 VAC
11 Units at 230 VAC
Battery Type
14.8 V Lithium-Ion
Approximate Battery Life
Up to 12 Hours
Battery Charging Time
6 Hours
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Operating Temperature
113°F / 45°C
Physical
Mounting
Eye Bolt, Floor Base, Magnetic Bracket
Included Accessories
1x Power Cable
1x Charging Case
Duty Cycle
No
Exterior Color
Black
Dimensions
39.3 x 1.6 x 1.6" / 99.8 x 4.1 x 4.1 cm
Weight
3.4 lb / 1.5 kg
