Description

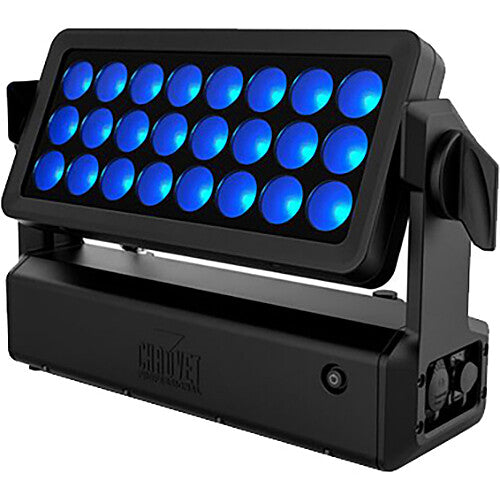

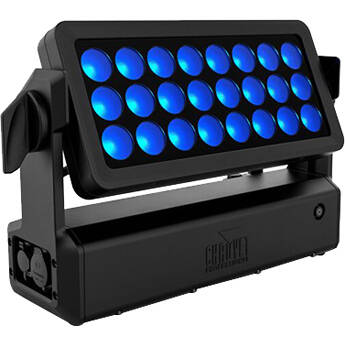

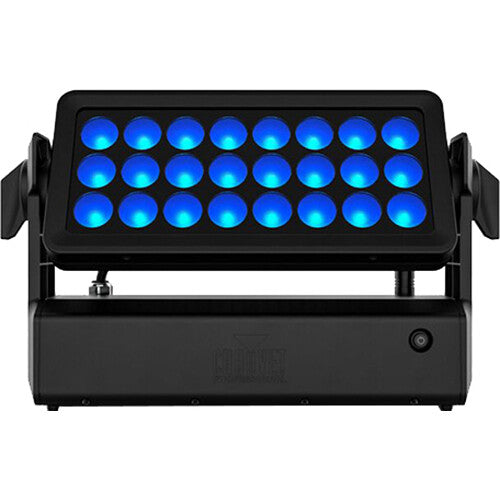

Lighting designers looking for a completely wireless, outdoor-rated, batty-powered wash light with professional features will be impressed by the CHAUVET PROFESSIONAL WELL Panel, a quad-color LED fixture that delivers bright, fully saturated tones and pastel colors, well suited for onstage productions or highlighting scenic and architectural pieces.
Powered by 24 LEDs (24 red, 24 green, 24 blue, and 24 warm-white), the WELL panel offers 5773 lumen output and features a beam angle of 14° or 32.3° with the included filter. Other additional features include selectable dimming, red shift emulation, PWM settings for camera use, and control via W-DMX, IR remote, DMX. The WELL Panel includes an Omega bracket and a Seetronic PowerKon power cord.
A completely wireless, IP65 rated, battery powered fixture with 24 quad color (red, green, blue and warm white) LEDs that is controlled by W-DMX, IR, DMX or control panel
High CRI value of 90+ across different color temperatures of white
Selectable Red Shift emulation over DMX and from the fixture display
Selectable PWM settings
Selectable dimming speed and curves
Built in color temperature presets
RDM control over DMX for fixture setup and reporting
Line voltage input allows fixture to operate while being charged
Built in power loss detection when operating under line voltage
Wireless operation with WDMX or IR remote (not included) as well as wired DMX operation
Magnetic diffuser filter included for wider light coverage
Omega bracket included for easy hanging options
User selectable hours of operation (3, 5, 8, 12) at full output with a recharge time of 4 hours
Built in automated programs recallable by W-DMX, DMX or manually.
170° rotation of the panel from the base for easy direction of light
IP65 rating for temporary outdoor usage
Key Specs
Fixture Type
LED Panel
Light Source
24x Color LED - 3 W / 500 mA
Colors
Red, Green, Blue, Warm White
Beam Angle
14 / 32.3° (without Filter)
Control Protocols
DMX512, RDM, WiFly
AC Input Power
100 to 240 VAC, 50/60 Hz
Battery Type
Lithium-Ion
Mounting
Omega Bracket
Light
Fixture Type
LED Panel
Light Source
24x Color LED - 3 W / 500 mA
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue, Warm White
Photometrics
14°:
257 fc / 2761 Lux at 16.4' / 5 m
32°:
51 fc / 544 Lux at 16.4' / 5 m
Beam Angle
14 / 32.3° (without Filter)
Field Angle
32.3 / 58.6° (with Filter)
Shutter / Strobe
Electronic
Dimming
16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
Performance
Operating Modes
Automatic, DMX, Primary/Secondary, Program, Static Color
Macros / Programs
9x Auto-Program
Color Macro
Effects
No
Strobe Rate
0 to 30 Hz
Gobos
No
Control
Control Protocols
DMX512, RDM, WiFly
DMX Channel Modes
5 Mode(s):
4 / 8 / 12 / 13 / 21-Channel
Display / Controls
LCD / 4-Button
Remote Control
IR Remote (with Optional Equipment)
Connectivity
Inputs/Outputs
2 x XLR 5-Pin DMX Input/Output
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Power / Current Consumption
120 VAC, 60 Hz: 123 W / 1.02 A
208 VAC, 60 Hz: 124 W / 0.58 A
230 VAC, 50 Hz: 123 W / 0.53 A
Power Linking
11 Units at 120 VAC
19 Units at 208 VAC
21 Units at 230 VAC
Battery Type
Lithium-Ion
Approximate Battery Life
Up to 3 Hours
Up to 5 Hours
Up to 8 Hours
Up to 12 Hours
Battery Charging Time
4 Hours
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Physical
Mounting
Omega Bracket
Duty Cycle
No
Exterior Color
Black
Dimensions
17.17 x 10.24 x 5.31" / 43.61 x 26.01 x 13.49 cm
Weight
22.6 lb / 10.3 kg (Each Light)
