Description
Includes: 6 WELL Fit fixtures in an Integrated Flight Case/Charging Unit, PowerCON Power Cord , Control: W-DMX and 5-pin DMX

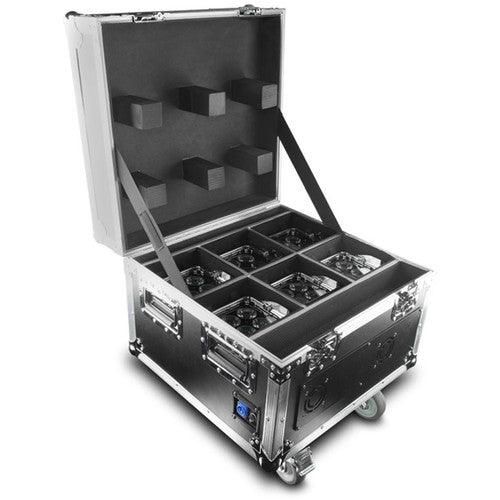

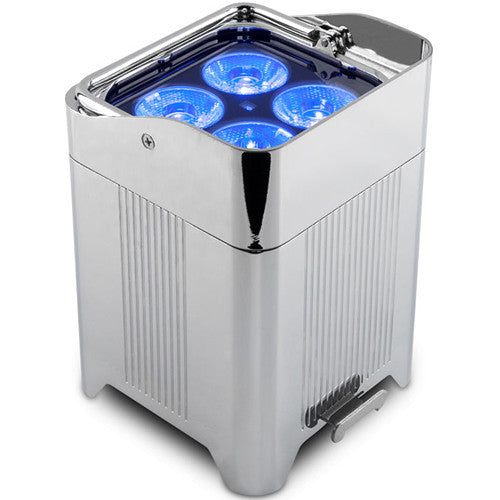

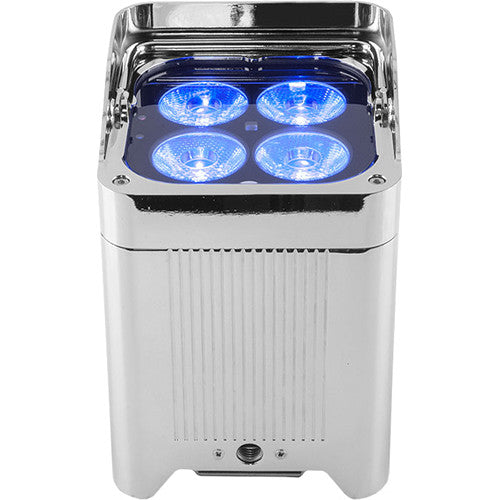

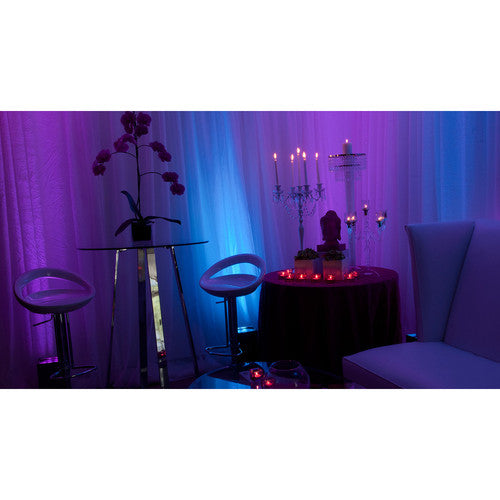

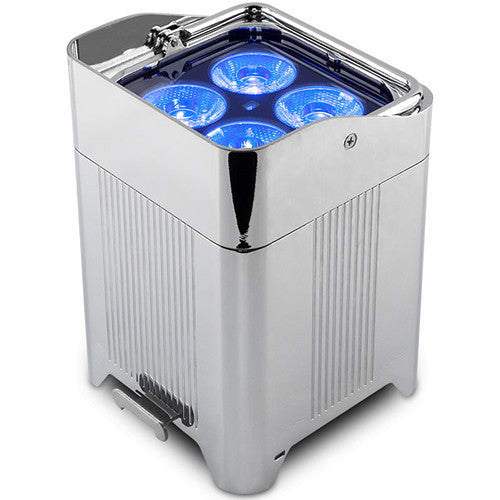

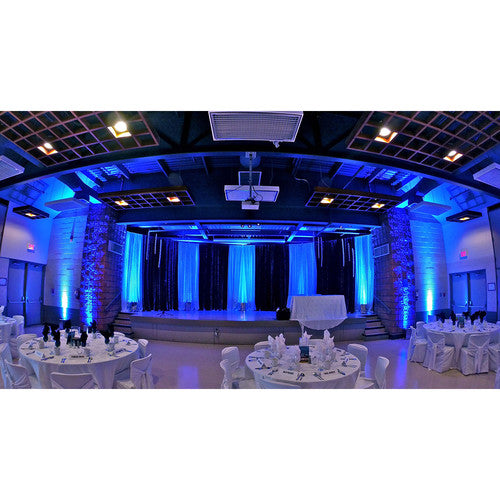

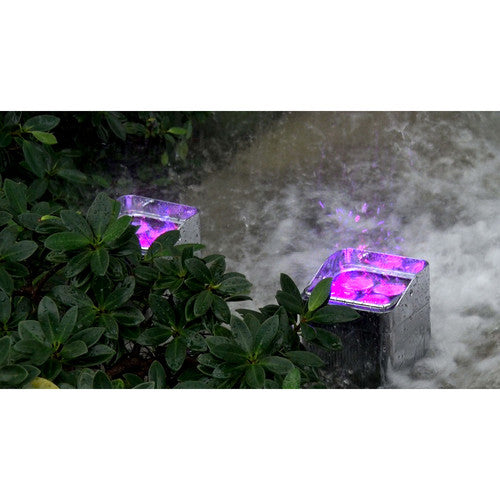

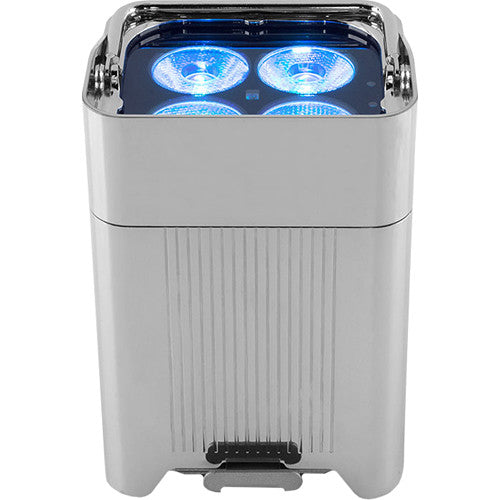

This 6-pack of CHAUVET PROFESSIONAL WELL Fit 10W Wash LED Fixtures includes a drop-in charging case for easy storage and recharging of each battery. Each WELL Fit fixture uses 4 quad-color RGBA LEDs. Each WELL Fit is battery powered and features a reflective chrome housing that blends into virtually any decor. Each fixture can be controlled wirelessly by either W-DMX or by an included IR remote. Alternatively, they can be controlled manually from the OLED display on the bottom of the fixtures. This WELL Fit 6-pack is suitable for distinguished accent lighting, particularly uplighting, and sets up quickly.
Uses 4 high-powered, quad-color RGBA LEDs
Powered by a Li-ion battery; 8 hours of operation with all LEDs on and 20 hours with single LED on
Can be controlled wirelessly either by W-DMX or included IR remote
Drop-in charging case for easy storage and recharging of the battery
Chrome exterior blends into the surroundings
Built-in automated programs can be recalled by IR, WDMX, or manually
Standalone color mixing and color temperature presets
M12-threaded insert for easy clamp installation
Kensington lock for security
IP65 rated
Key Specs
Fixture Type
PAR
Light Source
4x Color LED - 10 W / 720 mA
Colors
Red, Green, Blue, Amber
Beam Angle
11°
Control Protocols
DMX512, W-DMX
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 48 W / 0.44 A
230 VAC, 50 Hz: 288 W / 2.44 A
Mounting
Floor Base, M12 Threaded
Light
Fixture Type
PAR
Light Source
4x Color LED - 10 W / 720 mA
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue, Amber
Photometrics
74 fc / 800 Lux at 16.4' / 5 m
Beam Angle
11°
Field Angle
18°
Shutter / Strobe
Electronic
Dimming
Electronic, 0 to 100% with 4 Dimmer Modes
Performance
Operating Modes
Automatic, DMX, Primary/Secondary, Standalone
Macros / Programs
5x Color Macro
Effects
No
Gobos
No
Control
Control Protocols
DMX512, W-DMX
DMX Channel Modes
4 Mode(s):
3 / 4 / 6 / 10-Channel
Display / Controls
OLED / 4-Button
Remote Control
IR Remote (with Included Equipment)
Inputs/Outputs
No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: powerCON
Output: None
Plug Type: NEMA 5-15
Fuse
T 5 A 250 V
Power / Current Consumption
120 VAC, 60 Hz: 48 W / 0.44 A
230 VAC, 50 Hz: 288 W / 2.44 A
Power Linking
3 Units at 120 VAC
5 Units at 230 VAC
Battery Type
14.8 V Lithium-Ion
Battery Capacity
11,000 mAh
Approximate Battery Life
All On: Up to 8 Hours
Single Color: Up to 20 Hours
Battery Charging Time
5 Hours
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Physical
Mounting
Floor Base, M12 Threaded
Duty Cycle
No
Exterior Color
Silver
Dimensions
8 x 5.7 x 5.4" / 20.32 x 14.48 x 13.72 cm (Each Light)
21.2 x 20.4 x 18.5" / 53.85 x 51.82 x 46.99 cm (Charging Case)
Weight
7.4 lb / 3.4 kg (Each Light)
103.6 lb / 47 kg (System)
Packaging Info
Package Weight
108 lb
Box Dimensions (LxWxH)
21.5 x 21.5 x 19.25"
