Description
Includes: PowerCON Power Cord Control: 3-pin DMX, 5-pin DMX

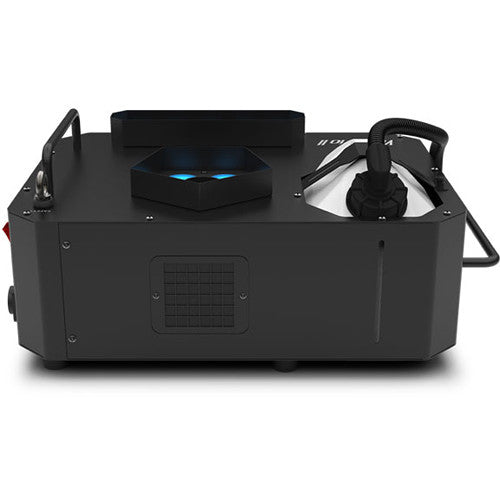

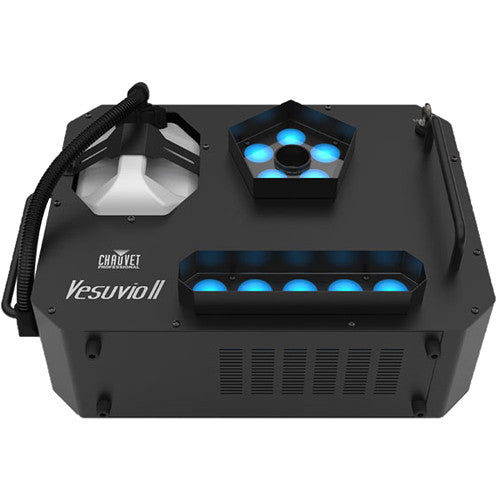

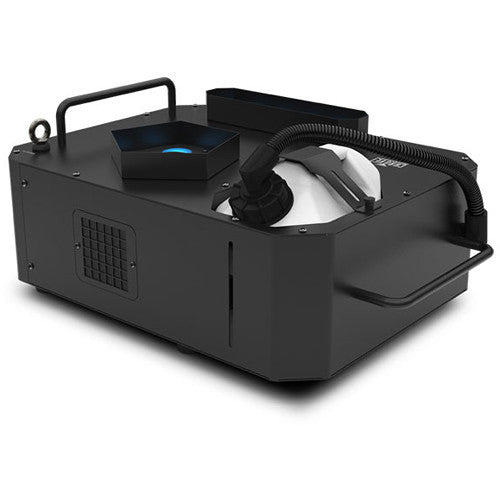

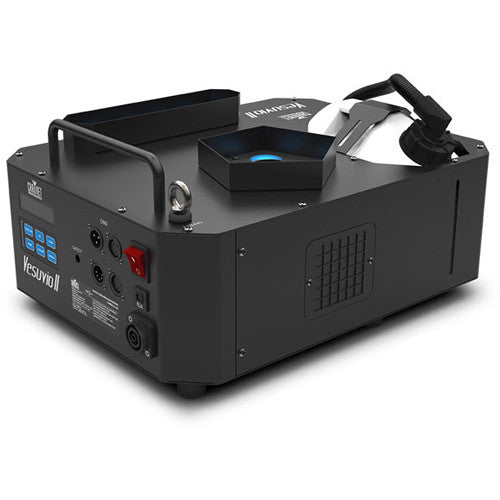

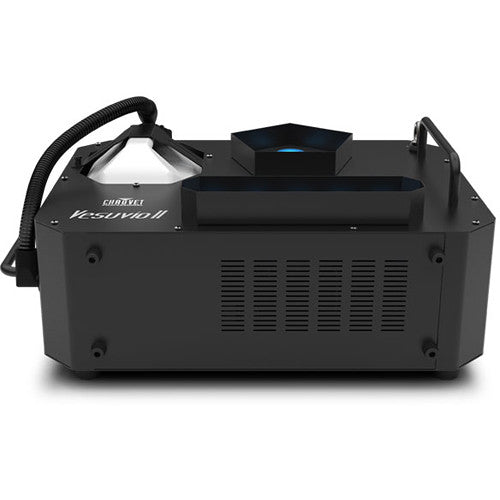

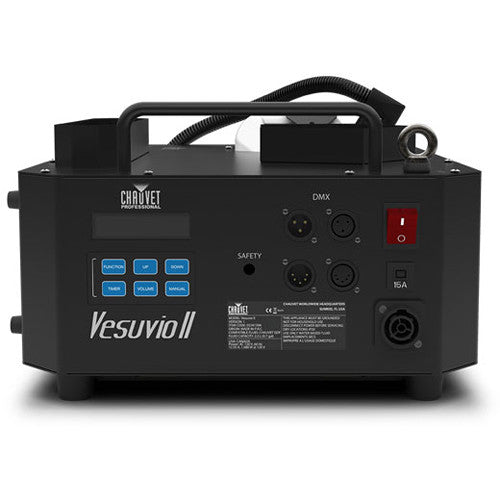

The Vesuvio II RGBA+UV LED Illuminated Fog Machine from CHAUVET PROFESSIONAL illuminates bursts of fog with advanced red, green, blue, amber, and UV LED color mixing, providing dramatic effects for events and performances. Featuring 40,000 cubic feet of fog per minute, the machine boasts 40 seconds of full burst output. Dual LED sections give greater creative control for a more even coverage of light.
General
Compatibility
Not Specified by Manufacturer
Illumination Source
Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 Hours Life Expectancy
Illuminance (Center): 199.5 Lux at 16.4' / 5.0 m
Illuminance (Linear): 154 Lux at 16.4' / 5.0 m
Illuminance (Both): 334 Lux at 16.4' / 5.0 m
PWM Frequency: 126 Hz
Effects
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Output: 40,000 cfm
Low Fluid Shutdown: No
Capacity
Tank Capacity: 0.7 Gallon / 2.5 Liter
Consumption
80 mL per Minute
Run Time
Maximum Run Time: 1 Hour at 40 sec Bursts, 1-Minute Intervals (Using Chauvet QDF Fluid)
Maximum Run time: 2 Hours at 40 sec Bursts, 2-Minute Intervals (Using Chauvet QDF Fluid)
Maximum Run time: 2.5 Hours at 40 sec Bursts, 3-Minute Intervals (Using Chauvet QDF Fluid)
Control
Control Protocol: DMX
DMX Channels: 15
Modes/Personalities: 1 Personalities
Onboard Control: Yes
Included Remote: No
Display
Panel Type
LCD
Display Size
Not Specified by Manufacturer
Touchscreen
No
Power
Power Source
AC Input (Included)
AC Input Power
120 VAC, 60 Hz
Power Consumption
1480 W (Maximum)
Operating Current
12.55 A (Maximum)
Power
Power Connection: Edison Plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Physical
Mounting
2 x Omega Bracket
Color
Black
Material of Construction
Steel
Cable Length
5' / 1.5 m
Dimensions
19.5 x 13.2 x 9.4" / 49.5 x 33.5 x 23.9 cm
Weight
28.4 lb / 12.9 kg
Packaging Info
Package Weight
35.45 lb
Box Dimensions (LxWxH)
14.5 x 11.9 x 5.6"
The Vesuvio II is built for efficiency, consuming 80 mL/minute of QDF fluid. This highly versatile unit can run vertically, horizontally, or overhead with the included mounting brackets. It works best with either Chauvet HDF high-density or QDF quick-dissipating fluid (sold separately).
0.7 gallon fluid tank for reliability in production
Strong, sturdy construction for numerous production types
DMX control for ease of use in production situations
3- and 5-pin DMX input/output connections
