Description

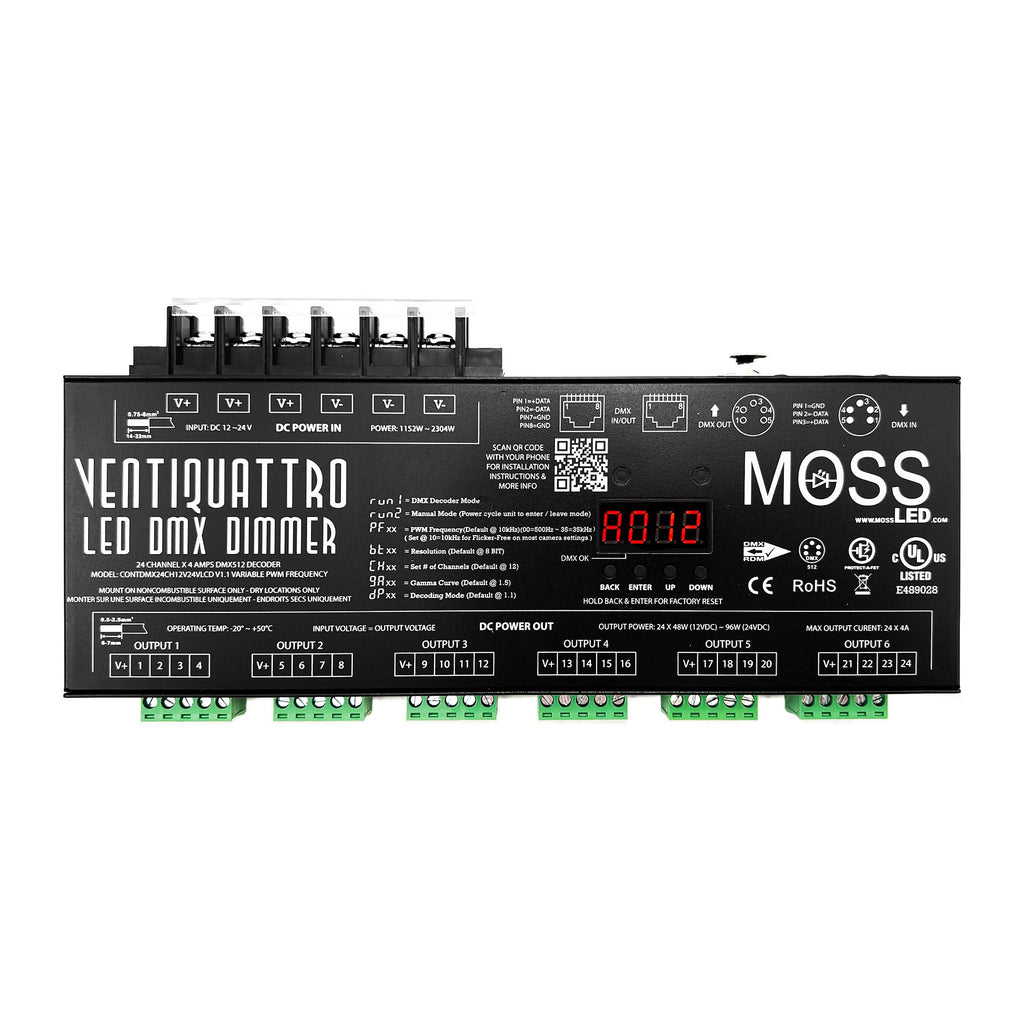

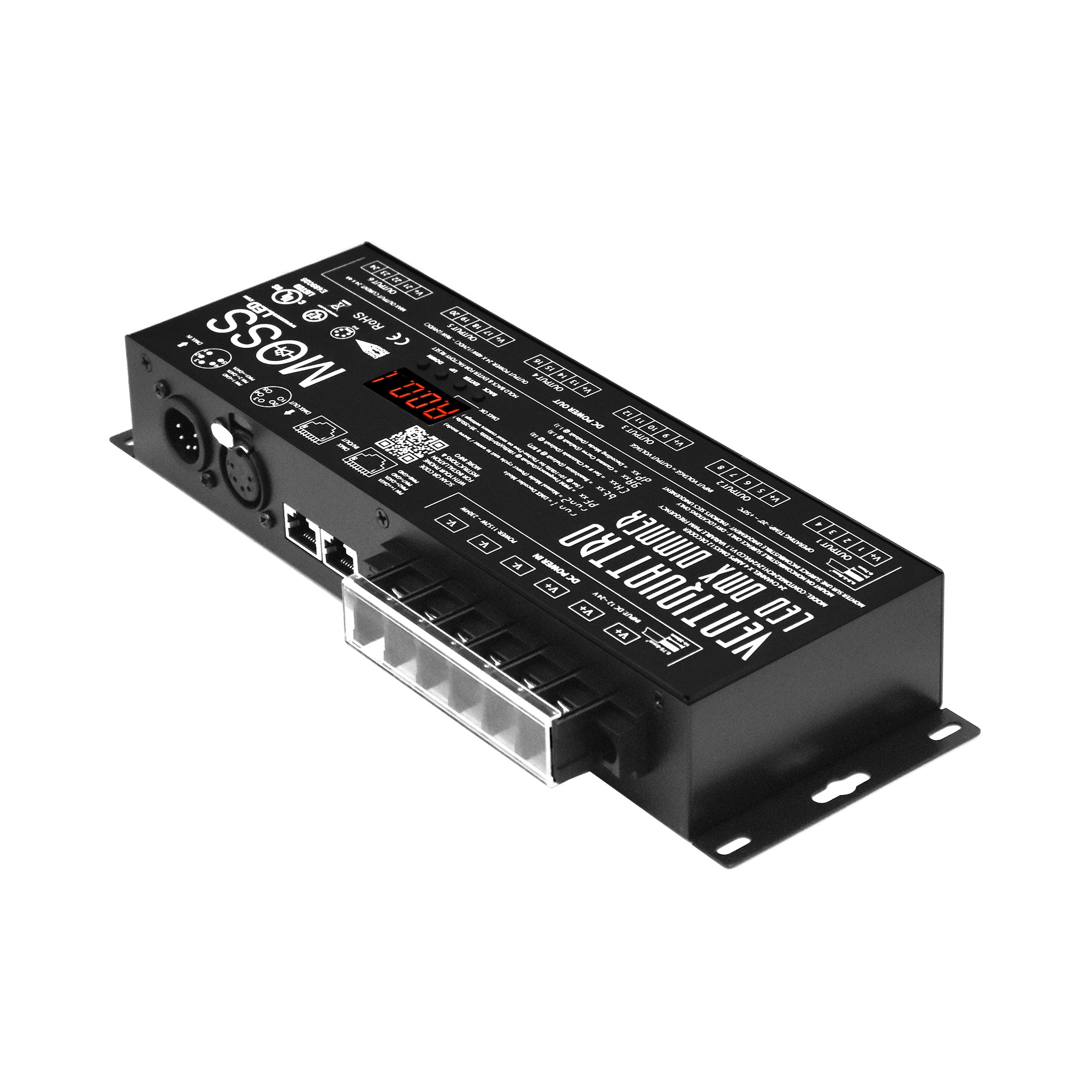

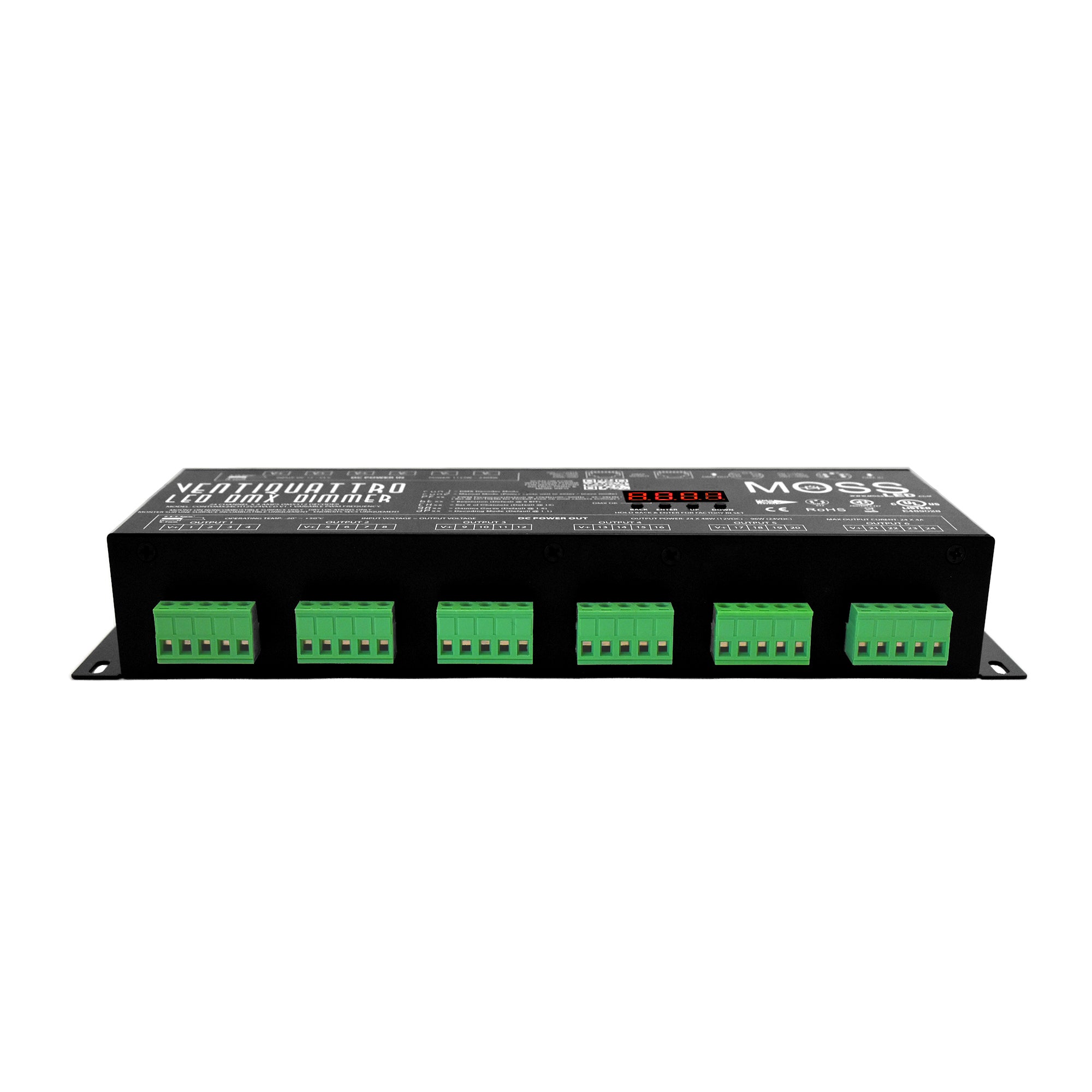

The VentiQuattro-LED DMX Dimmer is a cutting-edge, 24-channel standalone DMX controller, delivering high-precision dimming and advanced protection for film, television, theatrical, and architectural lighting applications. Featuring the latest Protect-A-Fet™ technology, it provides short circuit protection on each output, ensuring uninterrupted operation with no internal damage. With 96A total power handling and a rugged metal housing, this dimmer is built for high-performance lighting control in demanding environments.
Key Features:
24-Channel DMX Dimming – Converts DMX-512/1990 signals into precise multi-channel LED control.
High Power Capacity – Supports 96A total output (24 x 4A per channel).
Protect-A-Fet™ Short Circuit Protection – Ensures safe, damage-free operation with quick reset capability.
Adjustable PWM Frequency – 500Hz to 35kHz for flicker-free performance at all camera settings.
New Firmware V1.1 (2020) – Adjust PWM frequency via RDM, with default set to 10kHz.
8-bit & 16-bit Resolution Modes – Enables smooth, precise dimming and accurate colour transitions.
Customizable Gamma Curve – Fine-tune dimming response for optimized low-end or high-end precision.

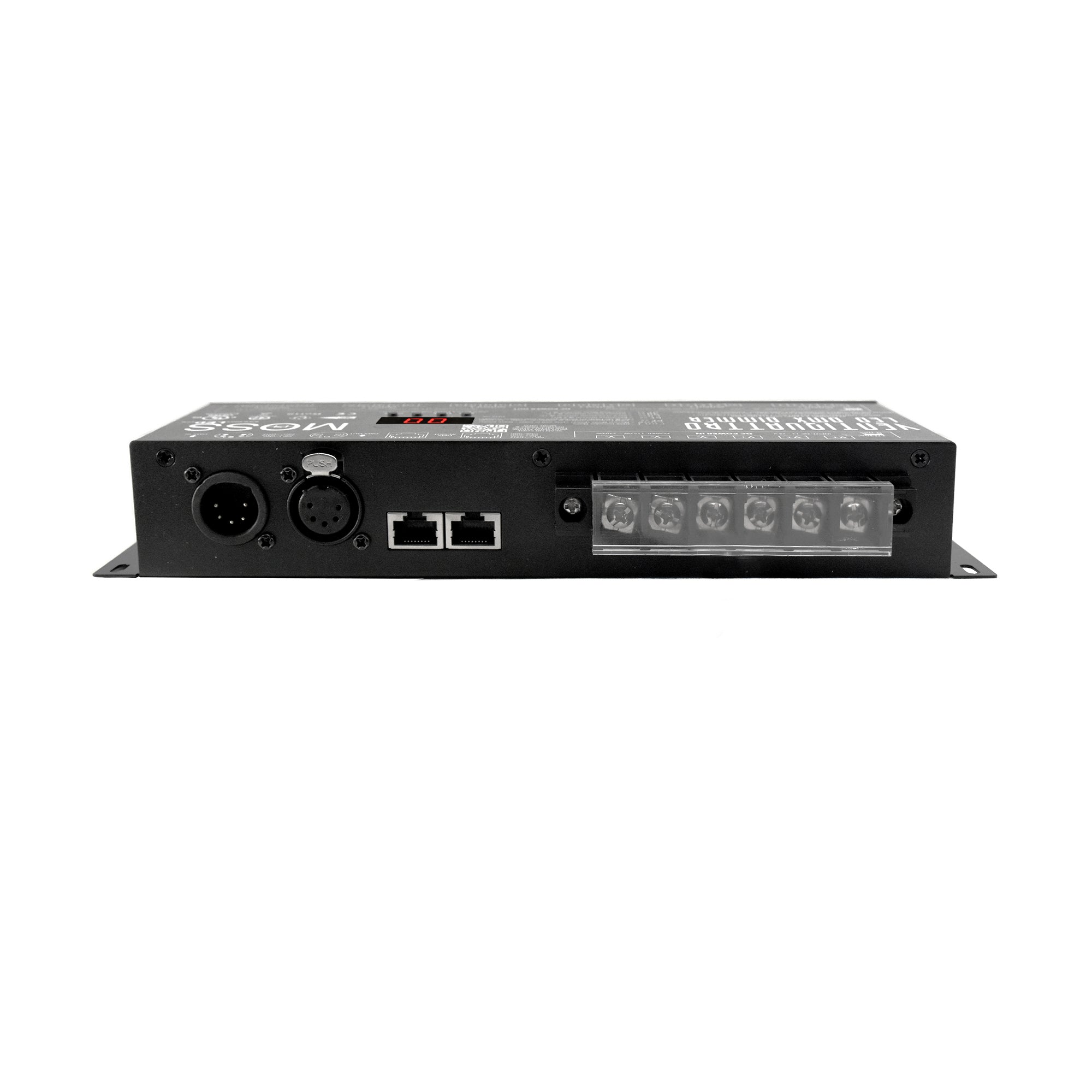

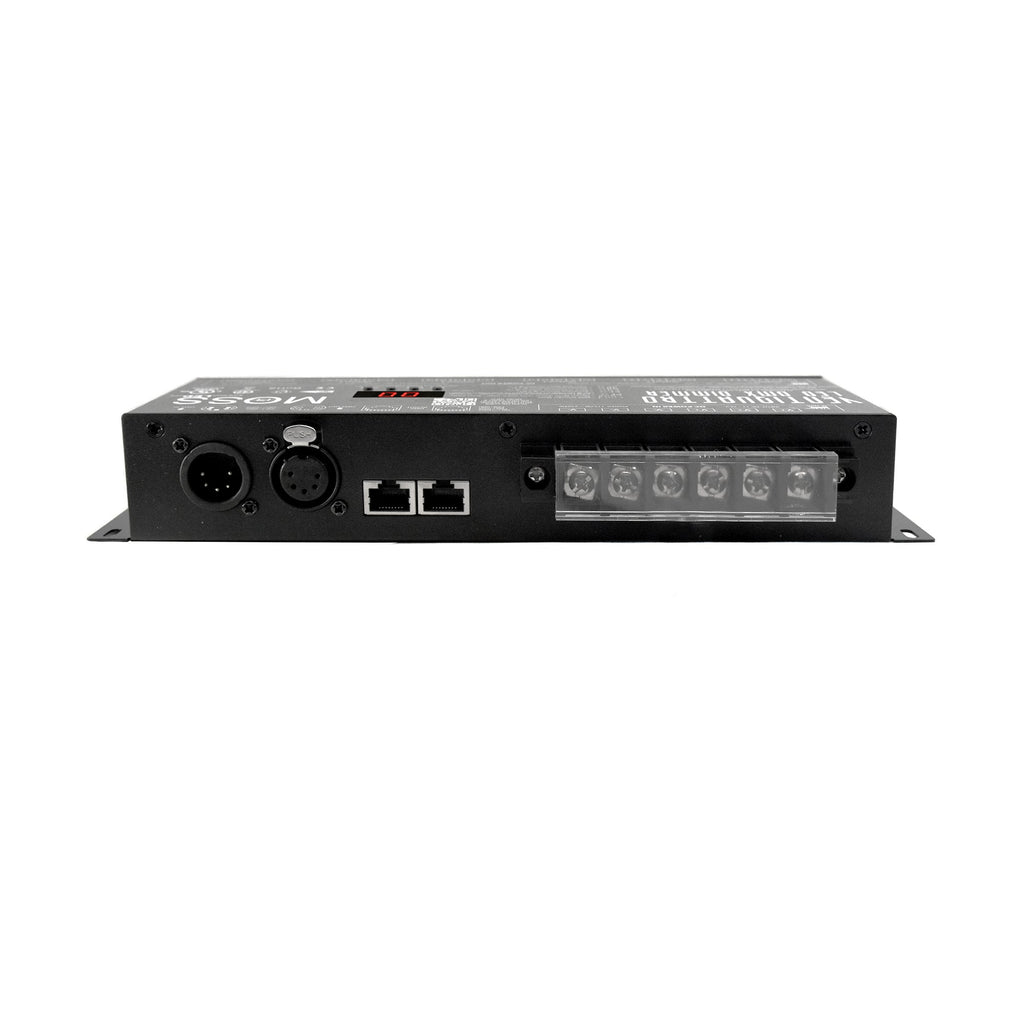

Industry-Standard DMX Connectivity – Uses 5-pin XLR and RJ45 Ethernet in/out for seamless control integration.
Flexible Power Configurations – Allows grouping of output channels for increased power per channel.
Easy-to-Read LED Display – Enables quick DMX addressing, manual mode, and test control functions.
Compatible with Constant Voltage FlexLED Tape & Modules – Works with RGBA, RGBW, RGB, Bi-Colour, and White LED strips.
The VentiQuattro-LED DMX Dimmer is the most advanced standalone LED controller, designed for high-power, precision lighting control in professional environments.
Output Current (A)
:
24 CH @ 4A/CH = Max 96A
Output Power (W)
:
1152W @ 12V / 2304W @ 24V
Supply Voltage
:
12V - 24V DC
Size (MM)
:
265 X 111.5 X 40
Working Temperature
:
-20°C to + 70 °C
Weight
:
970g
PWM Frequency
:
500Hz to 35kHz
IP Rating
:
IP40
Flicker Free
:
YES
Bit Rate
:
8 Bit & 16 Bit
