Description
- Capture SD/HD/3G/ 2K SDI + embedded audio
- Loop-through SD/HD/3G/2K SDI
- Audio input via Line in
- Extract SDI embedded audio and output via Line out
Interface

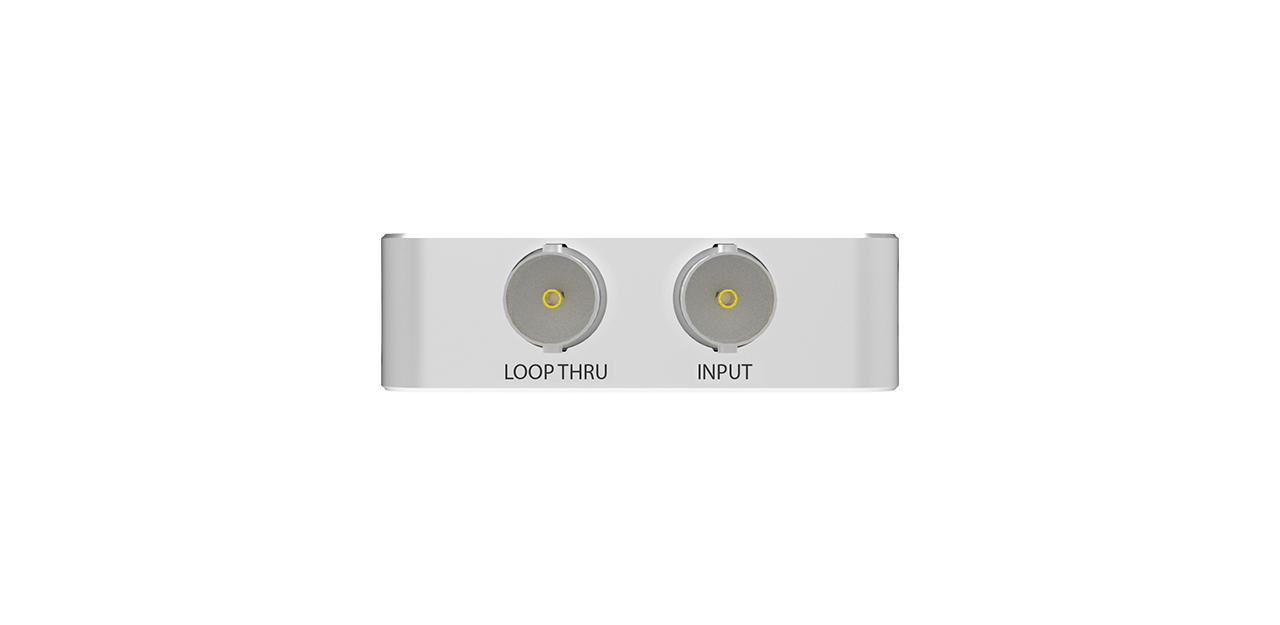

Input Interface & Loop-through Interface
- One SD/HD/3G/2K SDI input + embedded audio
- One SDI loop-through
- Support input & loop-through resolution up to 2048×1080 pixels
Audio Input/Output Interface
- 3.5mm audio jack for Line In/ Line Out Host Interface
Host Interface
- USB 3.0, compatible with USB 2.0
OS
- Windows, Linux, Mac, Chrome OS
Capture Format
- Support capture resolutions up to 2048x1080
- Support capture frame rates up to 120fps
- Capture 2-channel embedded audio or analog audio via 3.5mm unbalanced Line In interface
- Capture SDI signals transmitted a long distance away: up to 150m for 3G-SDI signals
Included Software
- USB Capture Utility, Capture Express, etc.
Compatible Software
- Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc.
Others
- Auto detection of input signal format
- Windows, Linux and Mac SDK
- Continuously work for 24hx7
- LED status indicator
- 3-year warranty
- Form factor: 110.7mm (L) x 56.8mm (W) x 17mm (H)
