Description
- Capture HDMI + embedded audio
- Loop-through HDMI signal
- Audio input via mic
- Extract HDMI embedded audio output via headphones
Interface

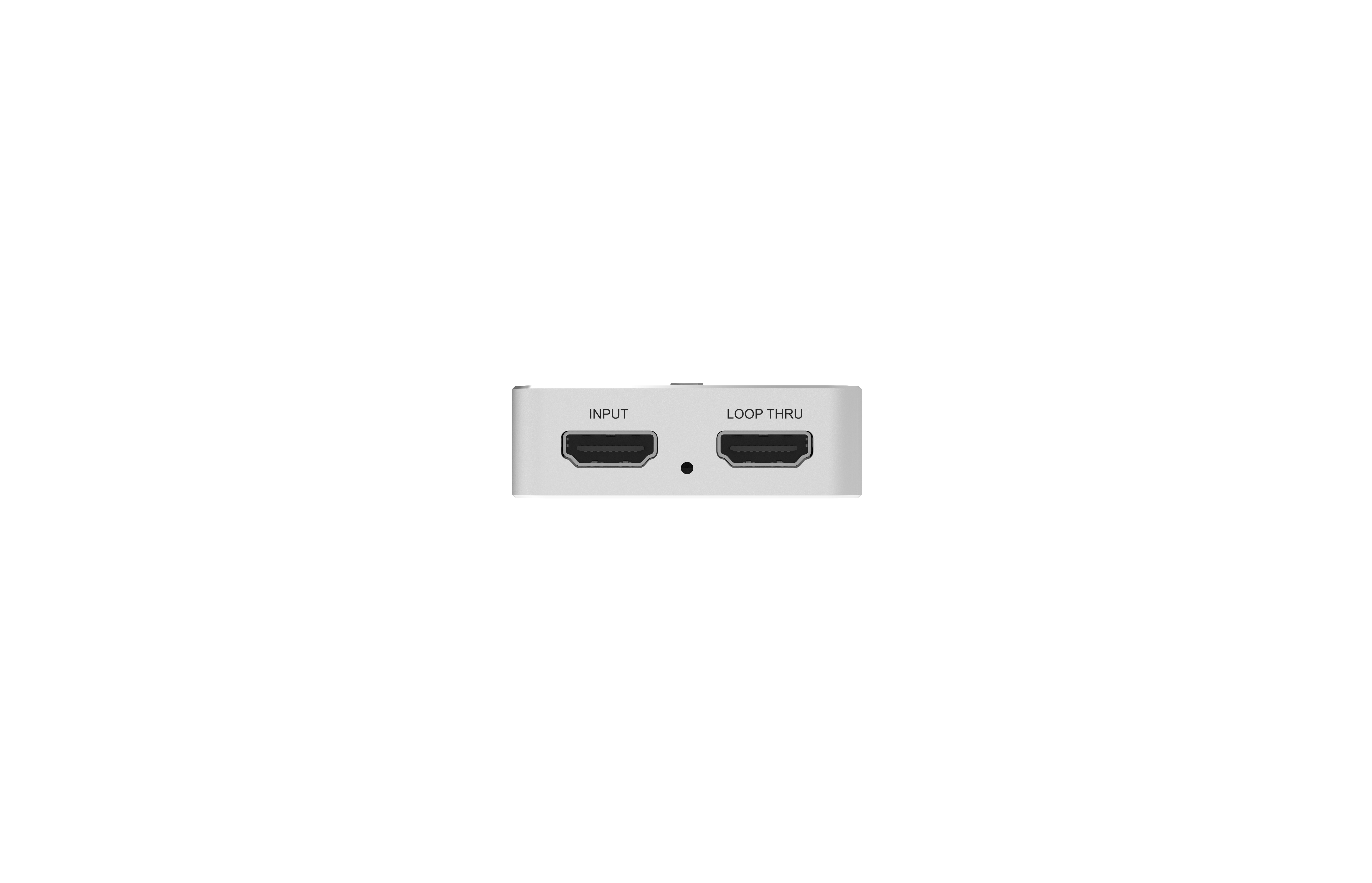

Input Interface & Loop-through Interface
- One HDMI input + embedded audio
- One HDMI loop-through
- Support input & loop-through resolution up to 4096x2160 60fps 4:4:4
Audio Input/Output Interface

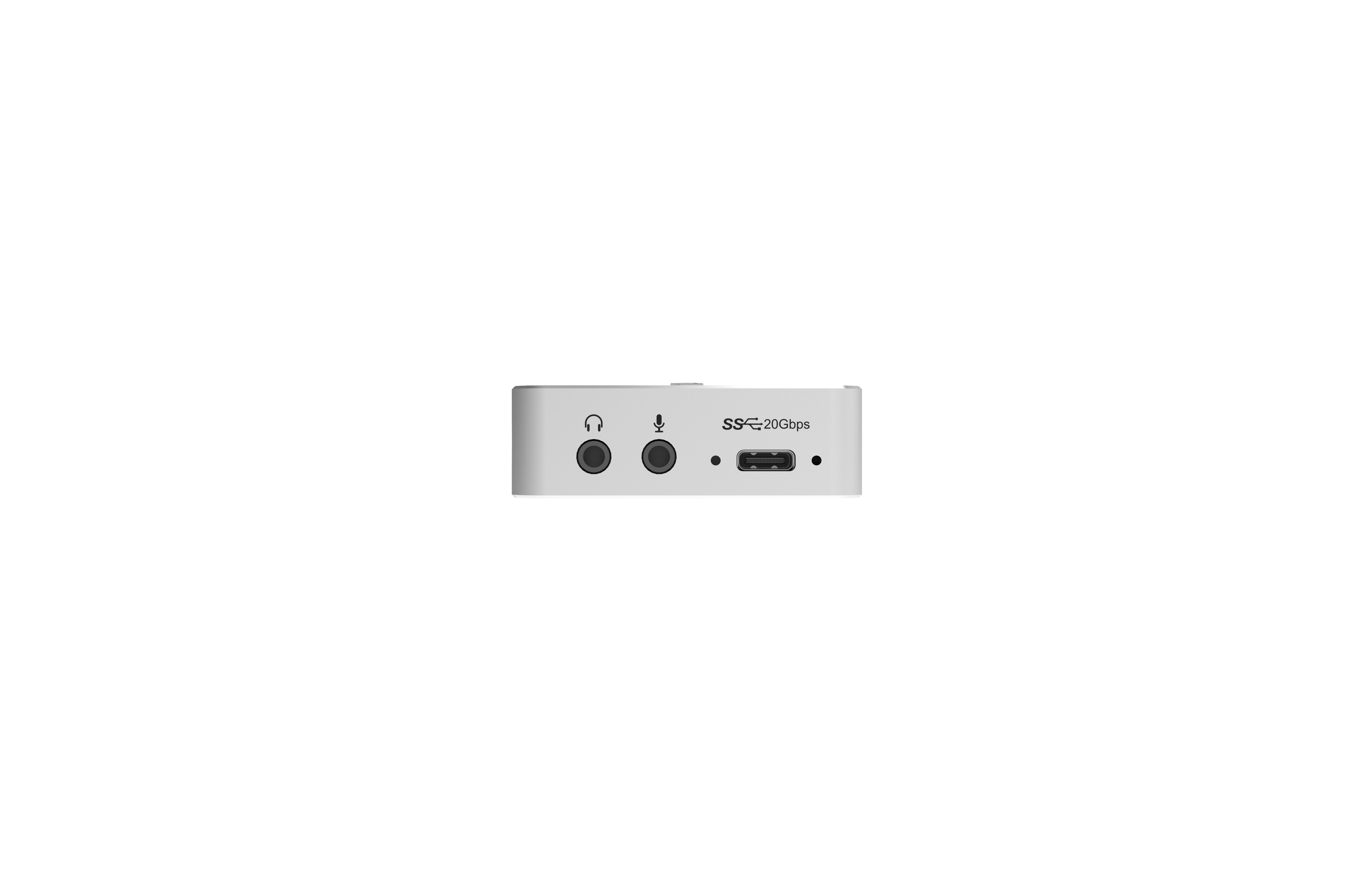

- 3.5mm audio jack for microphone/ headphones
Host Interface
- USB 3.2 Gen 2x2 up to 20G throughput
OS
- Windows, Linux, Mac, Chrome
Capture Format
- Support capture resolutions up to 4096x2160
- Support capture frame rates up to 240fps
- Capture 2-channel embedded audio or analog audio via 3.5mm microphone interface
Included Software
- USB Capture Utility, Capture Express, etc.
Others
- Auto detection of input signal format
- Integrate the functions of a USB audio card. Playback audio via 3.5mm headphones interface
- Windows, Linux and Mac SDK
- Continuously work for 24hx7
- LED status indicator
- 3-year warranty
- Form factor: 3.86 in (L) x 2.24 in (W) x 0.71 in (H) (98.1 mm x 56.8 mm x 18 mm)
