Description
Captures one of the following
- DVI + audio
- VGA + audio
- Component + audio
- HDMI + embedded audio
- Audio input via Line in
- Extract HDMI embedded audio output via Line out
Interface
Input Interface

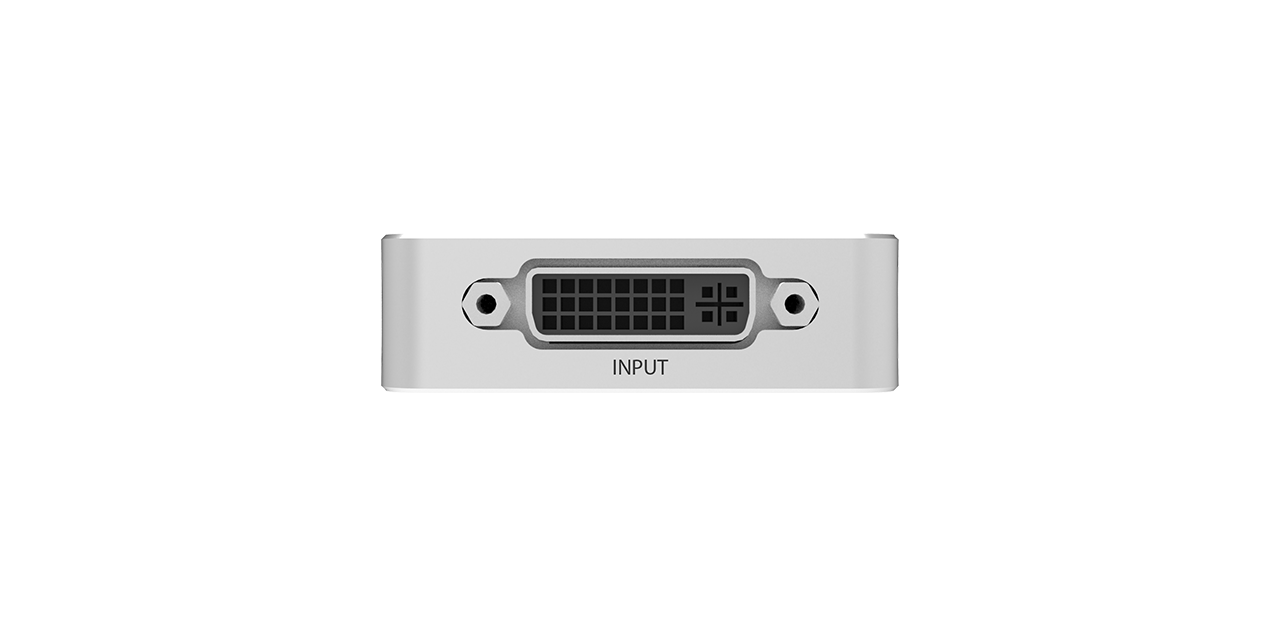

- DVI x1 (To VGA and HDMI via convertor or breakout cable)
- One video input+ embedded audio
- Support input resolution up to 2048×2160 pixels
Audio Input/Output Interface
- 3.5mm audio jack for Line In/ Line Out Host Interface
Host Interface
- USB 3.0, compatible with USB 2.0
OS
- Windows, Linux, Mac, Chrome OS
Capture Format
- Support capture resolutions up to 2048x2160
- Support capture frame rates up to 120fps
- Capture 2-channel embedded audio and unbalanced analog audio
Included Software
- USB Capture Utility, Capture Express, etc.
Compatible Software
- Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc.
Others
- Auto detection of input signal format
- Windows, Linux and Mac SDK
- Continuously work for 24hx7
- LED status indicator
- 3-year warranty
- Form factor:101.5mm (L) x 56.8mm (W) x 17mm (H)
