Description

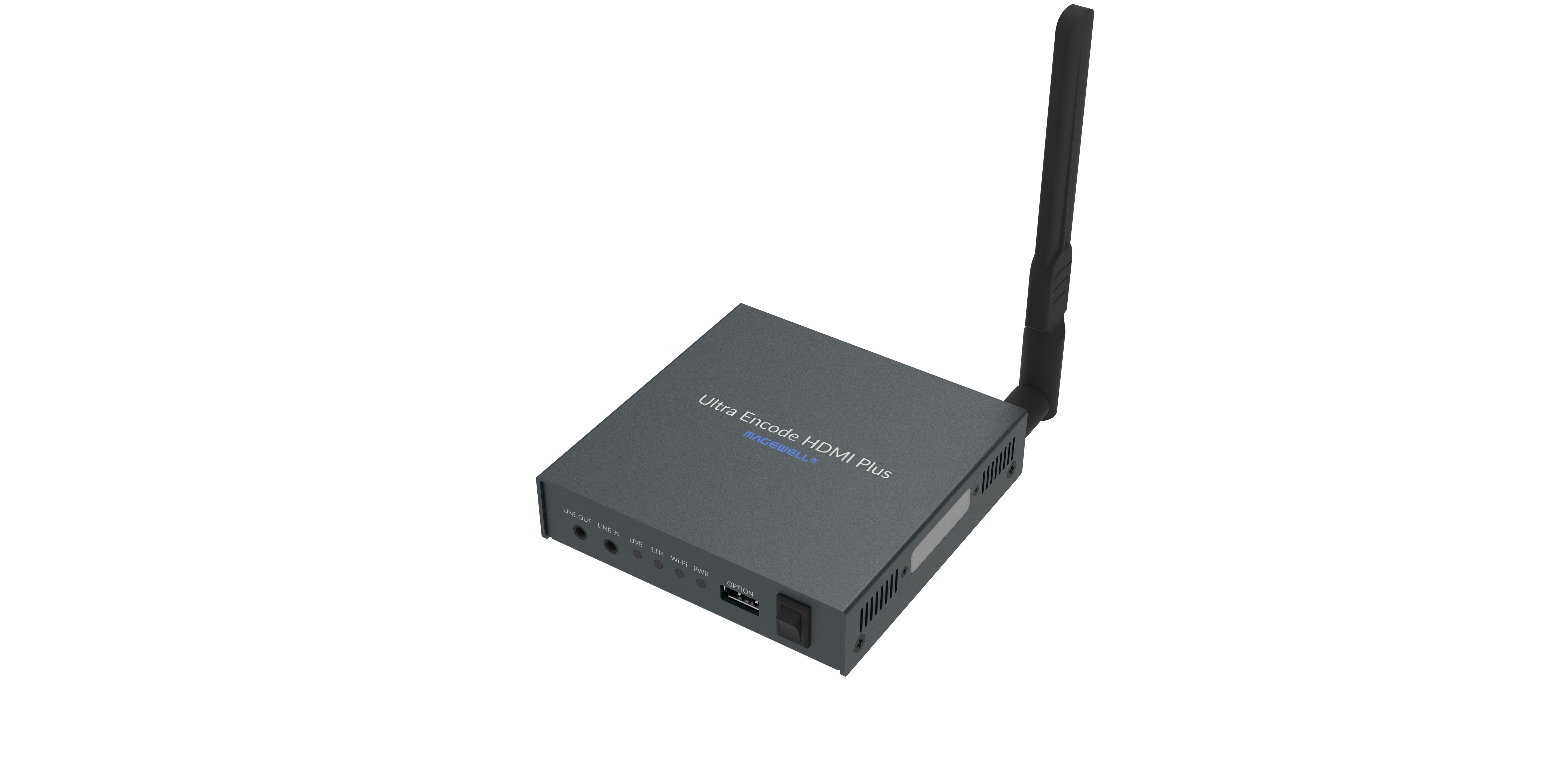

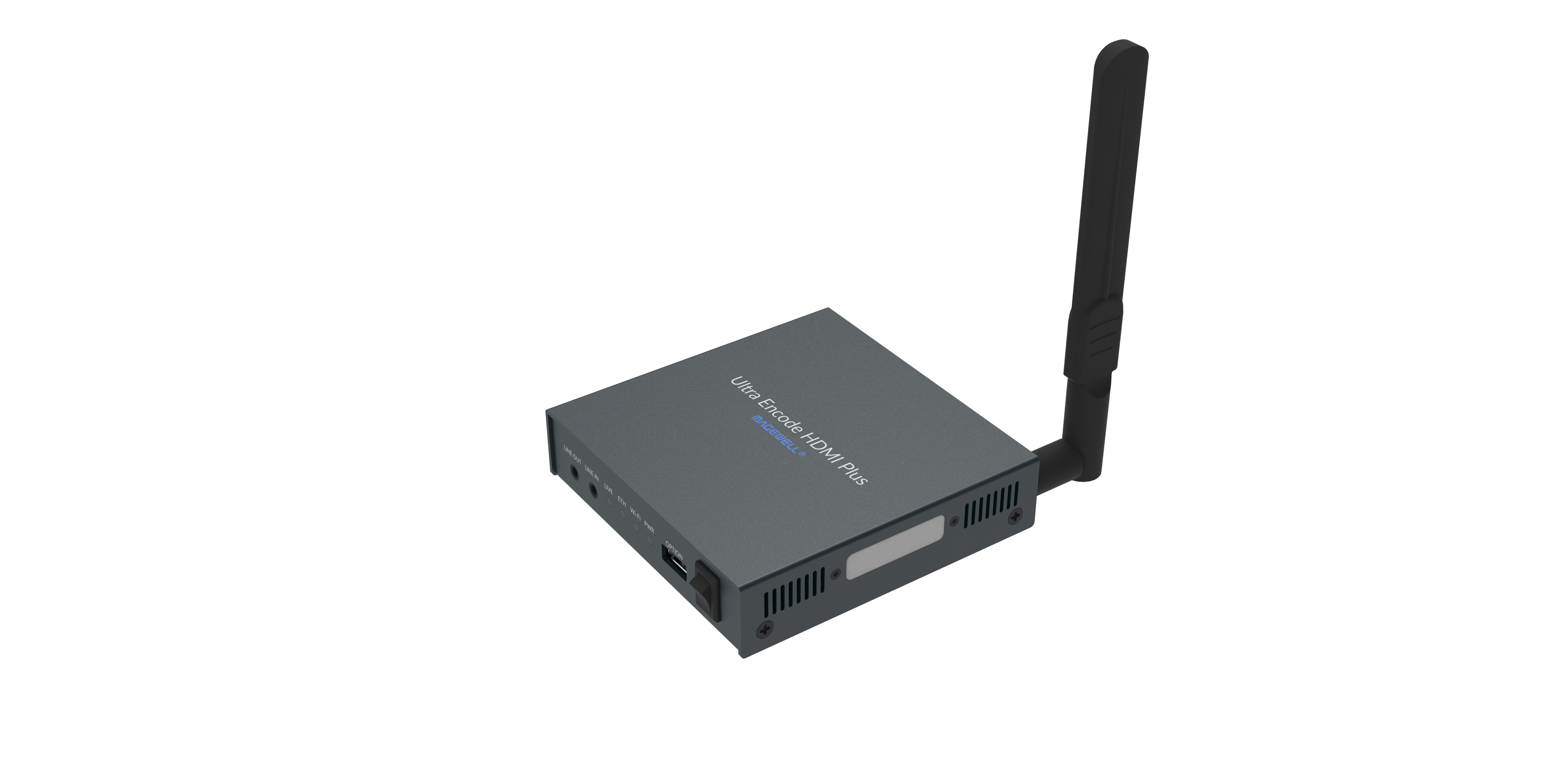

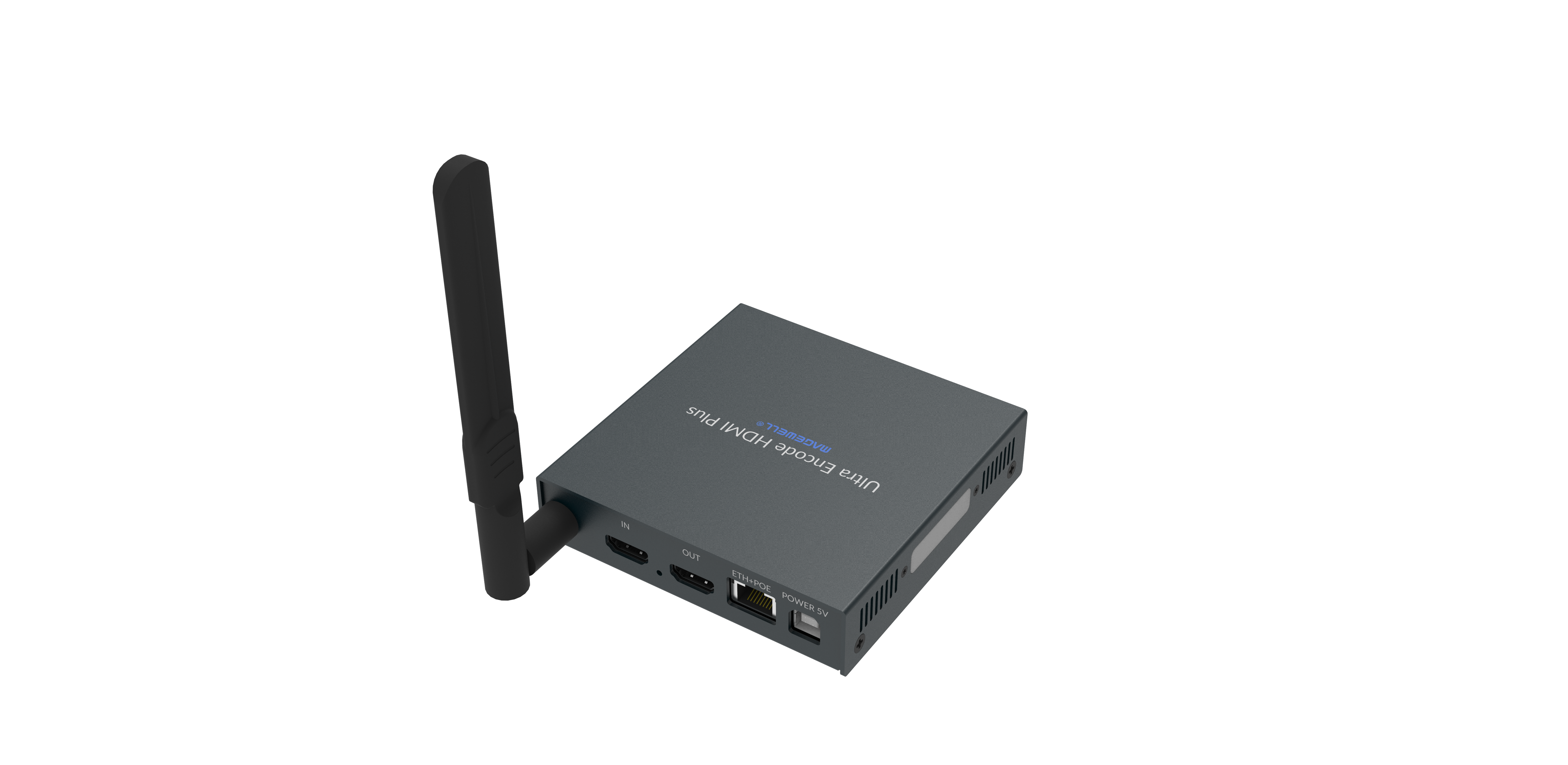

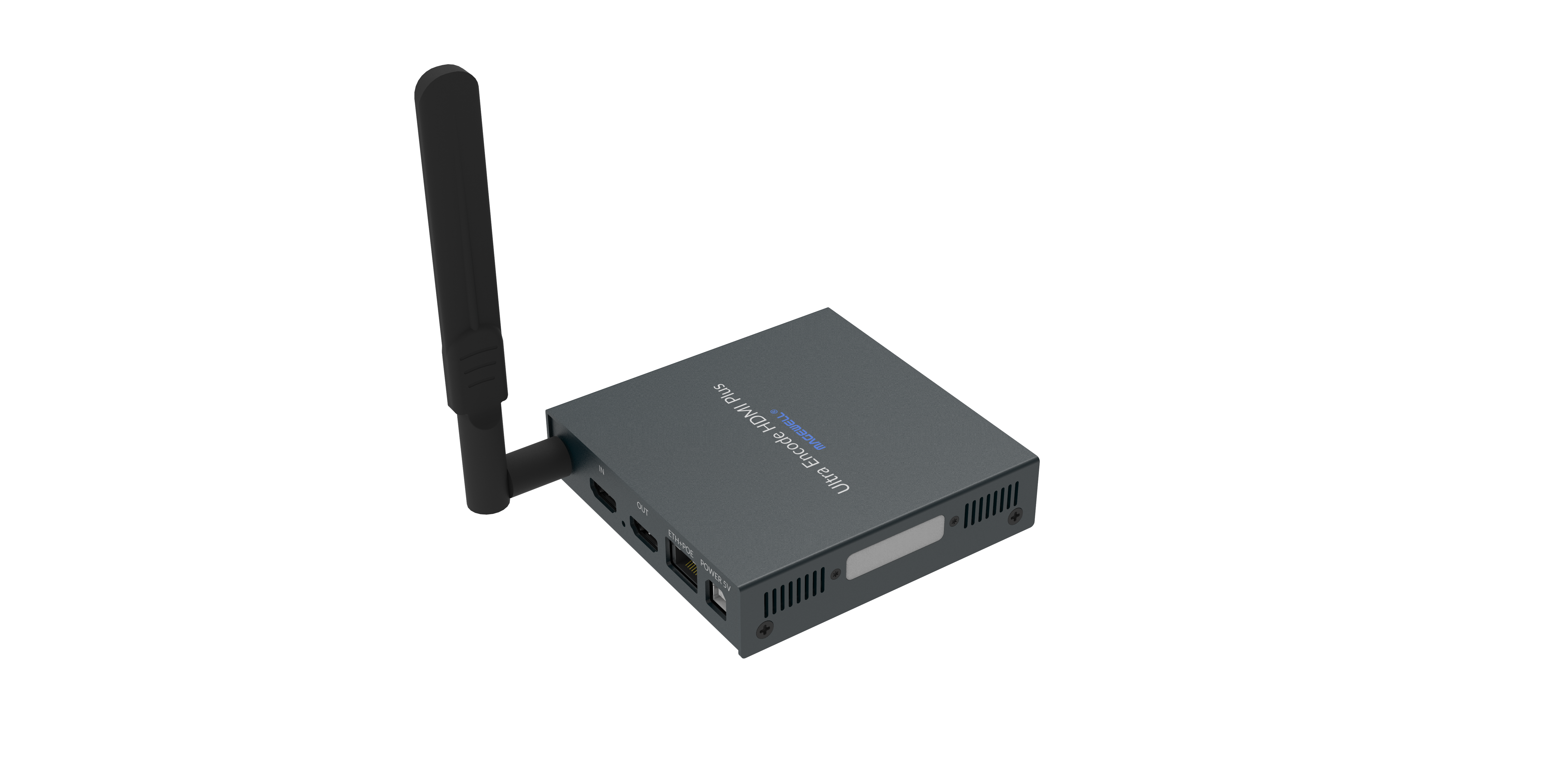

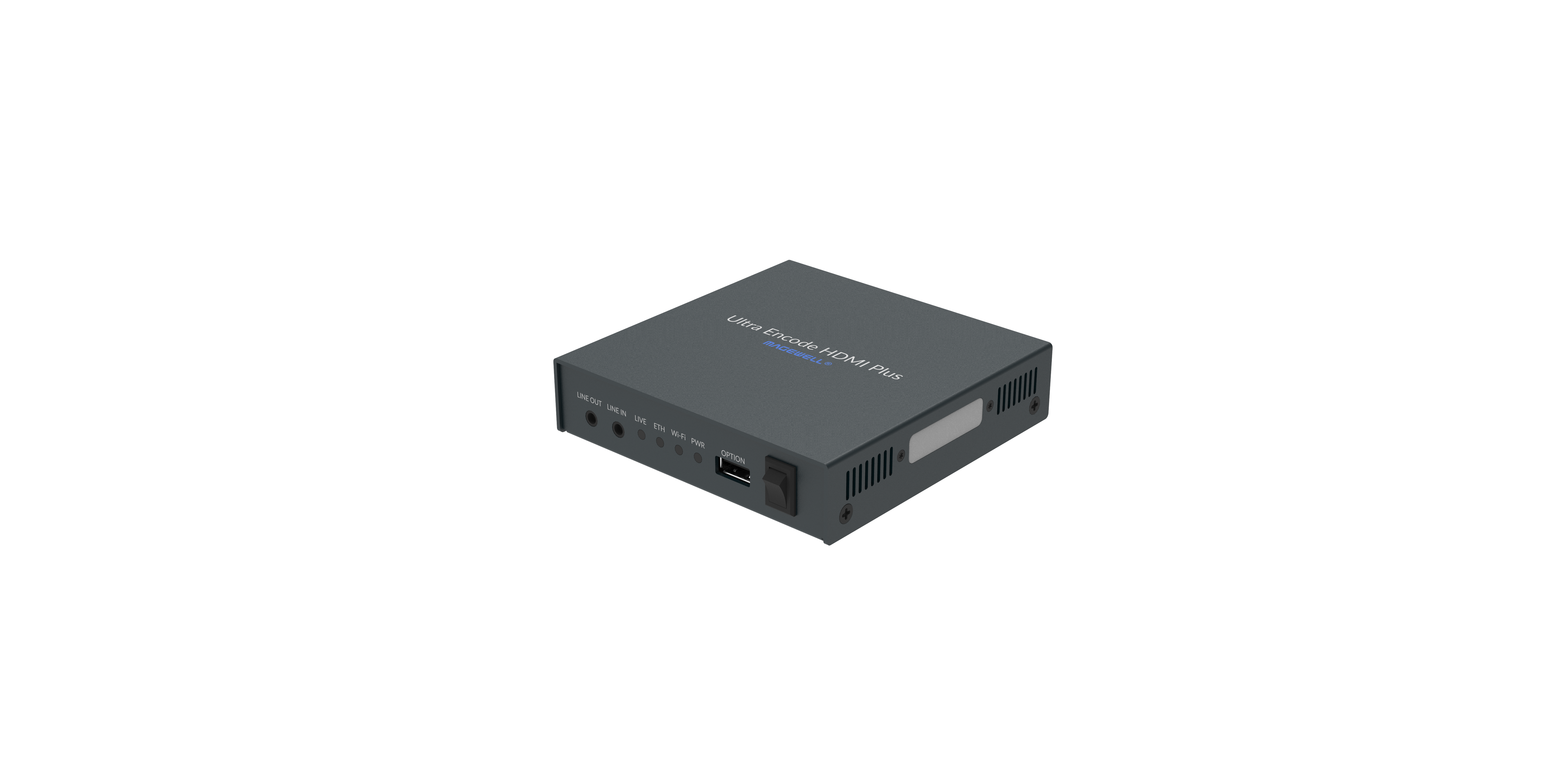

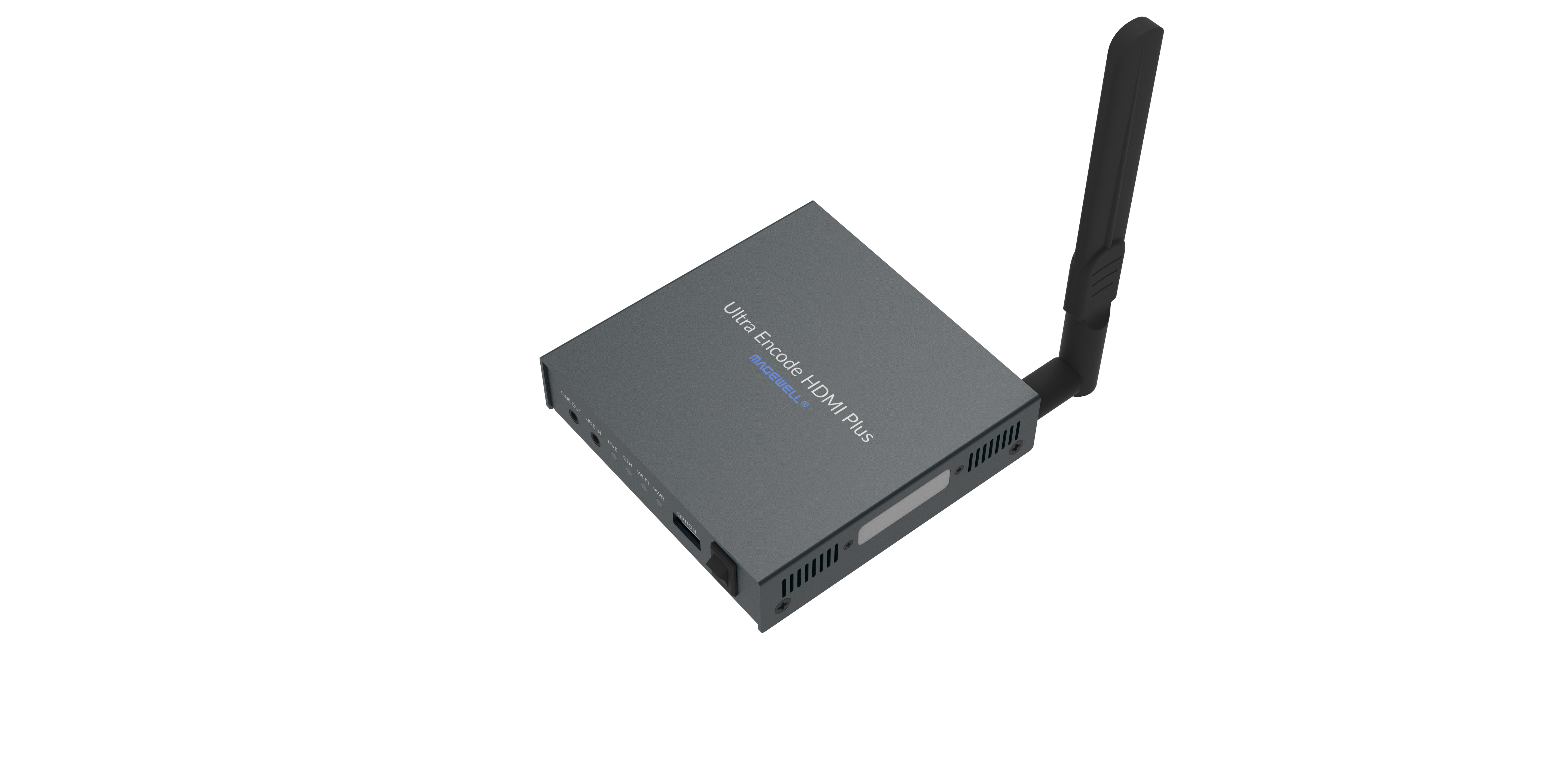

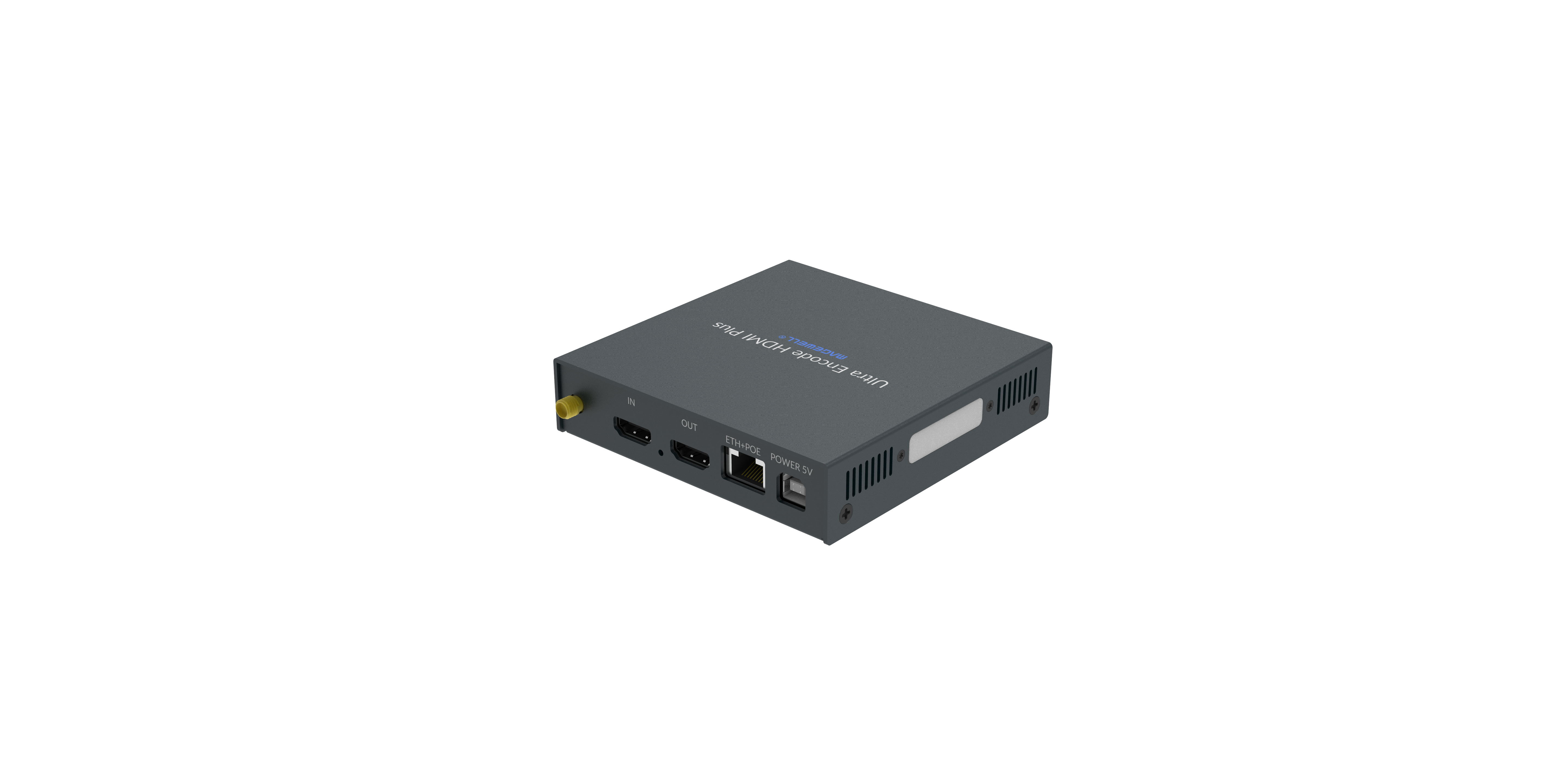

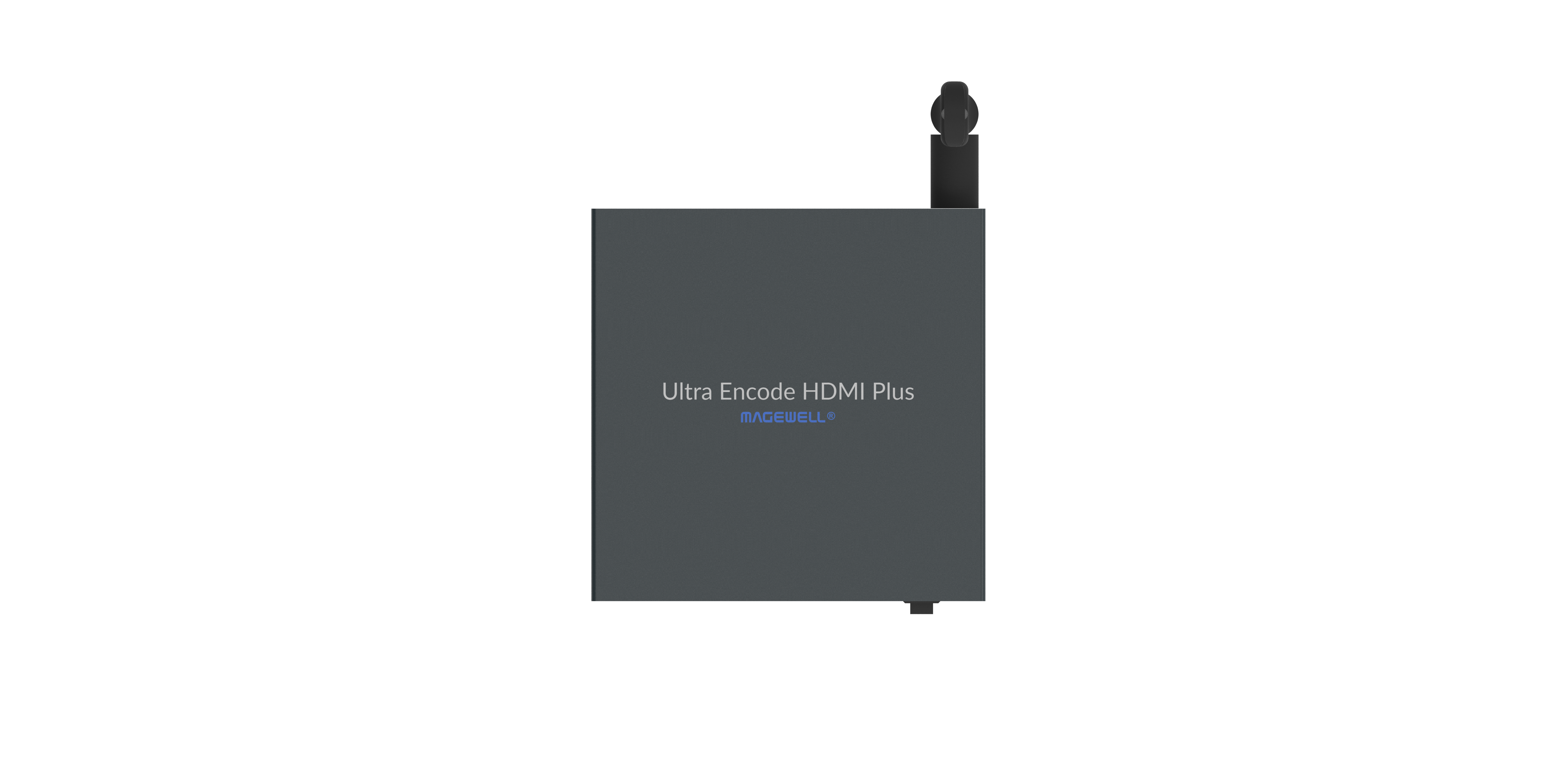

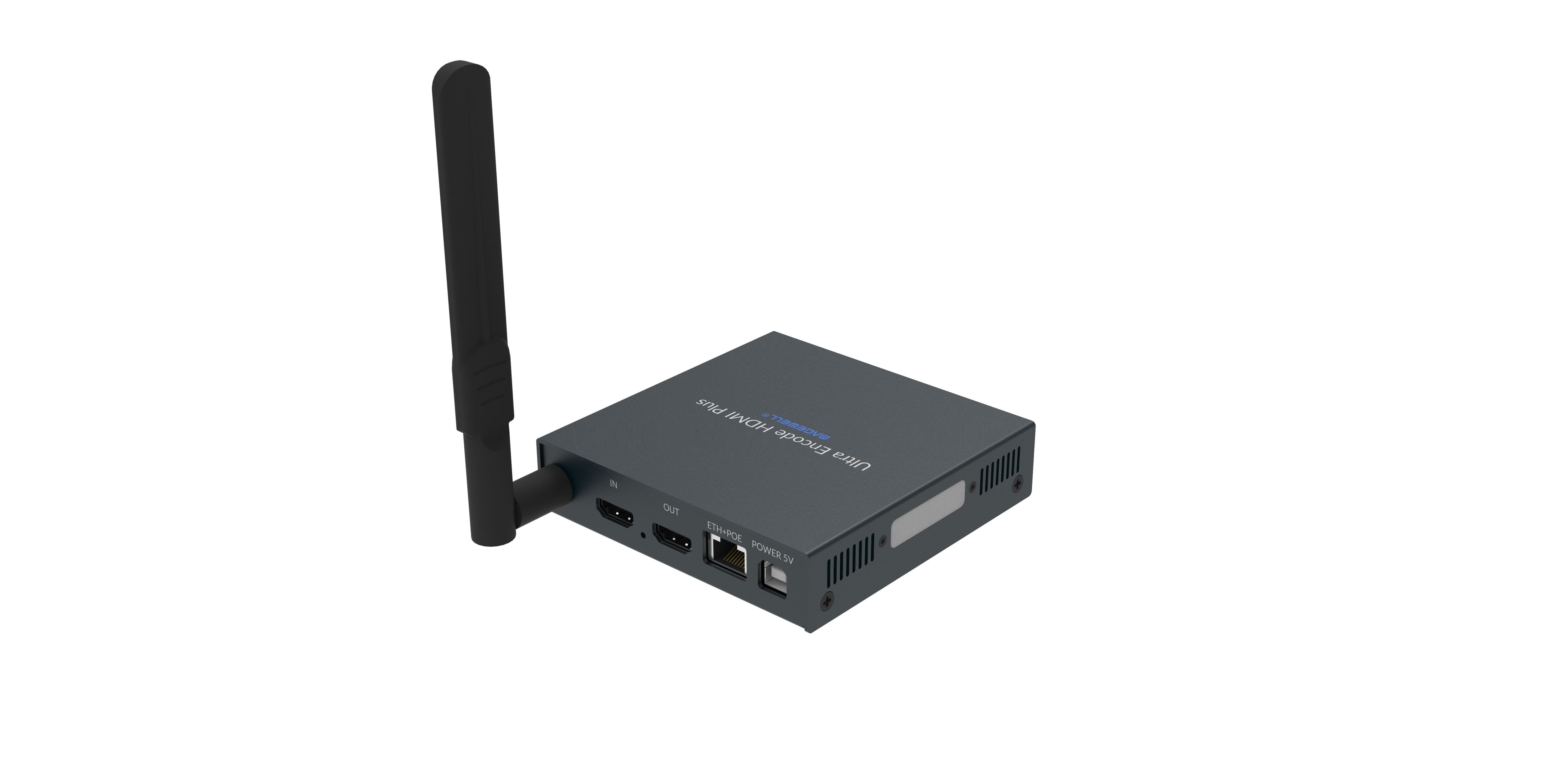

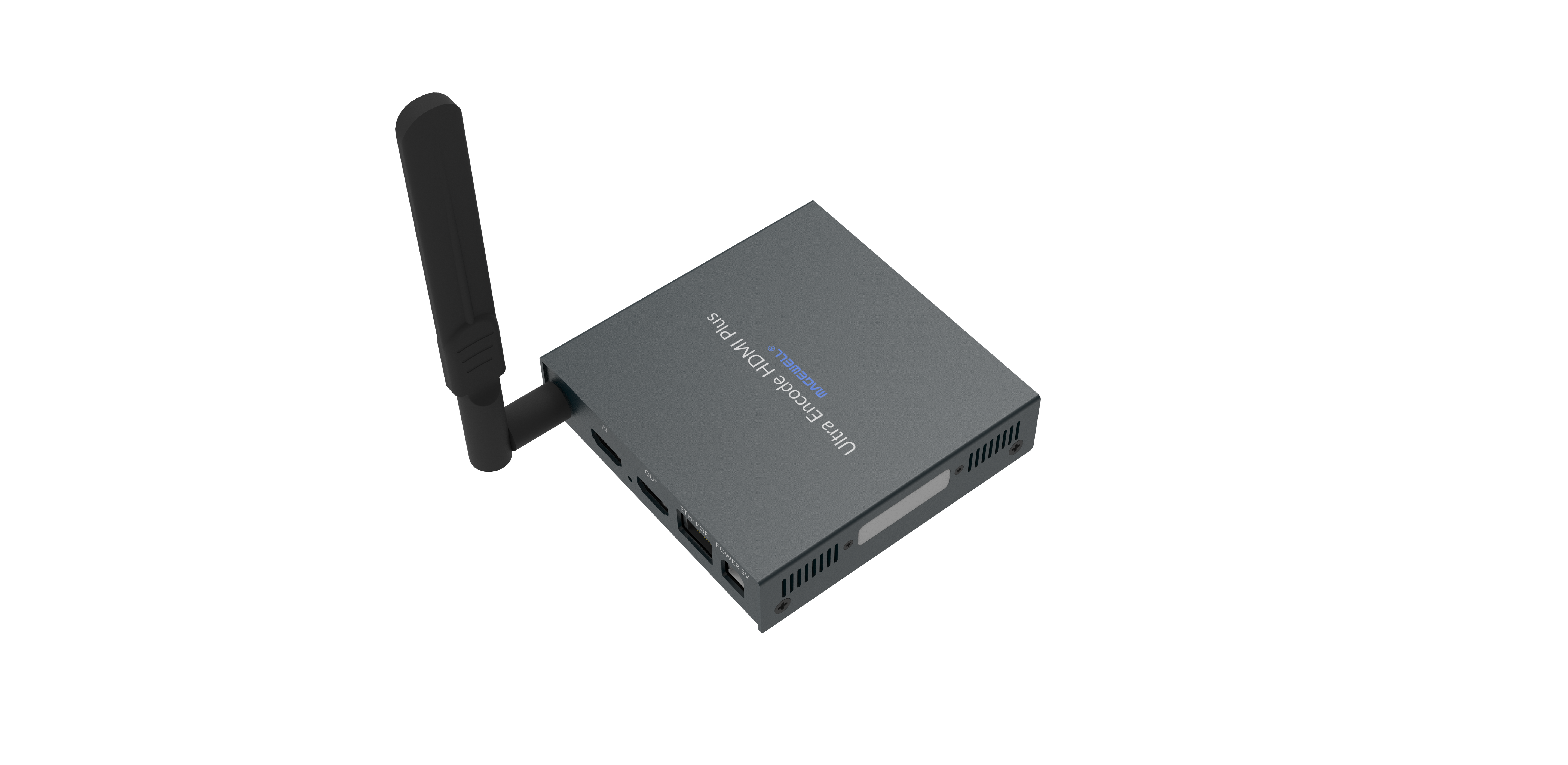

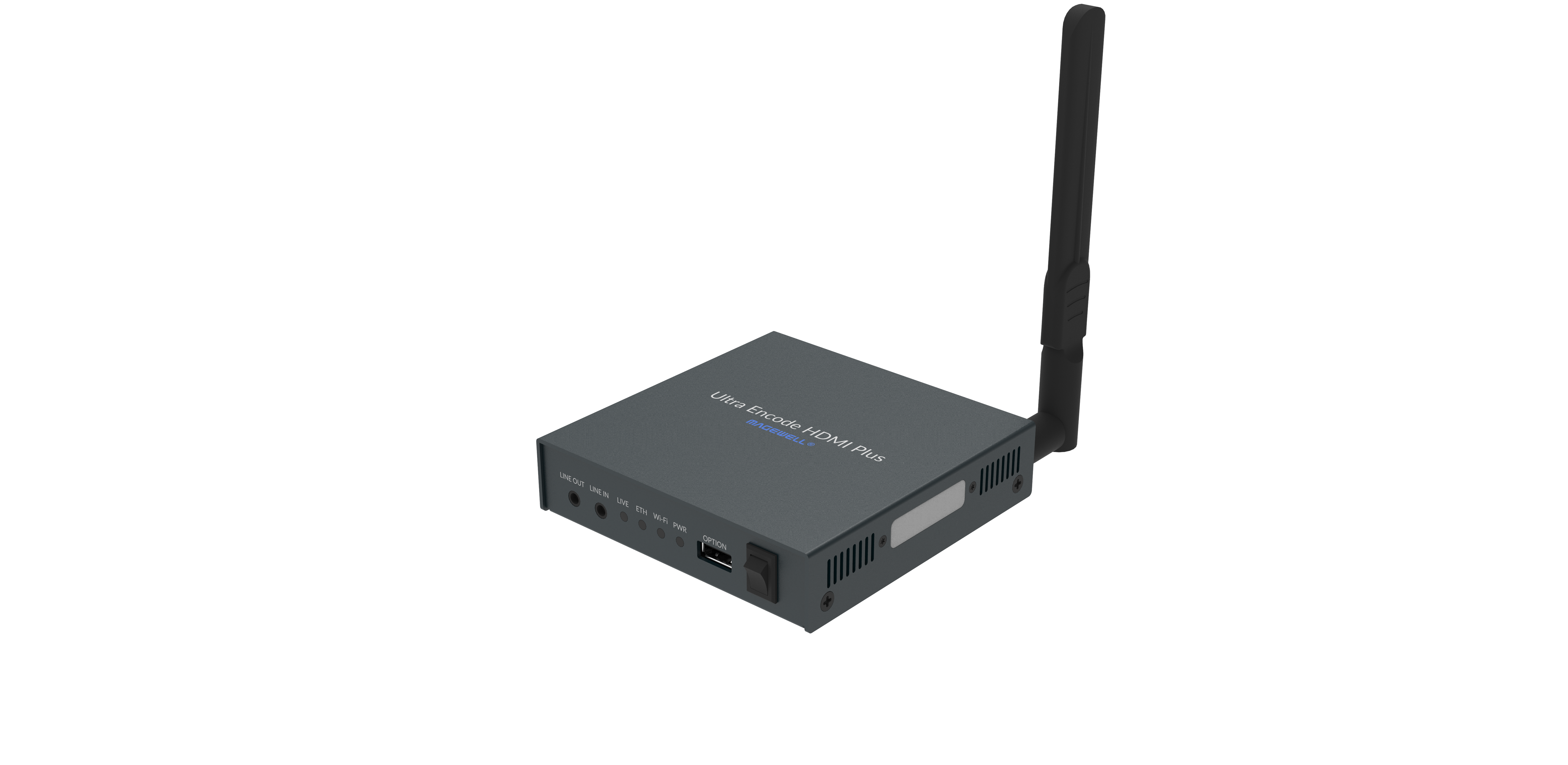

Ultra Encode HDMI Plus
A Flexible & Universal Streaming and Recording Encoder
- Live streaming and recording with support for H.264, H.265, NDI® HX2 and NDI® HX3
- Flexible choice of streaming protocols including RTMP, RTMPS, SRT, HLS and more
- Control via web interface or optional Control Hub centralized management software
* Magewell offers accesories to mount this model on the 1RU rack. A module-type prodyct of the same specification is also available for use with the Magewell Modator chassis for high-density deployment.
Input Features
- Support for up to 4096x2160 4:4:4/4:2:2 30fps input and loop through signals
- Input & loop through 8-Channel, 24-bit HDMI embedded audio
- Input audio from 3.5 mm LINE IN
Encoding Features
- Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
- Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
- Support for H.264/HEVC video encoding
- Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
- Encoding 8-channel AAC and audio channels mapping
- Side-by-Side 3D video encoding
Streaming Features
- Natively support Facebook, Twitch, YouTube and WOWZA
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP/ZIXI/RIST
- Allow simultaneous 6 sessions over multiple streaming protocols
- Support for streaming schedule
Recording Features
- Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
- Automatically upload recorded files to remote file storage platform
- Video recordings in MP4, MOV or TS format
- Normal recording and loop recording supported
- Support for recording schedule
Others
- PoE available
- Tally lights for NDI® HX3
- Remote control via Web GUI and Control Hub
- Provide HTTP APIs
