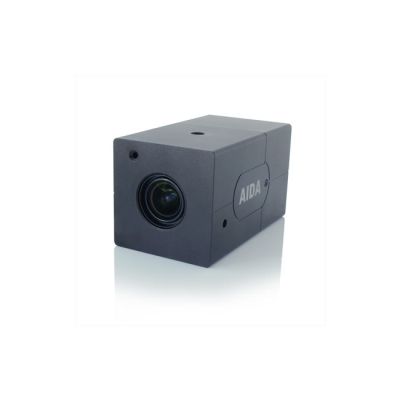

AIDA Imaging UHD-X3L 4K HDMI POV Camera
MICRO 4K POV CAMERA – Professional micro 3X Zoom POV Camera
The UHD-X3L is a professional micro POV camera with 3X optical zoom capabilities. Ideal for wide angle viewing, the UHD-X3L is robust in its features, integrating 4K UHD Progressive CMOS sensors with a digital image processor to maintain sharpness in quality without compromise. The UHD-X3L is great under low light conditions with its motion compensated temporal noise reduction filter. Designed for versatility, durability, and cost effectiveness for smooth integration into any broadcast, professional, or corporate AV environment.
MAIN FEATURES
4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
3X optical zoom features 25~78 wide angle of view.
Built-in zoom lens offers zoom, focus and iris control.
Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
Superb motion-compensated temporal noise reduction filter for motion video without blurring.

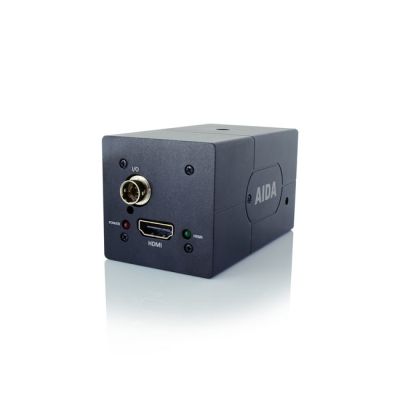

OSD control breakout cable with power input and RS-485 for remote communication.
Perfectly suited for huddle rooms, broadcast, pro audio/video, and security.
Versatile, compact, and rugged design.
SPECIFICATIONS
Video
Image Sensor 1/2.5" Progressive CMOS
Sensor Size Diagonal 7.20mm
Effective Pixels Horizontal: 3840, Vertical: 2202
Pixel Size 1.62 μm (H) x 1.62 μm (V)
Resolution 2160p: 3840 x 2160
1080p / 1080i : 1920 x 1080
720p : 1280 x 720
Resolution/Rate 4K2160p : 30 / 29.97 / 25 / 24
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24
1080i : 60 / 59.94 / 50
720p : 60 / 59.94 / 50
Output HDMI 1.4
Color Space 4:2:2 (YCbCr) 10 bit
Function
White Balance AWB / AE / AF
Exposure Full Auto, Bright, Shutter Priority, Iris Priority, Manual
Other WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,
Digital Slow Shutter, Black Level Compensation, Flicker Detection
Lens
Lens 3X Optical Zoom Lens, 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele)
Standard
SMPTE SMPTE 292M, SMPTE 424M, SMPTE 2081-10
Physical
Camera Control RS-485, OSD Button
Operation Temp 32°F - 104°F
Dimension 48mm x 48mm x 83.09mm / 1.89" x 1.89" x 3.27"
Weight 140g / 0.30lbs
Power 12 VDC (+9 - +15VDC)
