Description

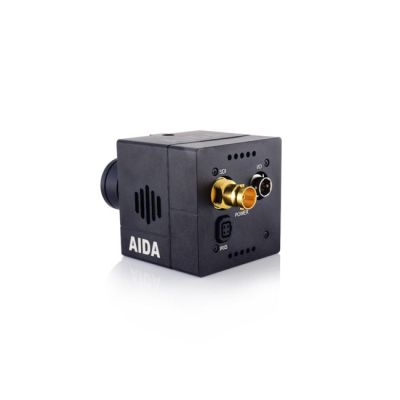

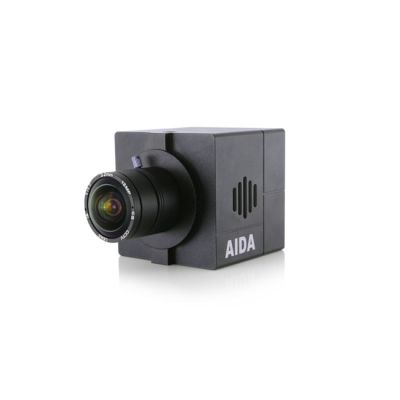

AIDA Imaging UHD 6G-SDI EFP Camera
Retaining the familiar form factor and durable design of the original AIDA GEN3G cameras, the UHD6G-200 brings the expanded control sets and increased video performance. The UHD6G-200 features an advanced 4K UHD Progressive Scan CMOS image sensor capable fo 4K (3840×2160) 6G-SDI output for Industrial and Broadcast applications realizing 4K video imaging with wide dynamic range. Designed for versatility with a user-interchangeable C to CS mount lens allows the UHD6G-200 to be used in nearly any kind of workflow.
MAIN FEATURES
4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
Superb motion-compensated temporal noise reduction lter for motion video without blurring.
OSD control breakout cable with audio input and RS-485 for remote communication.
Flawlessly relays multi-channel embedded audio via SDI
Interchangeable lens design compatible with CS and C mount lenses.
Perfectly suited for broadcast, pro audio/video, and security.
Conforming with SMPTE 292M, 424M and 2081-10
Versatile, compact, and rugged design.
SPECIFICATIONS
Video
Image Sensor 1/2.5" Progressive CMOS
Sensor Size 8.365mm X 6.615mm (16:9)
Effective Pixels Horizontal: 3840, Vertical: 2160
Pixel Size 1.62 μm (H) x 1.62 μm (V)
Resolution 3840 x 2160, 1920 x 1080, 1280 x 720
Resolution/Rate 2160p 30/29.97/25/24
1080p 60/59.94/50/30/29.97/25/24
1080i 60/59.94/50
720p 60/59.94/50/30/25
Output HD/3G/6G-SDI (BNC)
Color Space 4:2:2 (YCbCr) 10bit
Function
White Balance AWB / AE / AF
Exposure Full Auto, Bright, Shutter Priority, Iris Priority, Manual
Others WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,
Digital Slow Shutter, Black Level Compensation, Flicker Detection
Lens
Lens C/CS Mount
Audio
Input 3.5mm Analog Audio Jack over I/O Cable
Sample Rate 16/24/32 Bits
Standard
SMPTE SMPTE 292M, SMPTE 424M, SMPTE 2081-10
Physical
Camera Control RS-485
OSD Button
Operation Temp 15°F - 120°F
Dimension 49m x 49mm x 71mm / 1.92" x 1.92" x 2.79"
Weight 170g / 0.37 lbs
Power 12VDC (+9 - +15VDC)
