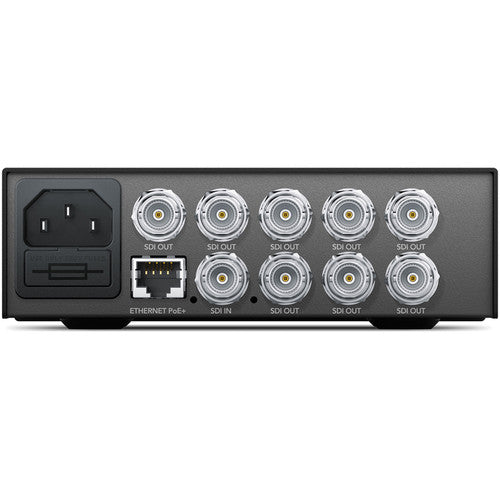

Teranex Mini - SDI Distribution 12G from www.thelafirm.com

Teranex Mini - SDI Distribution 12G

BMD-CONVNTRM/EA/DA
Regular price
$545.00
Sale price
$545.00

Teranex Mini - SDI Distribution 12G
Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.

Connections:

SDI Video Input

1 x 12G-SDI SD/HD/2K/4K auto switching.

SDI Video Output

8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input


Multi Rate Support

Automatic switching between SD/HD/2K and 4K


Updates and Configuration

USB or Ethernet

Re-Clocking

Yes
Standards:

SD Format Support

525/29.97 NTSC, 625/25 PAL

HD Format Support

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

2K Format Support

1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25,

Ultra HD Format Support

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.

4K Format Support

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.

SDI Compliance

SMPTE 259M, 292M, 296M, 372M, 425M, ST 2081 & ST 2082

SDI Video Rates

SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Space

YUV & RGB

Software

Software Control

Mac OS X™ and Windows™ software upgrade via USB and Ethernet.

Internal Software Upgrade

Via included updater application

Settings Control

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility.

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

Power Supply

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE+ (power over ethernet).

Power Consumption

18 Watts

Operational Voltage Range

90 - 240V AC

Environmental Specifications

Operating Temperature

0°to 40°C (32° to 104°F)

Storage Temperature

-20°to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included:

Teranex Mini - S DI Distribution 12G


Software SD Card

Warranty

3 year Limited Manufacturer’s Warranty.
