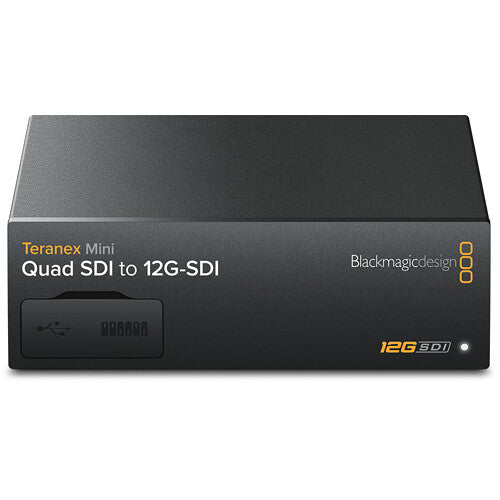

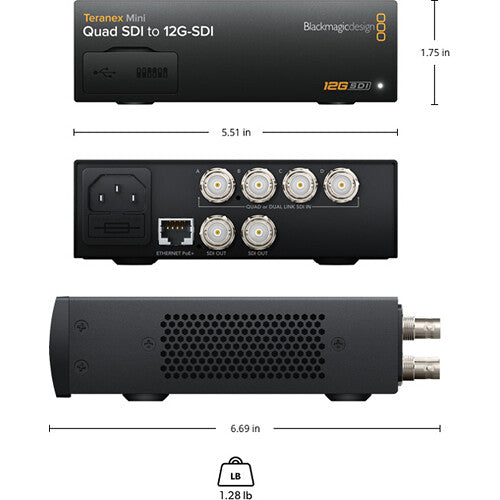

Teranex Mini - Quad SDI to 12G-SDI
Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDI equipment.

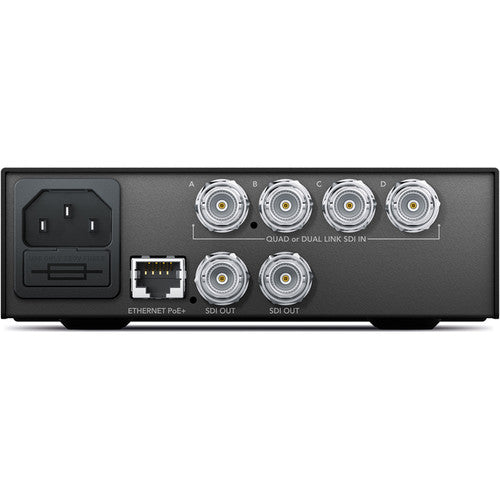

Connections:
SDI Video Input
4 x 12G-SDI SD/HD/2K/4K auto switching
SDI Video Output
1 x 12G-SDI output
Multi Rate Support
Automatic switching between SD/HD/2K and 4K
Updates and Configuration
USB or Ethernet
Re-Clocking
Yes
Standards:
SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
2K Format Support
1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25.
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60,
4K Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
SDI Compliance
SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082
SDI Video Rates
SDI video connections are switchable between standard definition, high definitionlevel A and level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space
YUV & RGB
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade
Via included updater application
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.buttons.
Power Requirements
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
14 Watts
Operational Voltage Range
90 - 240V AC
Environmental Specifications
Operating Temperature
0°to 40°C (32° to 104°F)
Storage Temperature
-20°to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
What's Included:
Teranex Mini - Quad SDI to 12G-SDI
Software SD Card
Warranty
3 year Limited Manufacturer’s Warranty.
Standards:
· SD Format Support
o 525/29.97 NTSC, 625/25 PAL
· HD Format Support
o 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
· 2K Format Support
o 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25.
· Ultra HD Format Support
o 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60,
· 4K Format Support
o 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
· SDI Compliance
o SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082
· SDI Video Rates
o SDI video connections are switchable between standard definition, high definitionlevel A and level B 3G-SDI, 6G-SDI and 12G-SDI.
· SDI Video Sampling
o 4:2:2 and 4:4:4
· SDI Audio Sampling
o Television standard sample rate of 48 kHz and 24-bit.
· SDI Color Space
o YUV & RGB
