Description

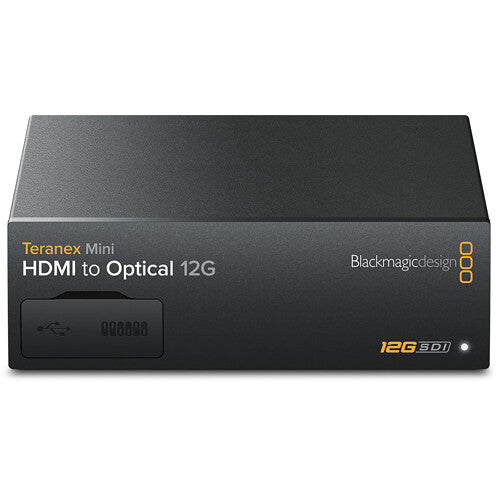

Blackmagic Teranex Mini - HDMI to Optical 12G (Does not include SFP Optical Module)
Convert from HDMI to 12G optical fiber and 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.
Connections
HDMI
1 x HDMI 2.0 type A connector with support for 2160p60.
Optical Fiber Connection
LC connector, 1310 nanometer wavelength, single mode.
Optical Fiber Video Output
Automatically matches the SD, HD and 12G-SDI HDMI video input.
SDI Video Output
Automatically matches the SD, HD and 12G-SDI HDMI video input.
Analog Audio Input
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
AES/EBU Audio Input
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K.
Updates and Configuration
USB and Ethernet.
Re-Clocking
Yes
Standards
SD Format Support
525/29.97 NTSC, 625/25 PAL.
HD Format Support
1280 x 720p50, 1280 x 720p59.94,1280 x 720p60, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1920 x 1080PsF23.98,1920 x 1080PsF24, 1920 x 1080p23.98,1920 x 1080p24, 1920 x 1080p25,1920 x 1080p29.97, 1920 x 1080p30,1920 x 1080p50, 1920 x 1080p59.94,1920 x 1080p60.
2K Format Support
2048 x 1080PsF23.98,2048 x 1080PsF24, 2048 x 1080PsF25,2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25.
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24,3840 x 2160p25, 3840 x 2160p29.97,3840 x 2160p30, 3840 x 2160p50,3840 x 2160p59.94, 3840 x 2160p60,4096 x 2160p23.98, 4096 x 2160p24,4096 x 2160p25, 4096 x 2160p29.97,4096 x 2160p30, 4096 x 2160p50,4096 x 2160p59.94, 4096 x 2160p60.
SDI Compliance
SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 372M,SMPTE 424M-B, SMPTE 425M,SMPTE 297M for Optical Fiber SDI.
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
SDI Color Space
REC 601, REC 709
HDMI Format Support
525/29.97 NTSC, 625/25 PAL,1280 x 720p50, 1280 x 720p59.94,1280 x 720p60, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1920 x 1080p23.98, 1920 x 1080p24,1920 x 1080p25, 1920 x 1080p29.97,1920 x 1080p30, 1920 x 1080p50,1920 x 1080p59.94, 1920 x 1080p60,2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25, 3840 x 2160p23.98,3840 x 2160p24, 3840 x 2160p25,3840 x 2160p29.97, 3840 x 2160p30,3840 x 2160p50, 3840 x 2160p59.94,3840 x 2160p60, 4096 x 2160p23.98,4096 x 2160p24, 4096 x 2160p25,4096 x 2160p29.97, 4096 x 2160p30,4096 x 2160p50, 4096 x 2160p59.94,4096 x 2160p60.
HDMI Color Space
REC 601, REC 709
HDMI Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB or Ethernet.
Internal Software Upgrade
Via included updater application.
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE (power over ethernet).
Power Consumption
15 Watts
Operational Voltage Range
90 - 240V AC

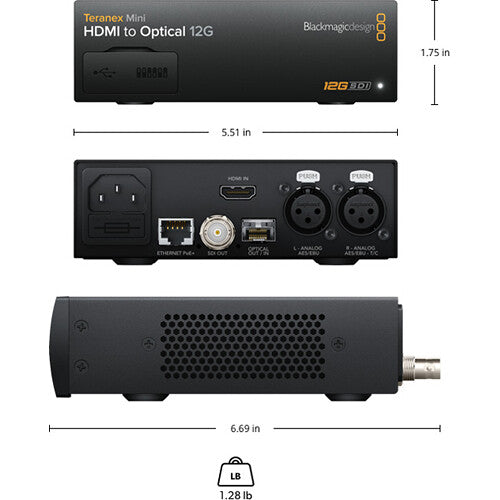

Physical Specifications
Environmental Specifications
Operating Temperature
0°to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
What's Included
Teranex Mini - HDMI to Optical 12G
Software SD Card
Warranty
3 year Limited Manufacturer’s Warranty.
