Teranex Mini - Analog to SDI 12G

Black Magic DesignSKU: BMD-CONVNTRM/BB/ANSDI

Price:
Sale price$545.00

Description

Teranex Mini - Analog to SDI 12G
Convert from analog video to 12G-SDI. Convert incoming analog video signals to SD, HD, 6G and 12G-SDI. Ideal for converting your analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD/Ultra HD SDI video up to 2160p60.

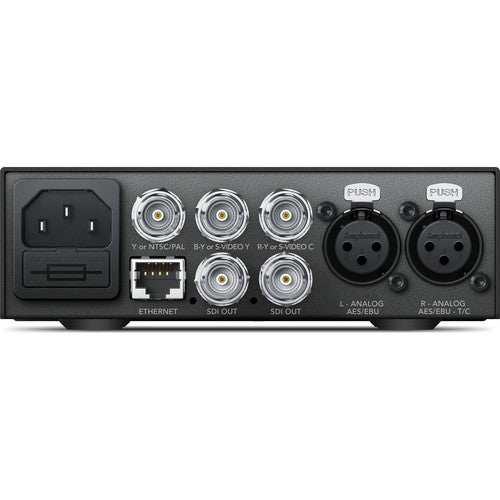

Connections
Analog Video Input
Component SD/HD, NTSC, PAL and S‑Video.

SDI Video Output
User selectable to SD, HD and 12G-SDI.

Analog Audio Input
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.

AES/EBU Audio Input
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.

Multi Rate Support

SDI output switchable between HD for composite and S-Video and Ultra HD for component HD.

Updates and Configuration
USB or Ethernet.

Re-Clocking
Yes

Standards


SDI Compliance

SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 424M-B,ITU-R BT.656 and ITU-R BT.601

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2 and 4:4:4.

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

SDI Color Space

REC 601, REC 709

SDI Format Support

625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p50, 3840 x 2160p59.94.

Analog Format Support

625/25 PAL, 525/23.98 NTSC,525/29.97 NTSC, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1280 x 720p50, 1280 x 720p59.94,1280 x 720p60.

Analog Color Space

REC 601, REC 709

Analog Color Precision

4:2:2

Software


Software Control

Mac OS X™ and Windows™ software upgrade via USB and Ethernet

Internal Software Upgrade

Via included updater application.

Settings Control


Basic Settings Control

Mini Switches, USB and Ethernet via free software utility

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power Requirements


Power Supply

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE (power over ethernet).

Power Consumption

15 Watts

Operational Voltage Range

90 - 240V AC

Physical Specifications

Environmental Specifications


Operating Temperature:

0°to 40°C (32° to 104°F)

Storage Temperature:

-20°to 60°C (-4° to 140°F)

Relative Humidity:

0% to 90% non-condensing

What's Included


Teranex Mini - Analog to SDI 12G

Software SD Card

Warranty


3 year Limited Manufacturer’s Warranty.
