Description

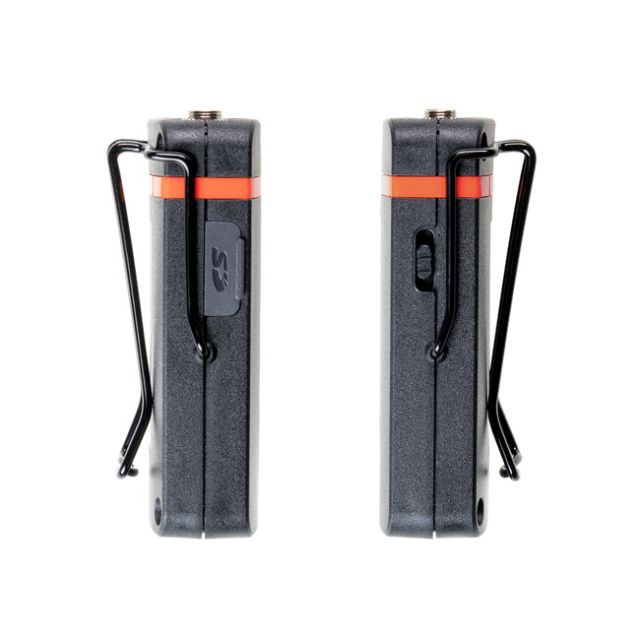

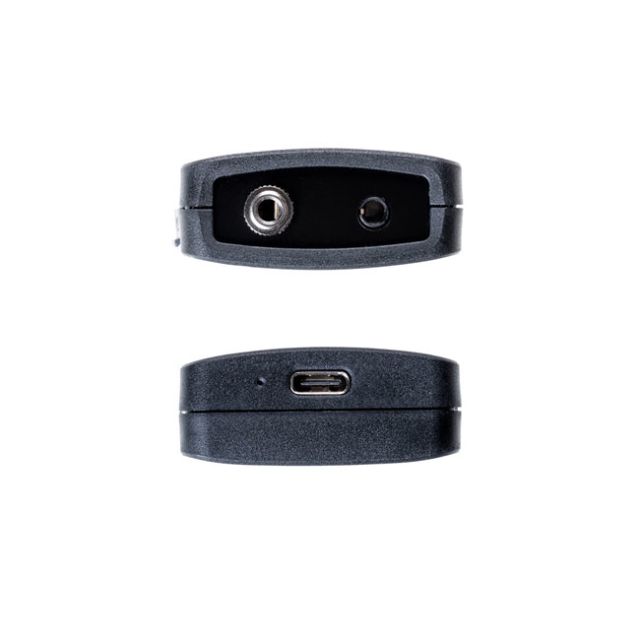

Tentacle Sync TRACK E Pocket Audio Recorder - Basic Box (US)
The TRACK E – Basic Box is for those, who already have all the accessories and high quality microphones, but need more TRACK E audio recorders for more multitrack possibilities.
This special “No-Fuzz-Box” contains:
1xTentacle Sync TRACK E – Timecode Audio Recorder
1xBelt Clip made of Powder-Coated Stainless Steel in Black
1x USB-A to USB-CCharging Cable (USB 2.0)
1x Software License for TentacleSync Studio (macOS)
The TRACK E Timecode Audio Recorder is nearly as small as the Timecode Sync Generator SYNC E, so it can easily fit in your pocket for recording on the go. This allows mobile operation for example as a recorder for a clip-on microphone eliminating the need for a radio-link. It offers timecode synchronization over Bluetooth® based on the well established Tentacle Sync technology. This means that the TRACK E will work in environments where regular wireless transmitter fail.
Controllable through the Setup App for iOS or Android, it seamless integrates into the SYNC E synchronization network by the push of a button via Bluetooth®. But the TRACK E does not necessarily need a SYNC E device to operate – it can easily function as a stand-alone device and can be jam-synced via cable.
In addition to the ability to record with 24-bit depth, TRACK E also features 32-bit floating point technology for a significantly extended dynamic range. 32 bit floating point also means that no digital clipping will occur, making the TRACK E a versatile set-&-forget-device that will always deliver high quality audio. With the TRACK E users can treat audio in a similar way as photographers use the RAW camera photo format – all details can be adjusted in post production, significantly reducing the preparation time before you start shooting.
The TRACK E uses a changeable microSD Card for recording the audio. An input limiter and a high-pass filter guarantee for pristine recording quality. A screwable mini jack connector offers maximum security for connecting microphones. The TRACK E features 5V plugin power for supporting a wide range of microphones. A free license of Tentacle Sync Studio (Mac) is included with every TRACK E purchase.
IMPORTANT NOTE: All TRACK E units that are going to a US address will be a US version. This US version will have the headphone output deactivated during recording.
PROFESSIONAL SOUND RECORDING.FOR EVERYONE.
Are you a musician having a live jam on the street, a professional sound mixer or a documentary filmmaker who can’t afford to miss the perfect shot? Or perhaps you’re an upcoming podcaster, a dedicated YouTuber or a traveling journalist: Whatever your project, record it professionally and easily with the TRACK E audio recorder.
EASY INTEGRATION INTO YOUR WORKFLOW. ONE APP. COUNTLESS POSSIBILITIES.
Our Tentacle Setup App – which remotely controls everything except the weather – helps you enjoy seamless integration into your current workflow. Setup and control all your TRACK E and SYNC E devices via Bluetooth® on your mobile device. One screen. All the information you need.
EVERYTHING YOU NEED TO GET STARTED. STRAIGHT OUT OF THE BOX.
Unbox your TRACK E and you can be ready to go in just three minutes. Here’s what you get: One pocked-sized TRACK E audio recorder, a multi-purpose lavalier microphone and a 16GB microSD card. The lockable mic input is compatible with any lavalier mic, that you might already call your own. Monitor and playback your recordings via headphone out, charge your unit and transmit your data through the USB-C port really fast. It even comes with a funky black belt clip to free up your hands while recording.
32-BIT FLOATING-POINT TECHNOLOGY. HIT RECORD AND START CREATING.
Say goodbye to leveling and digital clipping. The TRACK E with its significantly enhanced dynamic range is a versatile, set-&-forget device that always delivers high quality audio. Users can treat audio like photographers use the RAW camera photo format. You don’t need to worry about the gain of the recorded audio. All details can simply be adjusted in post-production, significantly reducing pre-shoot preparation time. Recorded too low? Simply raise the volume without raising the noise floor.
100% LAVALIER MICROPHONE COMPATIBILITY. JUST CLIP AND GO.
The TRACK E comes packed with its very own broadcast-ready lavalier microphone. Yet, if you still prefer to use your own mics, you can – we also offer a range of suitable adapters to give you the flexibility you’re looking for. The microphone plugin power is adjustable up to 6 volts.
INDEPENDENT MULTI TRACK RECORDING.THE ONLY LIMIT IS YOUR CREATIVITY.
One TRACK E = one track. Now you can record as many audio tracks as you like. Simply sync all of your TRACK Es to create your own multitrack recordings from the individual mono tracks. Then just drop the synced audio into your editing system or prepare for further post-production with Tentacle Sync Studio – we include a free license with every TRACK E purchase.
WORLD-RENOWNED SOFTWARE. SIMPLE SYNCHRONIZATION. PERFECT PROCESSING.
Our well-known and loved Tentacle Sync Studio software (for Mac) ensures seamless synchronization at all times. It also comes packed with tools to help you with the 32-bit and audio processing. In combination with your SYNC E and TRACK E, you now have a seamless and professional audio and video workflow. It’s time to get creative.
10 HOURS RECORDING TIME.FOR THE LONGEST DAYS. AND NIGHTS.
With at least 10 hours recording time, the long battery life will be by your side on the longest of shoots. And if you should find the battery running low, the TRACK E's super fast charge will ensure the boost you need to finish the working day.
FEATURES
32-bit Float Recording / 24-Bit Recording
Control Multiple Devices via Bluetooth® (iOS & Android)
Wireless Timecode Sync (Bluetooth®) / Jam-Sync via Cable
Up to 10 hours Operating Time
2 Year Limited Warranty
Designed and Manufactured in Germany
TECHNICAL SPECIFICATIONS
Recording
Number of Tracks: 1
Sampling Rate: 48 kHz
Recording Bit-Depth: 32-bit Float / 24-bit
Recording File Formats: WAV (BWF)
Recording Time: 30hrs (24-bit) / 23hrs (32-bit Float) with 16GB Card
Storage Media: microSDHC Card up to 32GB (Class 10) not included
Signal Processing: Low Cut Filter, Limiter (24-bit only)
Connectivity
Microphone Input: 3.5mm Jack (screw lock)
Mic Plug-In Power: 5 V (switchable)
Headphone Output*: 3.5mm Jack
USB Connection: USB-C (USB 2.0)
USB Modes: Charging, Card Reader, Firmware Update
Performance
Frequency Response: 20Hz – 20kHz
Gain Range: +6 to +46dB
Dynamic Range: 110dB typ
THD+N: ≤ -85 dB (0,05%)
Control & Sync
Bluetooth®: 5 Low Energy
Remote Control: Tentacle Setup App (iOS/Android)
Synchronization: Via Bluetooth® (Tentacle Setup App) or Jam-Sync via Cable
Timecode Input: LTC via Mic In
Timecode Output: N/A
Frame Rates: SMPTE 12M / 23.98, 24, 25, 29.97, 29.97DF, 30
Power
Power Source: Built-in rechargeable Lithium Polymer Battery
Battery Capacity: 900 mAh
Battery Operation Time: approx. 10 Hours
Battery Charging Time: max. 2 Hours
Mounting: Belt Clip (removable) – Black Powder-Coated Stainless Steel
Weight: 58 g / 2.1 oz
Dimensions: 47 x 68 x 19 mm / 1.85 x 2.67 x 0.74 inches
* In the US version the headphone output is deactivated during recording.
ADDITIONAL INFORMATION
Weight
0.11 kg
Dimensions
11.5 × 9.5 × 2.55 cm
Delivery Time Color
Red
In the Box
1x TentacleTRACK E Timecode AudioRecorder
1x General Purpose Lavalier Microphone with 3.5mm LockableConnector
Mic Clip
Windjammer(black)
Mini Pouch
1x 16GB microSDHCCard 1x USB-A to USB-C Cable 1x USB-C to USB-C Cable 1x BeltClip
1x Zipper Bag
5x Coloured Silicone Bands 2xStickers
1x Software License for Tentacle Sync Studio (macOS)
PackageWeight: 250g
PackageSize (LxWxH): 170 x 115 x 60mm
GTIN: 4260452430060
SKU: TR1-US (only shipped to the US)
