Description
Includes: powerCON Power Cord Control: 3-pin DMX, 5-pin DMX

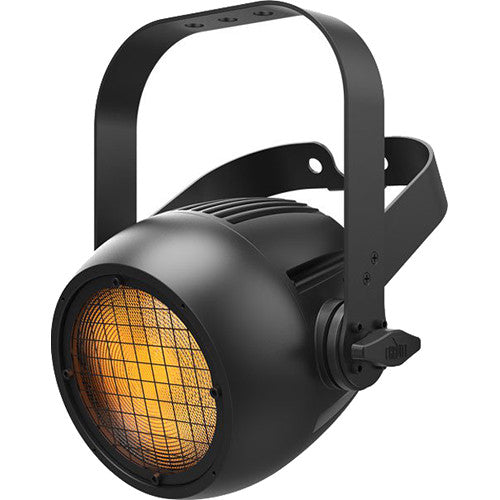

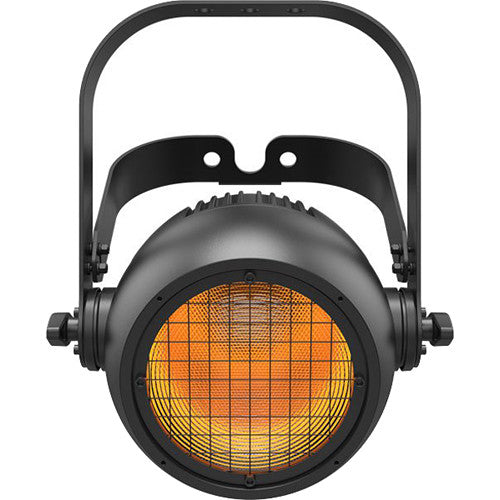

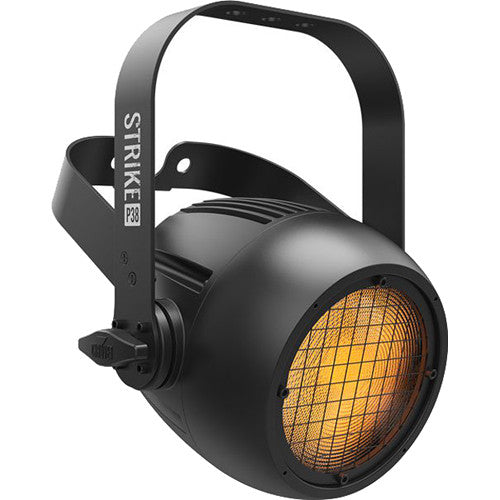

The Strike P38 from CHAUVET Professional is a single pod, compact, outdoor-ready blinder and strobe light powered by a 90W warm-white LED source. An emulated amber shift warms the color temperature of the light as it dims to mimic incandescent lights. The unit's IP-rated fan keeps it cool for use as a wash, while IP-rated direct power and DMX connections eliminate undesirable whips. You can control it with adjustable pulse width modulation and remote device management for added flexibility. In order to mount the fixture to a truss, the Strike P38 features adjustment knobs and a bracket to which you can attach a mounting clamp (sold separately).
Built-in automated programs
Emulated amber shift to mimic incandescent fixtures
16-bit dimming control
Strobe functionality for high-impact effects on-the-fly
OLED display
Adjustable pulse width modulation
Remote device management for added flexibility
Optical
Light Source
1 LED (WW) 90 W, (1.19 A), 2688K, 50,000 hours Life Expectancy
8 LEDs (Amber) 5 W, (0.07 A), 50,000 Hours Life Expectancy
Color Temperature
At Full: 2754K
At 10%: 1899K
CRI
92
Beam Angle
27°
Field Angle
51°
Lumens
2186
Illuminance
325 lux at 16.4' / 5 m
PWM Frequency
600, 1200, 2000, 4000, 25,000 Hz (Selectable)
Dynamic Effects
Dimmer
Electronic
Strobe Rate
0 to 29 Hz
Dimming
4 Modes
Connections
Power Connection Type
Edison (Local) Plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
5-Pin IP65 XLR
Power Cable Length
5' / 1.5 m
Control
Control Protocol
DMX, RDM
DMX Channels
1, 3, 4, 5, or 6
Modes
5 personalities (1-channel, 3-channel, 4-channel, 5-channel, 6-channel)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking
30 Units at 120 V
50 Units at 208 V
55 Units at 230 V
Power and Current
54 W, .449 A at 120 V, 60 Hz
56 W, .267 A at 208 V, 60 Hz
58 W, .245 A at 230 V, 50 Hz
Certifications and Approvals
Certification
CE, MET
IP Rating
IP65, Temporary Outdoor / Wet Use
Ambient Temperature
-4 to 113 °F / -20 to 45 °C
Physical
Exterior Color
Black
Housing Material
Aluminum Die-Cast
Dimensions
11.93 x 10.27 x 7.25" / 303 x 261 x 184 mm
Accessory Holder / Gel Frame Size: 6.25" / 159 mm
Weight
8.4 lb / 3.8 kg
