Description
Includes: IP PowerKon Power Cord, Gel Frame Holder, Gel Frame, Multi-Bracket Control: 3-pin DMX, 5-pin DMX

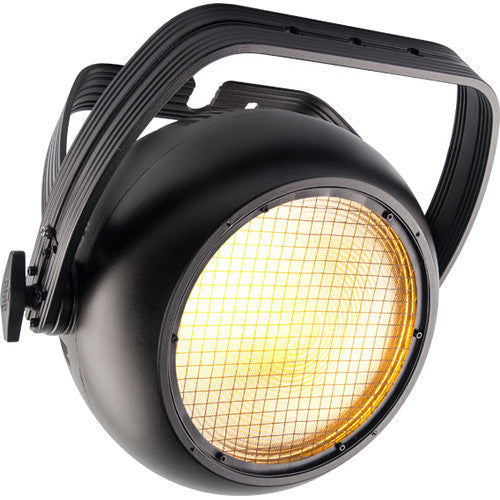

The STRIKE 1 from Chauvet is a single-pod blinder powered by a 230W warm white LED source that can also act as a strobe or wide-area flood light. The blinder is IP65-rated, featuring an IP65-rated fan to keep the fixture cool enough to use as a wash and IP65-rated direct power and DMX connections that eliminate undesirable whips. An emulated "red shift" warms the color temperature of the light as it dims to mimic incandescent lights.
Single-pod IP65-rated blinder/strobe for all-weather use
16-bit dimming control for smooth fades
Strobe functionality for high-impact effects on the fly
Beautiful warm glow made possible with emulated "red shift"to mimic incandescent fixtures
Multi-bracket allows you to create multi-fixture banks with ease
Easy-to-use OLED display
Adjustable Pulse Width Modulation (PWM) control to eliminate flicker on camera
RDM (Remote Device Management) for added flexibility
Light Source
1 x warm white LED, 230 W (4.1A)
Life Expectancy
50,000 hours
Illuminance
1119 lux @ 16.4' / 5 m
Beam Angle
30°
Field Angle
51°
Color Temperature
2688K (at full)
CRI
93
Dimmer
Electronic
Dimmer Mode
4 x modes
Shutter/Strobe
Electronic
Strobe Rate
0 to 25 Hz
PWM Frequency
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz
Built-In Programs
Yes
Protocols
DMX, RDM
DMX Connectors
Input: XLR 5-pin
Output: XLR 5-pin
DMX Channel Modes
2, 3, 4 or 5 channels
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Connectors
Input: Seetronic Powerkon IP65
Output: Seetronic Powerkon IP65
Power Linking
120 V: 6 units
208 V: 10 units
230 V: 11 units
Power Connection Type
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (Power): 5' (1.5 m)
Power Consumption
120 V, 60 Hz: 266 W, 2.209 A
208 V, 60 Hz: 255 W, 1.306 A
230 V, 50 Hz: 258 W, 1.201 A
Power Cable
Edison plug to Seetronic Powerkon IP65
Power Cable Length
5' (1.5 m)
Certifications & Approvals
CE, MET
IP Rating
IP65
Housing Material
Aluminum die-cast
Dimensions
15.0 x 7.4 x 14.6" (38.0 x 18.8 x 37.1 cm)
Weight
18.8 lb (8.6 kg)
