Description

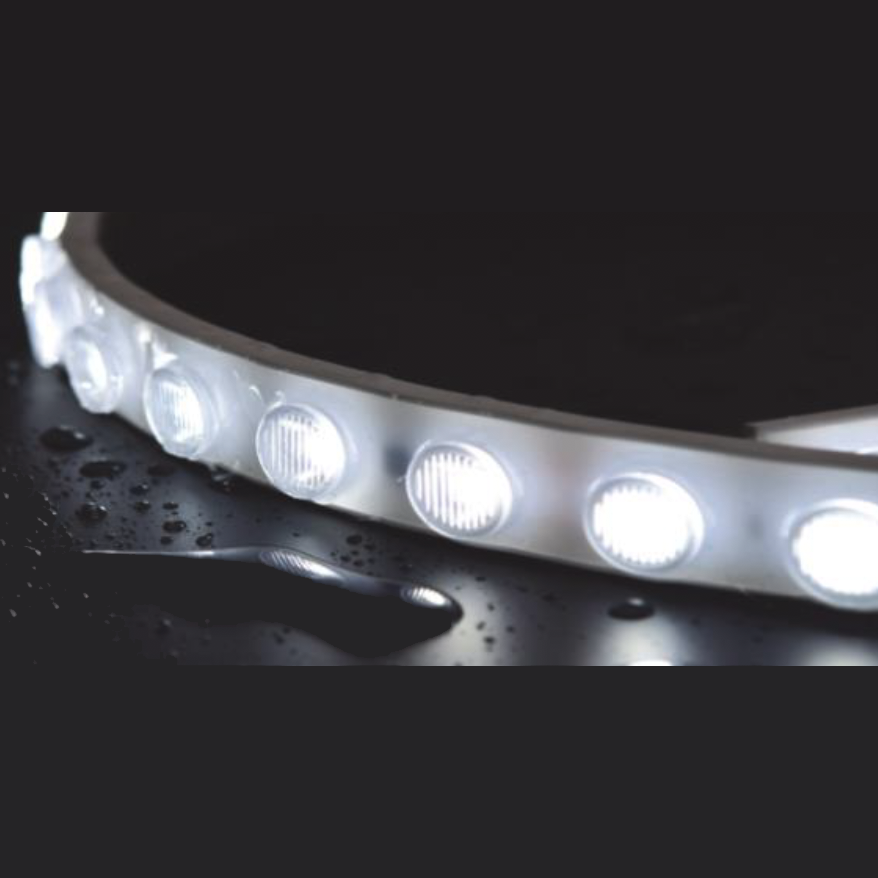

The SpotFlex LED 48 is a specialized FlexLED strip designed with integrated lenses to provide focused, long-range illumination. Unlike standard FlexLED strips with a typical 120° beam angle, SpotFlex LED narrows the beam to 30°, 45°, 60°, or oval beam angles (20° x 45°, 20° x 45° x 10°) for precise uplighting and downlighting applications. Featuring a durable thermoplastic polyurethane lens, this LED strip ensures controlled light distribution for walls, objects, and surfaces requiring extended reach.
Key Features:
Integrated Lenses – Narrows beam angles for precise illumination (30°, 45°, 60°, and oval beam options).
Optimized for Long-Throw Applications – Perfect for uplighting, downlighting, and accent lighting.
Durable TPU Lensing – Provides consistent beam control and long-term reliability.
Wide Colour Options – Available in 2700K, 3000K, 4000K, 5000K, Red, Green, Blue, and Amber.
Custom Colours & Wavelengths – Special orders available upon request.

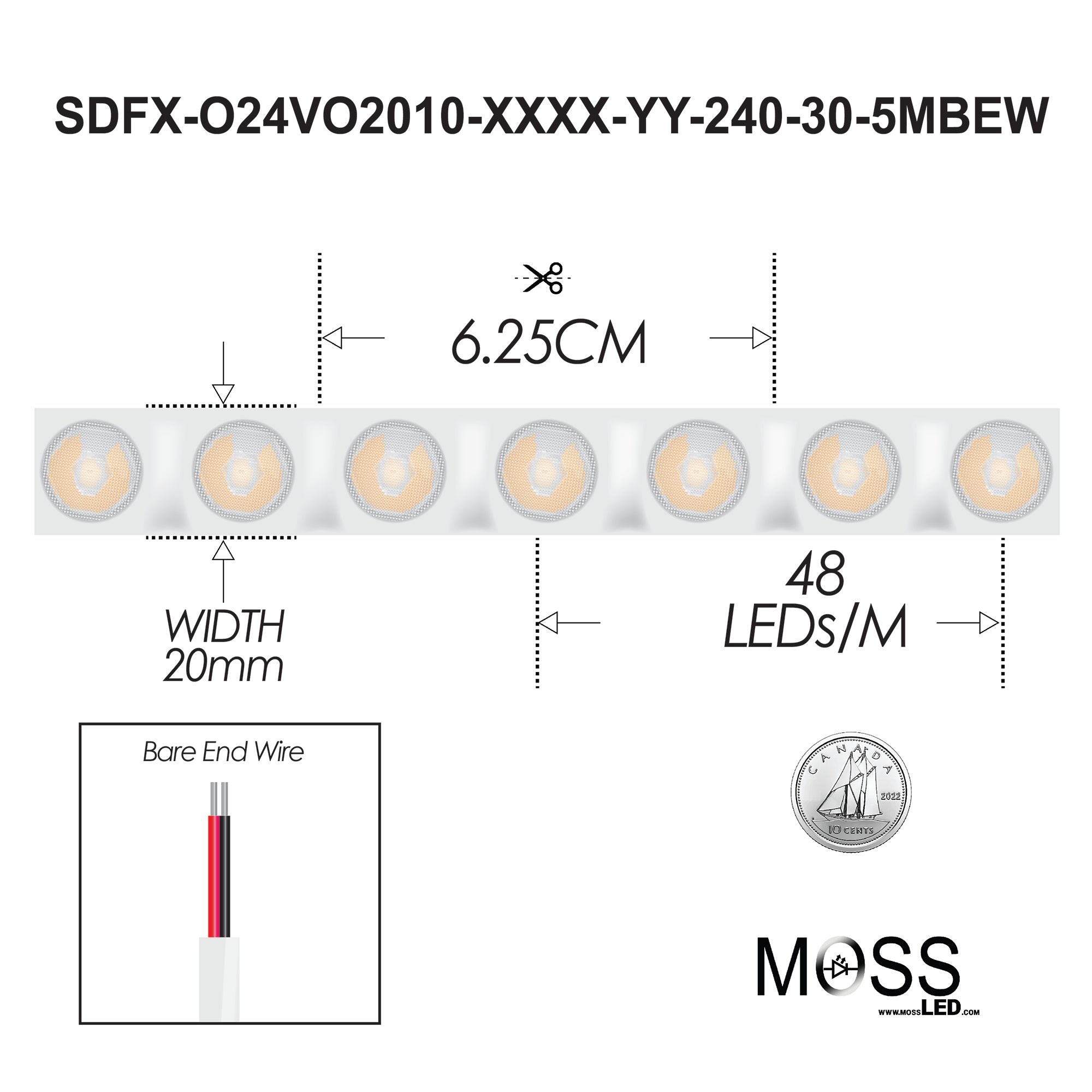

Flexible Cut Points – Standard 6.25cm cut intervals (6.7cm near factory-moulded end caps).
Additional Details:
Pricing is for 5 meters (16.4') - custom lengths available.
Controller, power supply, and extension cables sold separately.
Quantity discounts available.
Soldering Guidelines:
Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Product Type : White Solid Colours
Product Code : SDFX-O24VO2010-XXXX-95-240-ZZ-5MBEW SDFX-O24VO2010-XXX-NA-240-2045-5MBEW
CRI : 95+
Kelvin : 2700K or 3000K or 4000K or 5000K (+/-100k) Red / Green / Blue / Amber
PCB Color : White
Current, Rating : 1.0 / meter
Voltage : 24 VDC
Wattage : 23.8 W / meter
CC / CV : Constant Voltage
IP Rating : IP67
Lumens @ Full @ 30° : 1737 lm NA NA
Lumen / Watt @ 30° : 73 lm/w NA NA
Lifetime* : 30,000 hours
Cutting Length : 12.5 cm except for end caps in which case it is 13.5 cm
LED Quantity : 48 LED / meter (6 / segment)
Number of Contacts : 2
LED Type : 3030
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 70° C
Temperature, Operating, Minimum : -40° C
Agency Ratings : UL - E489028, CE, RoHS
Width / PCB Width : 18MM / 16MM
Maximum Recommended Length : 5 meters
Viewing Angle : 30°/ 45°/ 60° and 20° X 45° / 20° X 45° X 10°
Adhesion : 3M VHB 5952
