Description

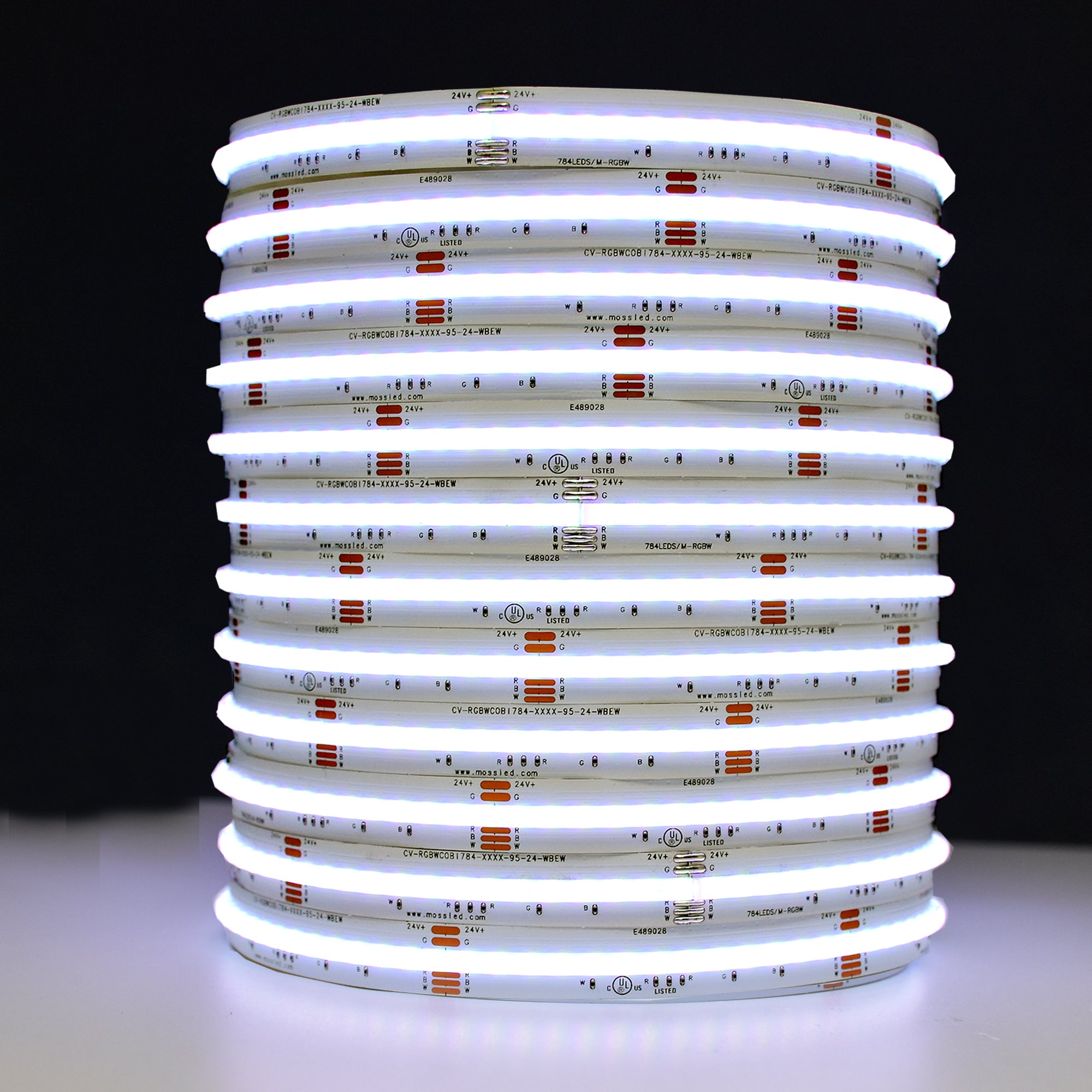

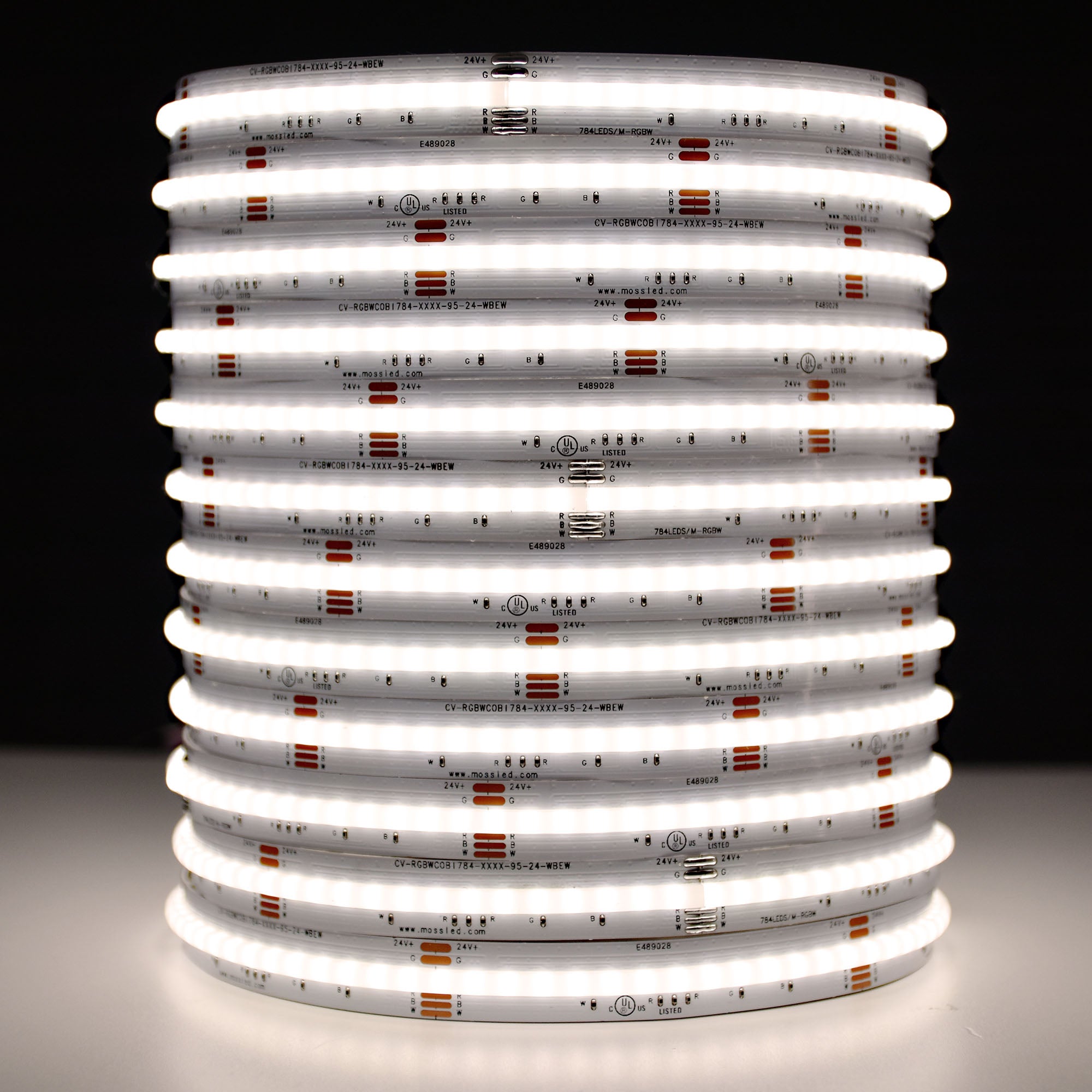

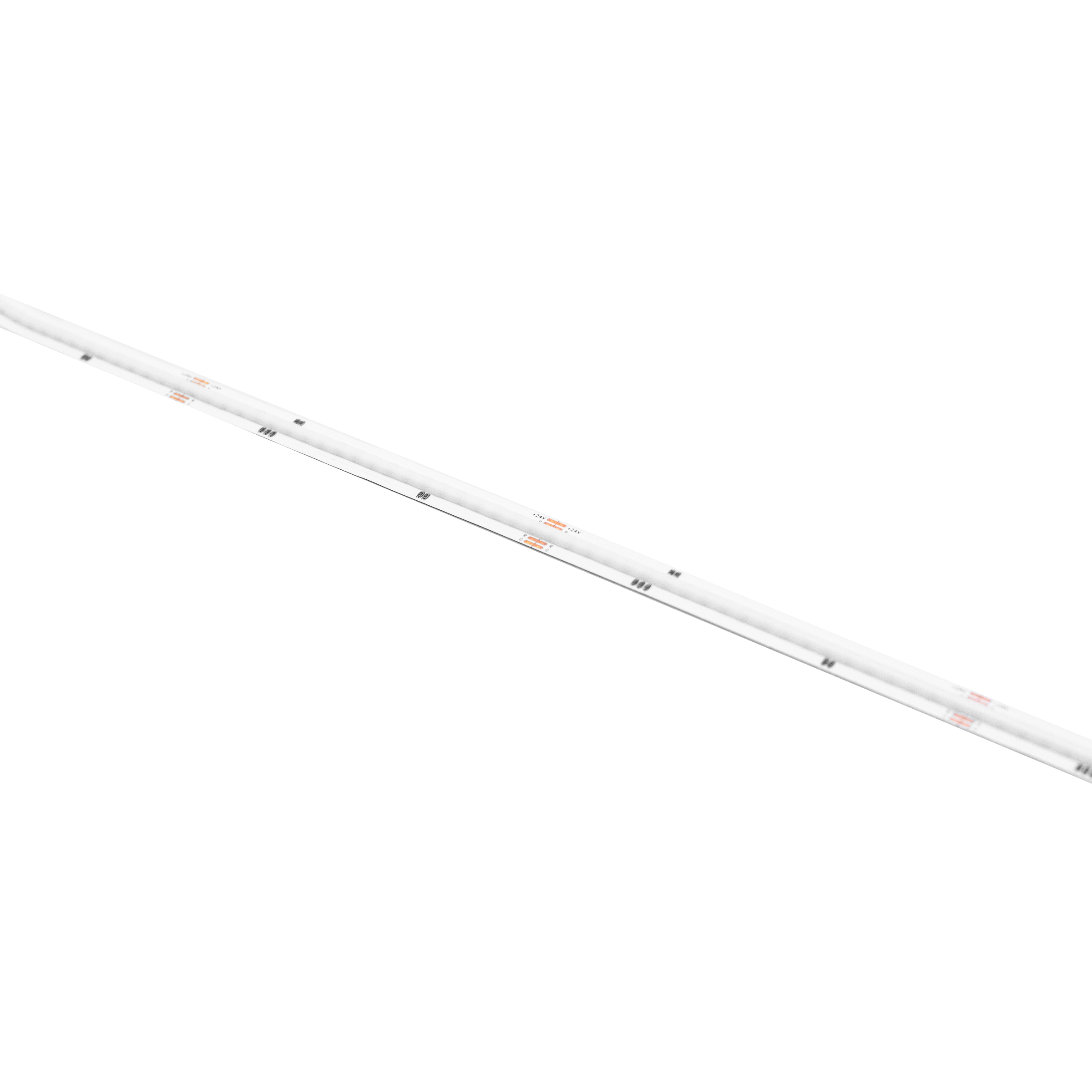

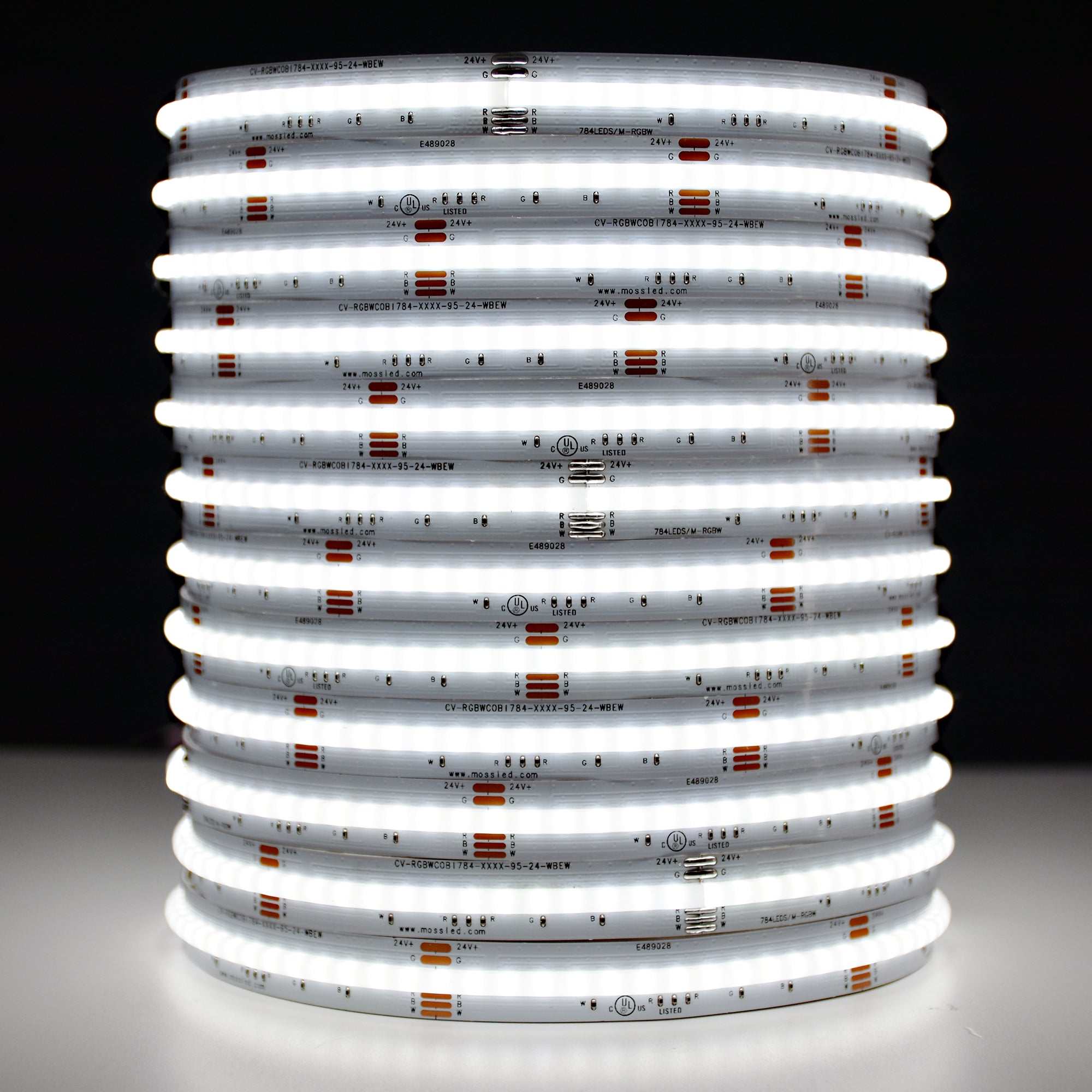

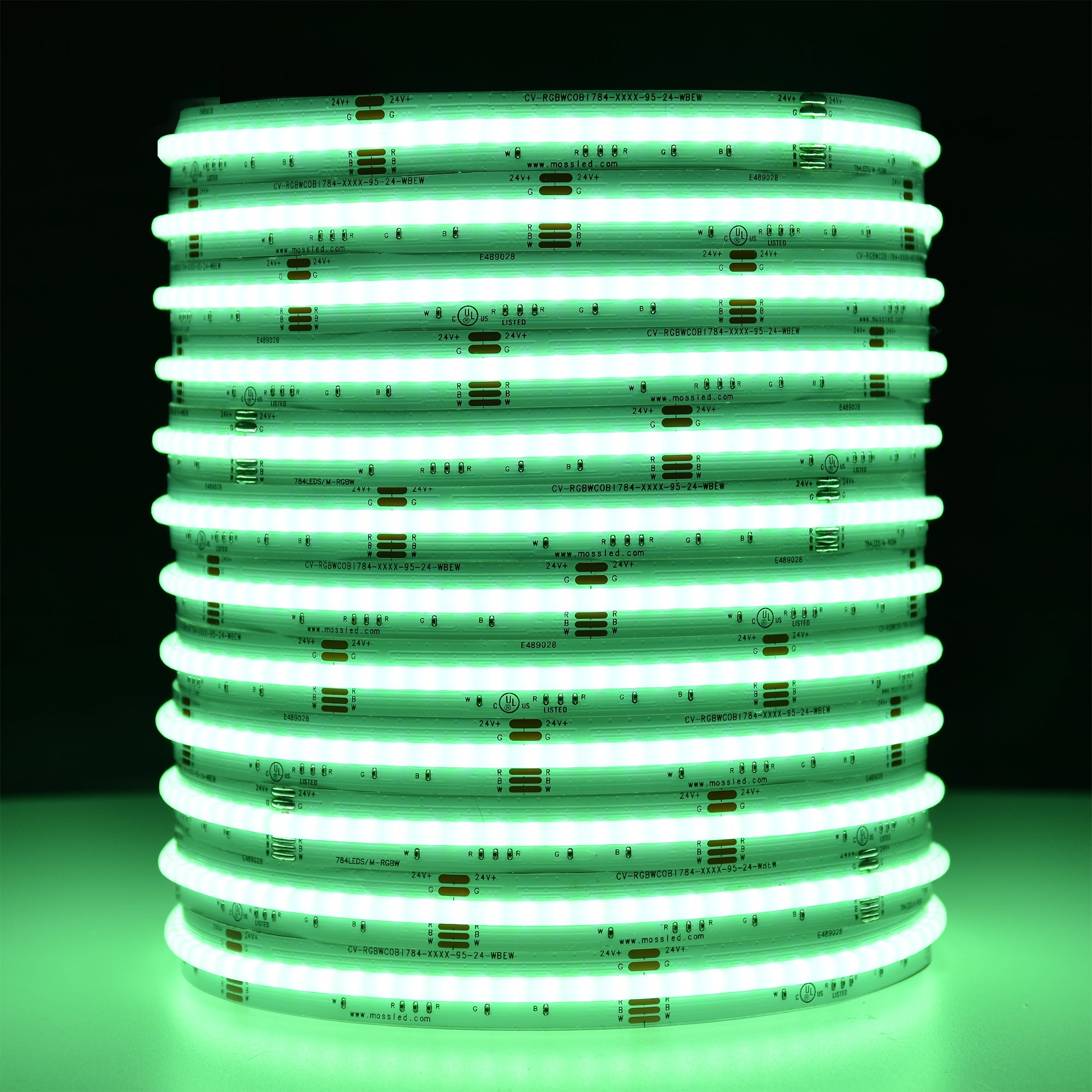

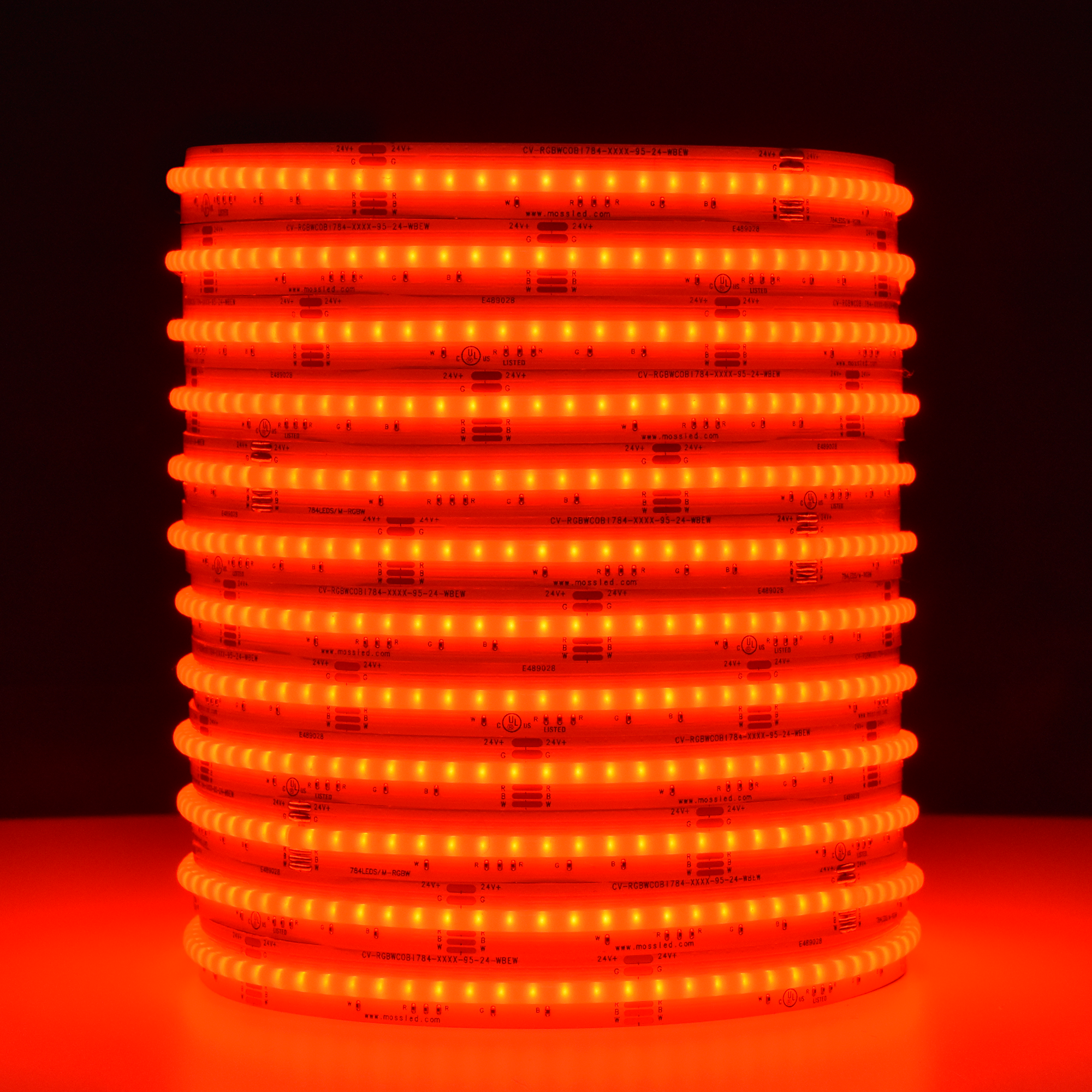

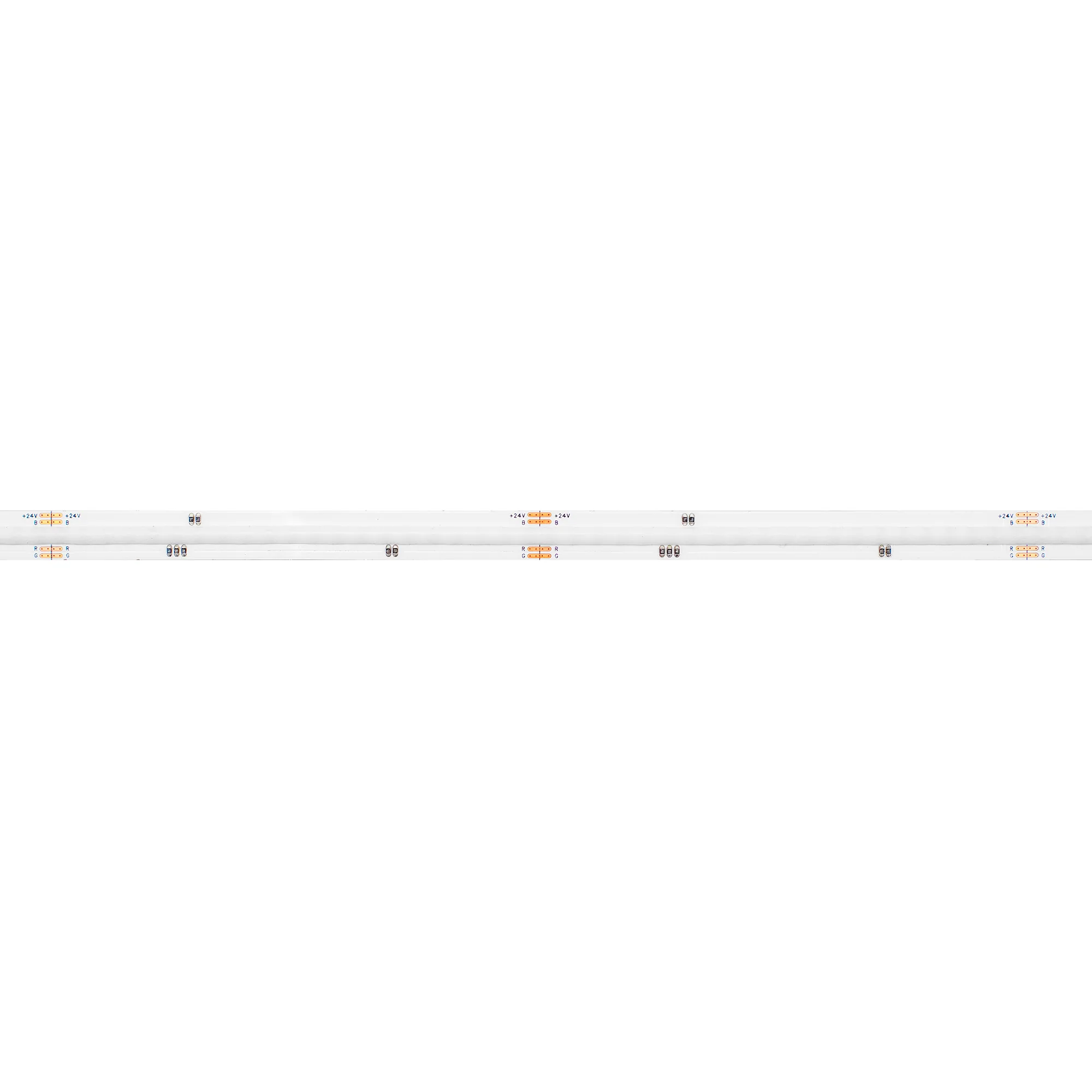

The SoftFLEX LED 784 RGBW is a high-density, chip-on-board (COB) LED strip, delivering virtually seamless, diffused lighting with no visible pixels. Designed for architectural, commercial, and film applications, this 12mm-wide LED tape offers smooth, uniform illumination in tight spaces. With 784 LEDs per meter, SoftFLEX creates soft, shadow-free output, eliminating hot spots and dark zones.
Key Features:
COB (Chip-on-Board) Technology – Provides continuous, nearly pixel-free lighting.
RGBW Linear Arrangement – Optimized for narrow 12mm width and superior colour blending.
Ultra-High LED Density (784 LEDs/m) – Ensures seamless, soft light output with no visible pixels.
Customizable Cut Lengths – Cuttable every 7.14cm (2.81”) for precise installations.
Reliable & Efficient – High heat dissipation and energy efficient for extended lifespan.
Indoor & Outdoor Options – 3M adhesive backing for indoor installs; waterproof versions require silicone mounting.
White LED available in industry-standard 2700k, 4000k or 6000k options.
Installation & Soldering Guidelines:
Due to high LED density, cutting exactly on the cut lines is a must. Be precise (+/- 0.2mm) to avoid damage.
Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
Custom colour temperatures and quantity discounts available.
Additional Details:
Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
Controller, power supply, and extension cables sold separately.
Quantity discounts and custom colour temperatures available.
Pricing is for 5 meters (16.4’) - custom lengths available
The SoftFLEX LED 784 RGBW is the perfect solution for installations requiring flawless, diffused lighting, making it ideal for professional-grade lighting applications.
Product Type : RGBW Colour Changing 784 2700k RGBW Colour Changing 784 6000k
Product Code : CV-RGBWCOBI784-2700-90-24-WBEW CV-RGBWCOBI784-6000-90-24-WBEW
CRI : ≥ 90
Kelvin : RGB+W (2700k) RGB+W (6000k)
PCB Color : White
Current, Rating Per Meter : 0.79 A
Voltage : 24 VDC
Wattage Per Meter : 19 W / METER TOTAL------14 W / METER RGB------5 W / METER WHITE
CC / CV : Constant Voltage
IP Rating : IP21
Lumens @ Full per meter : 1290 LM TOTAL------701 LM RGB------501 LM WHITE 1525LM TOTAL------748 LM RGB------535LM WHITE
Lumen / Watt : 68 LM/W TOTAL-----50LM/W RGB------100LM/W WHITE 80LM/W TOTAL-----53LM/W RGB-----100LM/W WHITE
Lifetime* : 40,000 hours
Cutting Length : 7.14 CM
LED Quantity per meter : 784 chips
Number of Contacts : 5
LED Type : COB
Copper Quantity (ounce) : 2
Temperature, Operating, Maximum : 70°C
Temperature, Operating, Minimum : -40°C
Agency Ratings : UL - E489028, CE, RoHS
PCB Width : 12MM
Maximum Recommended Length : 5 meters
Viewing Angle : 120˚
Adhesion : 3M 55280
