Description

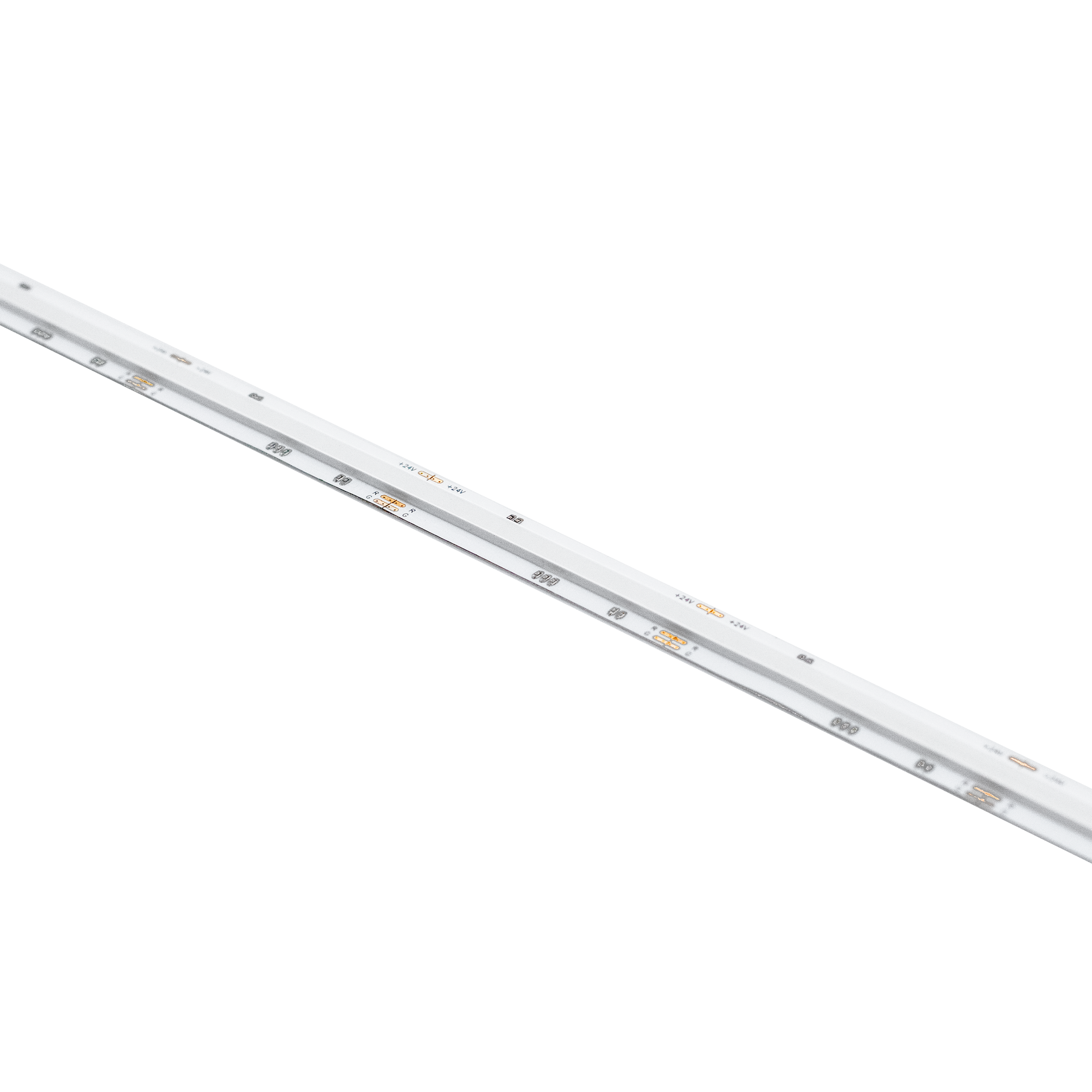

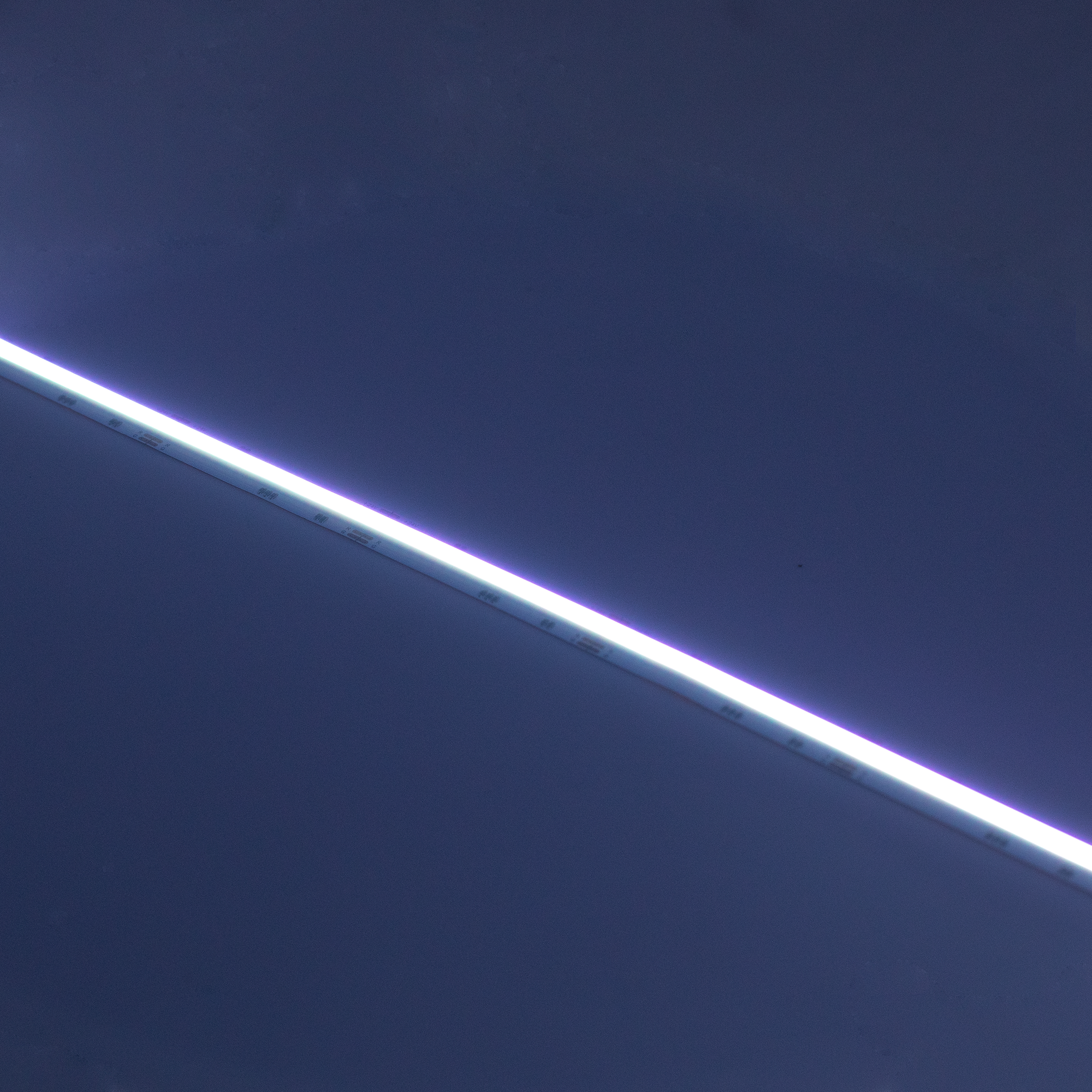

The SoftFLEX LED 1134 RGB is a high-density, chip-on-board (COB) LED strip, designed to deliver seamless, diffused, and vibrant colour output without visible pixels. Utilizing an innovative side-by-side RGB pixel arrangement, this 12mm-wide LED tape ensures flawless colour blending with an impressive 1134 LEDs per meter. Ideal for architectural, entertainment, and film applications, it offers high efficacy, superior heat dissipation, and a long lifespan.
Key Features:
COB (Chip-on-Board) Technology – Produces smooth, pixel-free illumination.
Side-by-Side RGB Pixel Arrangement – Delivers seamless colour blending every 2.64mm.
Ultra-High LED Density (1134 LEDs/m) – Eliminates hot spots and dark zones.
Customizable Cut Lengths – Cuttable every 5.55cm (2.19”) for precise installations.
Reliable & Efficient – High heat dissipation and energy efficiency for extended durability.
Indoor & Outdoor Options – 3M adhesive backing for indoor installs; waterproof versions require silicone mounting.
Installation & Soldering Guidelines:
Due to high LED density, cutting exactly on the cut lines is a must. Be precise (+/- 0.2mm) to avoid damage.
Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
Quantity discounts available.
Additional Details:
Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
Controller, power supply, and extension cables sold separately.
Quantity discounts and custom colour temperatures available.
Pricing is for 5 meters (16.4’) - custom lengths available
The SoftFLEX LED 1134 RGB provides stunning, uniform illumination, making it ideal for dynamic lighting designs where flawless, seamless colour output is essential.
roduct Type : RGB Colour Changing 1134
Product Code : CV-RGBCOBI1134-X-X-24-W
CRI : N/A
Kelvin : RGB
PCB Color : White
Current, Rating : 0.625 A / meter
Voltage : 24 VDC
Wattage Per Meter : 15W
CC / CV : Constant Voltage
IP Rating : IP21
Lumens @ Full per meter : 673 lm / M
Lumen / Watt : 44 lm / W
Lifetime* : 40,000 hours
Cutting Length : 5.55 CM
LED Quantity per meter : 1134 chips
Number of Contacts : 4
LED Type : COB
Copper Quantity (ounce) : 3
Temperature, Operating, Maximum : 70° C
Temperature, Operating, Minimum : -40° C
Agency Ratings : UL - E489028, CE, RoHS
PCB Width : 12MM
Maximum Recommended Length : 5 meters
Viewing Angle : 120
Adhesion : 3M 55280
