Description
in-lite SMART FLUX TONE Pearl Grey 60mm - 12V/21V - 9.5 VA - Ring 68 PG - RGBW - 99200010 from in-lite built for clean, modern outdoor lighting systems.
With in-lite's smart lights, you can easily dim the light in your garden and set it to any color you want. Because of the RGBW LED, Warm White light can also be set. SMART FLUX TONE is the first ground spotlight with these SMART functions.
A SMART HUB is required for this fixture.
A SMART HUB is required for this fixture.
- Wireless and easy to control via the app
- Color and dimming options
- With simple installation cup
Installation advice:
Place a fixture only in a straight drilled hole of the correct size. This will prevent problems with the electrics.

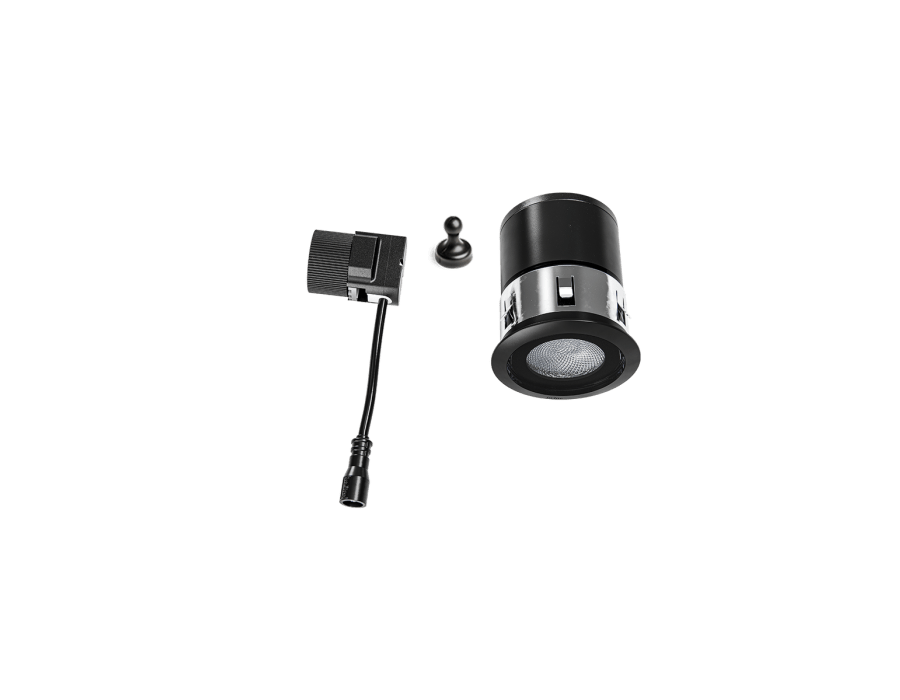

IN THE PACKAGE: INCLUDED IN PACKAGE
- SMART FLUX TONE
- EASY-LOCK
- MAGNET
Product Details
With the smart SMART FLUX TONE ground spot from in-lite you can effortlessly control the light intensity and color of your garden lighting. Thanks to the advanced RGBW LED you can choose from a range of colors as well as Warm White light.
SMART FLUX TONE is the first ground spotlight in the SMART line, making it a welcome addition to the SMART collection. This ground spotlight is easy to combine with the other SMART lights and set via the in-lite app.
SMART FLUX TONE is the first ground spotlight in the SMART line, making it a welcome addition to the SMART collection. This ground spotlight is easy to combine with the other SMART lights and set via the in-lite app.
Specs
Art. nr.
99200010
Application
Canopy, Facade, Fence/wall
Mounting depth (inch)
3.937
Recessed depth (mm)
100

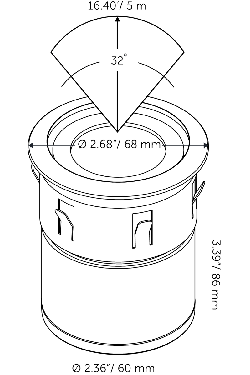

Diameter (inch)
2.6772
Diameter (mm)
68
Color
PearlGrey
Energy label
G
Height (inch)
3.3858
Height (mm)
86
IP class
68
Efficiency (Lumen/Watt)
24
Net luminous flux (Lumen)
144
Power [W]
6
Processing
Concrete, Grass, Gravel, Natural stone, Soil, Wood
Article group
Recessed lights
Voltage
12 volt, 21V
VA value
9.5
Color temperature
3100
Material finishing/coating
Anodized
Kilowatt hour
1
Luminous intensity [Cd]
388
Power factor
0.63
Installation instructions
SMART FLUX TONE you work into a hole in wood (wood drill) or stone (cooled diamond drill) with a diameter of 60.8 mm. A dealer or landscaper can provide this. Note, install the fixture only in a straight drilled hole in the correct size to avoid problems in the electronics. Because the ring of the SMART FLUX TONE rests on the surface, you won't see any drill holes. This provides a luxurious finish.
Please note with surface incorporation that the fixture is slightly longer than the "normal FLUX fixtures. This is because more electronics - for the SMART function - are required in the SMART FLUX TONE.
Please note with surface incorporation that the fixture is slightly longer than the "normal FLUX fixtures. This is because more electronics - for the SMART function - are required in the SMART FLUX TONE.
