Set of 4 Helios Tubes with Softbag accessories


Price:
Sale price$3,185.00 Regular price$3,350.00

Description

Astera Helios Tube RGB LED Tube Light (1.8')
With a wide 120° beam spread, the Astera Helios Tube RGB LED Tube Light will create a soft direct light on your subject and can be used as an accent light or as a design element either on location or on set. Suitable for cine, theatrical, and event productions, the wireless tube is powered by an integrated battery that will give you 20 hours of runtime on a three-hour charge. The light outputs up to 393 lux at 3.3' (4000K) and features eight LED emitters in a 1.8' long tube. It allows mounting in areas where a Titan Tube wouldn't fit, so you can mount into a set, onto a stand, hang it from a grid, or even hold in your bare hand. The Helios Tube has impressive CRI/TLCI ratings of 96/96 to indicate high accuracy in the rendition of color. It uses RGB, mint, and amber LEDs as well as hue, saturation, and intensity control to access millions of custom colors.

Color and control are at the heart of the Helios Tube's design. The tube has an expansive white light color temperature range of 1750 to 20,000K to seamlessly blend into any ambient light situation or just exercise creative expression. You can make adjustments locally on the fixture or remotely via a console with the Helios Tube wired to it. Wireless DMX, CRMX, and other types of units can adjust functions at distances up to 990'. There's also an AsteraApp that lets you control the light with Bluetooth and IR control via an optional remote. The Helios Tube ships without a power supply so you can choose between an optional AC adapter/charger or a PowerBox.

Control
You can use the Astera infrared remote control (not included) by simply pointing it at individual lights to set the desired effect.
The downloadable AsteraApp is an efficient way to quickly create a customized light show using your smart device. It can group several lights together, address individual lights or groups of lights, and send complex effects with a user-defined color palette to all lights in the range.
The light can also be controlled by CRMX (wireless DMX), as the built-in receiver is compatible with all LumenRadio CRMX transmitters.
Wireless Modules
865 to 870 MHz
902 to 928 MHz
2.4 GHz
TruColor Calibration
Achieve 100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels.
Tunable White
Ranges from 1750 to 20,000K.
Green/Magenta Correction
Adjust green/magenta during content creation to reduce post-production work.
20-Hour Runtime
Set the length of your event and be sure that your lights won't run out while still getting the maximum brightness.
Effects
Quickly build programs out of colors and effects, trigger them, or make them match a beat.
Talkback +
Detect all available lights, set them up, check their status, and configure DMX addresses and DMX profiles.
Anti-Theft
The lights give visual and audible alarms and send notifications to the AsteraApp if they are being moved during an event.
Flicker-Free Filming
Scrambled PWM (Pulse Width Modulation) technology is used to prevent flickering when filming the lights.
Scheduled Standby Mode
You can switch the Astera Helios Tube into standby mode to save power, and schedule it to wake up when the event starts.
DJ Application
Auto BPM analyzes the beat and matches programs to it, and flash buttons can trigger special effects.
Dynamic Power Boost
The dynamic power-boost feature enables the light to display the maximum brightness at all times and intensify non-white colors.
Emergency Lights
Switches to white light when AC power is cut to keep your event safe.
Other Features
The AsteraApp is packed with many additional items, and new features are frequently added via software updates.
Astera Titan Tube Single Unit Accessory Kit
The Titan Tube Single Unit Accessory Kit from Astera offers mounting options for the tube The kit includes a folding floor stand to hold the tube vertically, two Eyebolts for suspending the tube with wire or cable, and two metal holders for securing the tube to a truss section.

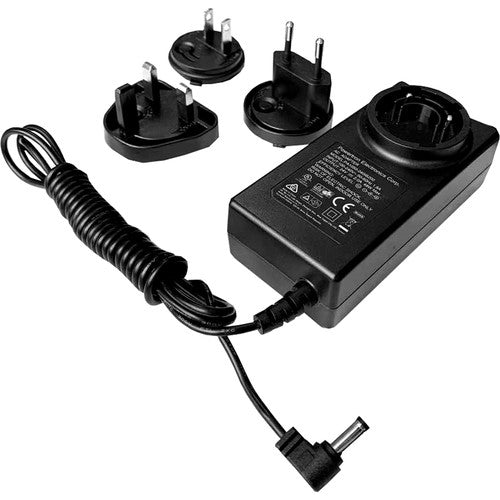

Astera Charger for Titan or Helios LED Tube Light
This Astera Charger charges the battery in one Titan or Helios LED Tube fixture.

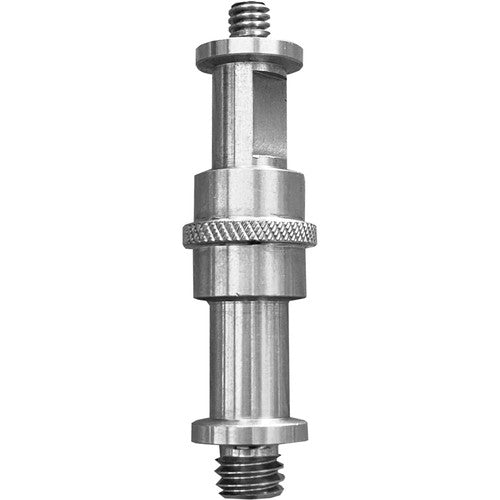

Astera Baby Pin Double-Ended Spigot
An essential accessory for mounting on Super Clamps or any piece of grip gear with female threads, the Baby Pin Double-Ended Spigot from Astera has 1/4"-20 threads at one end and 3/8"-16 threads at the other for mounting onto clamping gear and support lights with a 5/8" receiver. The stainless steel pin is 2.7" long and compatible with the AX3 bracket, AX3 housing, AX5 bracket, AX1 Holder, AX1 Wing Plate, and more.

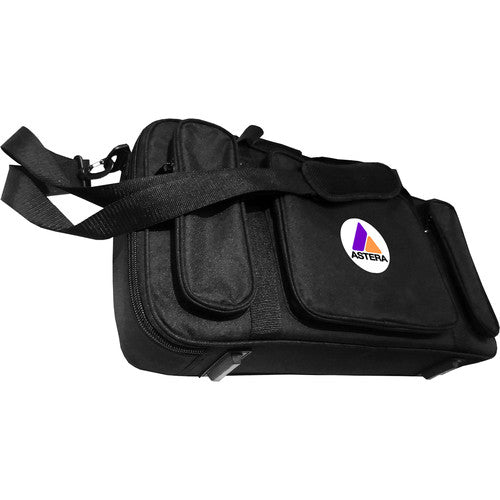

Astera Soft Bag for Helios Tube Lights (Black)
Store, transport, and protect up to four Helios tube lights and related accessories with this black Soft Bag from Astera. The bag features exterior pockets and a shoulder strap.

Holds four Helios tube Lights, four wing plates, eight clamps, eight eyebolts, four stands, eight Baby Pins, one AsteraBox, four individual chargers, and one Datalink

Key Specs
Item Type
1x LED Light Tube/Wand
Included Storage Case
No
Photometrics
3200K:
33 fc / 360 Lux at 3.3' / 1 m*
4000K:
36 fc / 393 Lux at 3.3' / 1 m*

*Standardized Measurement Supplied by the Manufacturer
Show More
Color Temperature
1750 to 20,000K
Color Modes
RGB
Color Accuracy Standard
CRI 96
TLCI 96
Dimming
Built-In Dimmer
Beam Angle
120°
Front Accessory Mount
No
Wireless Remote Control Type
Wi-Fi
Wireless CRMX
Wireless DMX
Power Source
Battery (Built-In)
AC to DC Adapter (Not Included)
Battery
1x Rechargeable (Built-In)
• Up to 20-Hour Runtime
• 3-Hour Charge Time
Input Power
24 VDC at 1.25 A
90 to 240 VAC, 50 / 60 Hz
Power Consumption
24 W
Fixture Mounting
2x M5 Female Thread
Light Fixture
Item Type
1x LED Light Tube/Wand
Included Storage Case
No
Lumens
1285 (at 3200K)
1340 (at 4000K)
Photometrics
3200K:
33 fc / 360 Lux at 3.3' / 1 m*
4000K:
36 fc / 393 Lux at 3.3' / 1 m*

*Standardized Measurement Supplied by the Manufacturer
Color Temperature
1750 to 20,000K
Color Modes
RGB
Color Accuracy Standard
CRI 96
TLCI 96
Dimming
Built-In Dimmer
Cooling System
Passive
Expected Lamp Life
50,000 Hours
Beam Angle
120°
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
No
Connectivity
Wireless Remote Control Type
Wi-Fi
Wireless CRMX
Wireless DMX
Mobile App Compatible
Yes: Android & iOS
App Name: AsteraApp
Functionality: Remote Control, Setup
Wireless Range
984.3' / 300 m
Power & I/O
Power Source
Battery (Built-In)
AC to DC Adapter (Not Included)
Inputs/Outputs
1x Barrel / Coax (2.1 x 5.5 mm) Power Input (24 VDC)
Battery
1x Rechargeable (Built-In)
• Up to 20-Hour Runtime
• 3-Hour Charge Time
Battery Charging
1x AC to DC Adapter (Not Included)
Input Power
24 VDC at 1.25 A
90 to 240 VAC, 50 / 60 Hz
Inline Switch
No
Power Pass-Thru
No
Power Consumption
24 W
Mounting
Fixture Mounting
2x M5 Female Thread
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
0 to 100%
General
Display
Yes
Materials
Metal, Polycarbonate (Housing)
Dimensions
21.6 x 1.6" / 54.9 x 4.1 cm (Fixture)
Weight
1.69 lb / 0.77 kg
Packaging Info
Package Weight
2.315 lb
Box Dimensions (LxWxH)
23.9 x 2.55 x 2.55"
Astera Titan Tube Single Unit Accessory Kit Specs
Packaging Info
Package Weight
1.195 lb
Box Dimensions (LxWxH)
11.1 x 5.3 x 2.2"
Astera Charger For Titan Or Helios LED Tube Light Specs
Electrical
Input Power
110 to 240 VAC, 50 / 60 Hz
Output Voltage
24 VDC
General
Certifications
CE
Weight
1 lb / 454 g
Packaging Info
Package Weight
0.69 lb
Box Dimensions (LxWxH)
5.8 x 2.7 x 2.4"
Astera Baby Pin Double-Ended Spigot Specs
Mounting
1/4"-20 Male, 3/8"-16 Male
Rotation
360°
Material
Steel
Dimensions
ø: 0.7 x L: 2.7" / ø: 19.0 x L: 68.0 mm
Packaging Info
Package Weight
0.135 lb
Box Dimensions (LxWxH)
2.95 x 2 x 0.7"
Astera Soft Bag For Helios Tube Lights (Black) Specs
Key Specs
Color
Black
Carry/Transport Options
Shoulder Strap
Type of Closure
Zipper
Dimensions
Exterior
23.2 x 11.8 x 5.2" / 58.9 x 30 x 13.2 cm
Weight
4.2 lb / 1.9 kg
Carry/Transport Options
Shoulder Strap
Type of Closure
Zipper
Features
ATA Compliant
No
Pressure/Purge Valve
No
General
Materials
Exterior: Polyethylene
Padded Interior
Yes
Dimensions
Exterior
23.2 x 11.8 x 5.2" / 58.9 x 30 x 13.2 cm
Weight
4.2 lb / 1.9 kg
Packaging Info
Package Weight
5.75 lb
Box Dimensions (LxWxH)
25.8 x 14 x 5.9"
