Description

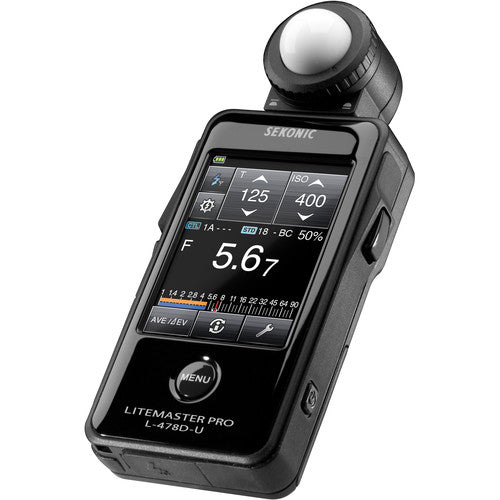

Equipped with a large and intuitive 2.7" color touchscreen LCD, the LiteMaster Pro L-478D-U Light Meter from Sekonic will make incident metering for ambient and flash light super simple. The major ability of this system enables complete control of the flash's power in 0.1-step increments.
Notable for the L-478 light meter series is the large color touchscreen, which allows for fast control over settings for both ambient and flash metering. The meter is quite capable as well, able to function within a range of -2 to 22.9 EV at ISO 100. Additionally, for the current crop of hybrid shooters this model expands on its standard stills functions with two distinct video modes: Cine and HD Cine. These settings give access to frame rate selection from 1-1,000 fps as well as shutter angle settings from 1-358° as well as ISO 850 for Canon cinema cameras.
Guaranteeing the best possible performance is a suite of functions and features that will ensure users have the best tools available to them. Among these is a flash analyzing function that uses ambient and flash simultaneously to allow for shooters to dial in their preferred mix. Also, using the included Data Transfer Software users will be able to do Exposure Profiling for their camera by using the optional 5° viewfinder, showing dynamic range limits and knowing that you will have an accurate exposure. Alongside this is a Filtration Compensation Mode that allows for the meter to account for filter factor, which can now be done at up to 12 EV for landscape shooters using high-density ND filters. Other features include a contrast function for comparing brightness, a memory mode for 8 readings, and illuminance or luminance measurement.
Lumisphere receptor head rotates 90° right and 180° left and retracts for conversion to a flat diffuser
Optional 5° viewfinder for spot metering
Ambient light measuring modes include aperture priority, shutter speed priority, TF priority, CINE, HD Cine, illuminance, and luminance
Flash can be measured with PC sync terminal connection or cordlessly
Measuring range at ISO 100 of -2 to 22.9 EV with incident light or 3 to 19.9 EV with reflected light
ISO range of 3 to 409,600 in 1/3 steps, including 850 for Canon cinema cameras
Other functions: exposure profile, mid tone function, exposure compensation, filter compensation, multiple cumulative function, memory/clear/recall function, average function, contrast function, auto power off, touch panel lock
Runs on 2 AAA batteries
Firmware upgradeable via mini-USB port
Key Specs
Meter Type
Ambient, Cine, Flash
Spot Metering
5° Spot (Optional Attachment)
Flash Metering
Cordless
Light Reading Method
Incident, Reflected
Light Readings
Candelas per Meter Squared (cd/m²), Foot Lamberts (fl), Footcandle, Lux
Measuring Modes
Aperture Priority, EV Metering, FPS Metering, ISO Priority, Shutter Priority
Max Flash Sync Speed
1/1000
Cine Speed / Shutter Angle
1 to 1000 fps at 1 to 358°
Diffuser
Adjustable Spherical to Flat
Display
2.7" / 6.9 cm Color Touchscreen LCD
System Connection
PC Sync Terminal
Mini-USB Port
Battery
2x AAA (Alkaline, Lithium, Manganese, NiMH)
Radio System
No
Spot Metering
5° Spot (Optional Attachment)
Flash Metering
Cordless
Metering
Light Reading Method
Incident, Reflected
Light Readings
Candelas per Meter Squared (cd/m²), Foot Lamberts (fl), Footcandle, Lux
Measuring Modes
Aperture Priority, EV Metering, FPS Metering, ISO Priority, Shutter Priority
Aperture Range
Flash, Incident: f/1 to 128.9 at ISO 100
Flash, Reflected: f/2.8 to 128.9 at ISO 100
f/0.5 to 161.2 (1, 1/2, 1/3-Step Increments) at ISO 100
EV Range
Ambient, Incident: -2 to 22.9 EV at ISO 100
Ambient, Reflected: 3 to 19.9 EV at ISO 100
ISO Range
3 to 409,600 (1/3-Step Increments), Plus 850
Shutter Speed Range
1/64,000 to 30 Minutes (1, 1/2, 1/3-Step Increments), Plus 1/400, 1/200
Max Flash Sync Speed
1/1000
Cine Speed / Shutter Angle
1 to 1000 fps at 1 to 358°
Illuminance Range
0.63 to 2,000,000 Lux / 0.1 to 180,000 fc
Luminance Range
0.3 to 290,000 fL / 1 to 980,000 cd/m²
Exposure Memory
Yes, 9 Readings
Physical
Receptor Element
Silicon Photodiode
Diffuser
Adjustable Spherical to Flat
Display
2.7" / 6.9 cm Color Touchscreen LCD
System Connection
PC Sync Terminal
Mini-USB Port
Media Card Reader
No
Tripod Mounting Thread
No
Environmental
Operating Temperature
14 to 122°F / -10 to 50°C
Storage Temperature
-4 to 140°F / -20 to 60°C
General
Battery
2x AAA (Alkaline, Lithium, Manganese, NiMH)
Radio System
No
Dimensions
2.2 x 5.5 x 1" / 57 x 140 x 26 mm
Weight
4.6 oz / 130.0 g (without Batteries)
Packaging Info
Package Weight
0.735 lb
Box Dimensions (LxWxH)
8.45 x 5.85 x 2.15"
