Description
This REDBACK kit includes everything you need to get up and Spidering.
YOU GET

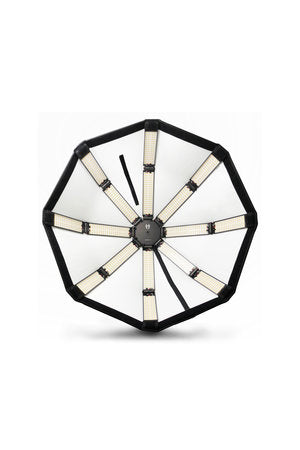

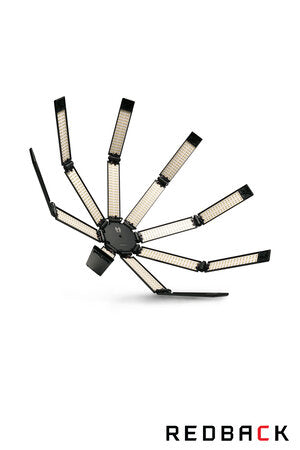

1 x REDBACK Head. Deployable Aluminum Fixture with 3456 LED's.
1 x Parabolic Backing. 36” Octagon.

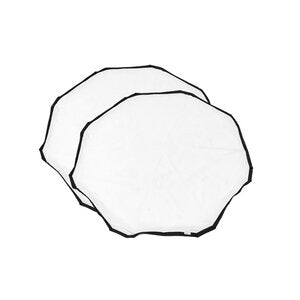

2 x Diffusions for Parabolic mode. Magic and 1/2 Grid. 36” Octagon..
1 x Diffusion storage bag.

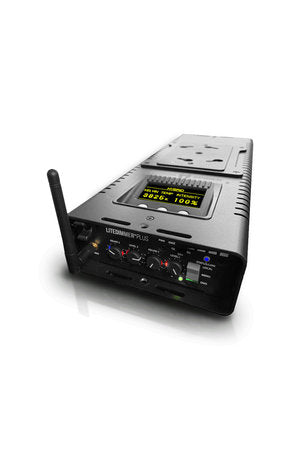

1 x Ballast. LiteDimmer DUO 400 Hybrid 2600-6000k, 400w, 24v, LumenRadio., 4ch.
1 x Neutrik PowerCon cable.

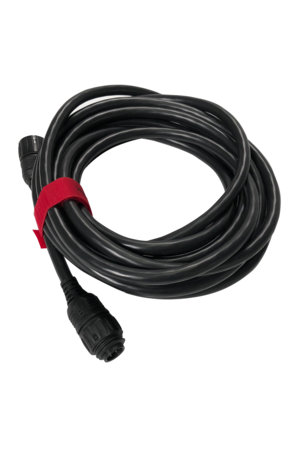

1 x Head feeder. 23’

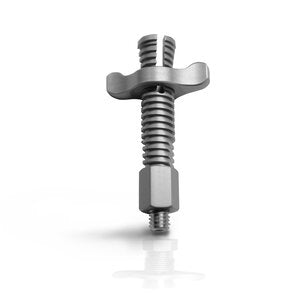

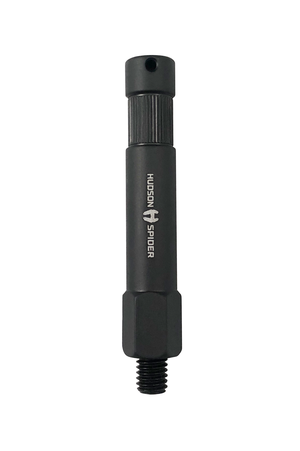

1 x Baby pin for mounting fixture to any grip head. Length 5” Diameter.5/8”.

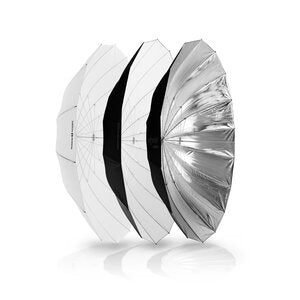

1 x Lightweight Umbrella. 72” diameter by Westcott. White bounce, Silver bounce or Diffusion.
1 x Umbrella mount.

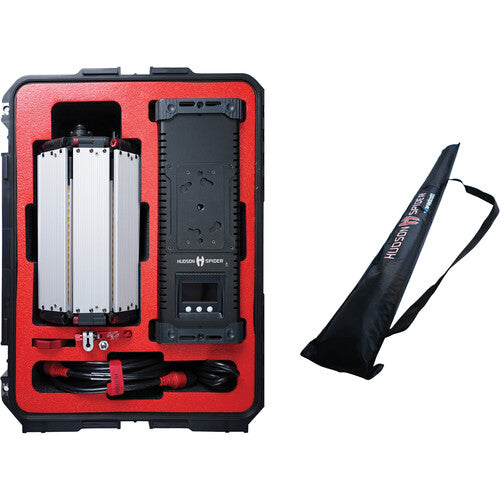

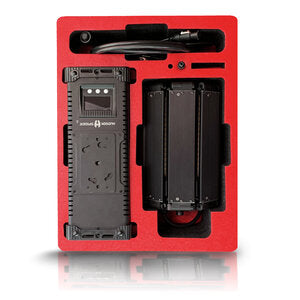

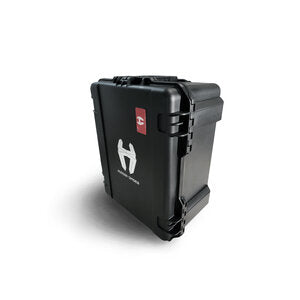

1 x Case with custom foam insert by SKB.
Accessories included:

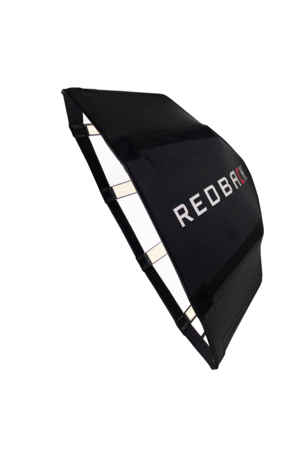

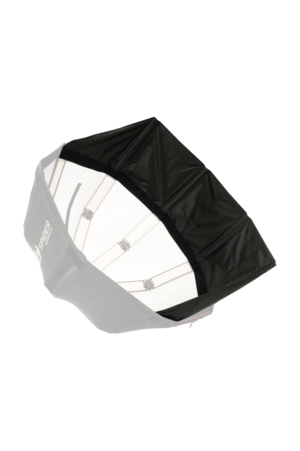

1 x TEASER for Parabolic Mode. 180 Degree rigid fabric teaser.

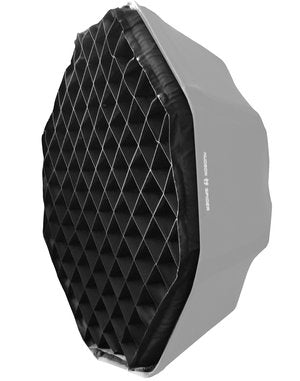

1 x LCD for Parabolic Mode. 50 degree. Fabric Honeycomb. 36” Octagon.
To rig you will require a 5/8 receiver, usually the grip head of a C-Stand.

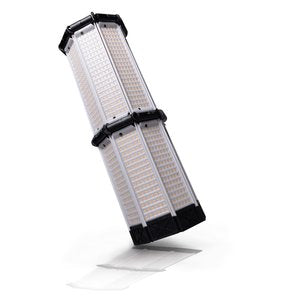

* PLEASE NOTE- OUR HINGE DESIGN HAS CHANGED FROM THE PICTURED BUTTON LOCKING TYPE WITH LIMITED STOPS, TO AN OMEGA FRICTION TYPE WITH INFINITE STOPS. CORN COBB POSITION IS ENABLED ON ALL NEW UNITS.
REDBACK SPEC SHEET
LED
Total LEDs 3,456.
Color range 2600K to 6500K.
Dimming range 0 – 100%.
HEAD
Head size open - parabolic 37”/95.2cm ø Octagon x 15.5” /39.4cm Parabola.
Head size open - flat 50”/127cm ø octa x 1”/2.5cm.
Configurations e.g. Parabolic, flat, folded. etc.

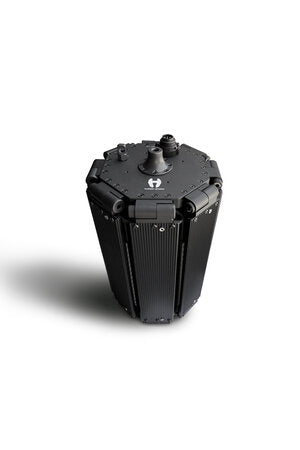

Head size closed 12”/30.5cm x 8” /20.3 CM ø octa.
Head weight 7lbs 4oz / 3.3kgs.
Materials 7071+6065 Aluminum, steel, copper and silicone plastics.
ELECTRONICS
Output voltage 24 VDC constant voltage.
Input voltage 90 – 305V AC, 50/60hz (C14 connector) Universal.
Power 400W.
Power connectors 7 PIN Bayonet locking system. IP 68.
Ballast Protection Over current/voltage/temperature or short circuit.
Ballast IP rating IP20.
Ballast size 14”/35cm L x 5”/12.7cm H x 7”/17.8cm W.
Ballast weight 11lbs 11oz / 5.3kg.
Head feeder length 24’ / 7.3m.
IEC cord set US.
DATA
DMX connector Input/output 5 pin XLR connector.
Service port USB Type A.
Data protocol DMX 512.
REDBACK SPEC SHEET
RIGGING
Mounting point 3/8” Thread front and back.
Baby pin 3/8” Thread, 5/8” ø x 3.5”/8.9cm.
Mounting method Install baby pin to front or back for a 5/8” grip head.
FABRICS
Diffusions 36” / 91.4cm ø Octagon x varied fabric.
Utility backing cover Poly and nylon fabrics stitched, reinforced and laminated.
CASE
Case type Injection molded waterproof case with foam cut insert.
Case size 12.5” x 21” x 24” / 31.75cm x 53cm x 70cm.
Case weight - packed 49lbs / 22.2 kgs.
