Description
Includes: IEC power cable
Data connections: Ethercon In/Out, 5-Pin DMX In (x2), 5-Pin DMX Out (x8)

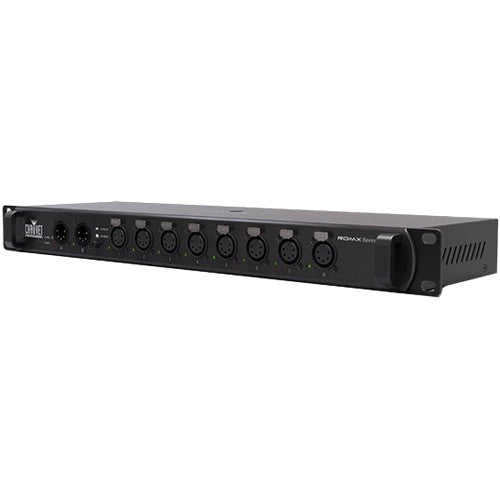

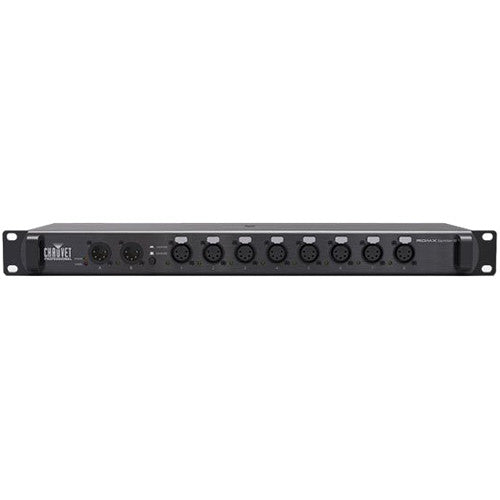

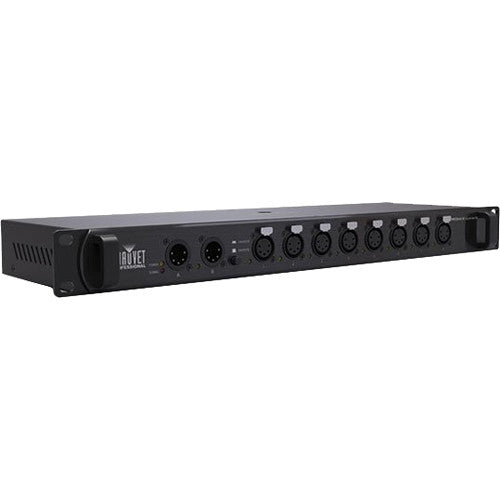

The RDMX Splitter 8 from Chauvet is an RDM/DMX opto-splitter that features eight outputs and two inputs which allow the unit to support single or dual universes. Its powerCON power linking facilitates splitting at a fixture where power and data are already present. Suitable for worldwide use, the steel and aluminum-constructed Splitter 8 has an auto-ranging 100 to 240 VAC power supply and can be rack or truss-mounted.
Benefits
Universal RDM E1.20 compliant 5-pin DMX opto-splitter that supports either 1x8 (single universe) or 2x4 (dual universes) modes with the press of a button or functions as a 2x4 A/B splitter
Rugged reinforced housing supports 1 RU rackmount and mounting to pipe and truss without additional accessories
Electrical isolation between inputs and outputs up to 1000V between ports

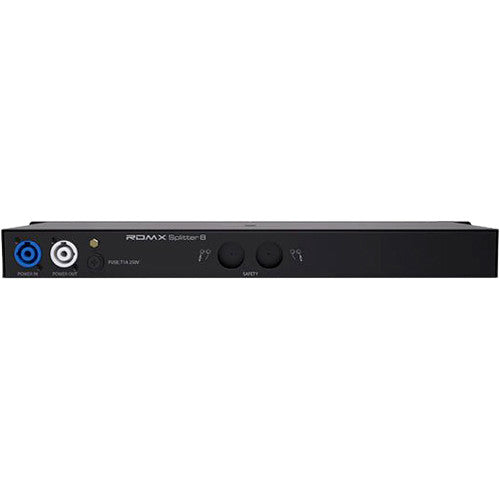

powerCON power linking supported to make it easy to split signal at a fixture, where power and data are already present
Power linking also makes it easy to install next to existing fixtures, so isolating, amplifying, and splitting signal are effortless
CHAUVET PROFESSIONAL RDMX Splitter 8 Specs
Key Specs
Inputs/Outputs
2x XLR 5-Pin powerCON Input
8x XLR 5-Pin powerCON Output
General
Inputs/Outputs
2x XLR 5-Pin powerCON Input
8x XLR 5-Pin powerCON Output
Power
Power Consumption
14 W
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 0.06 to 0.09 A
Environmental
Operating Temperature
-4 to 113°F / -20 to 45°C
Certifications
CE
Environmental Protection
Dust-Resistant (IP20)
Physical
Material of Construction
Aluminum, Steel
Rack Mount
1 RU
Cable Length
5' / 1.5 m
Dimensions
19.0 x 5.8 x 1.8" / 483.0 x 146.0 x 45.0 mm
Weight
4.2 lb / 1.9 kg
Packaging Info
Package Weight
6.34 lb
Box Dimensions (LxWxH)
20.8 x 8.4 x 3.3"
