Description
Includes: Carry Pouch, 2 pcs 3- to 5-pin converters, 5-pin male to bare wire adaptor, USB charging cable
Data connections: 5-pin XLR In/Out
1
2
3
4

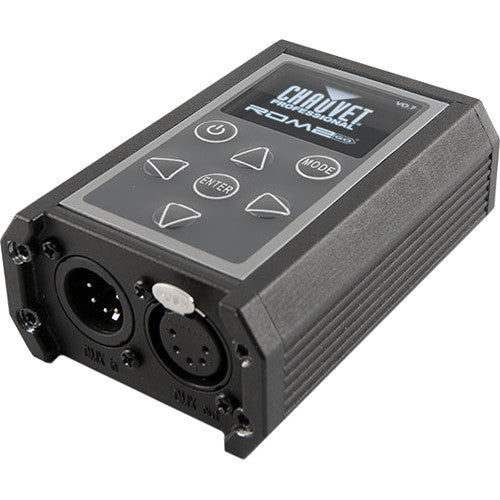

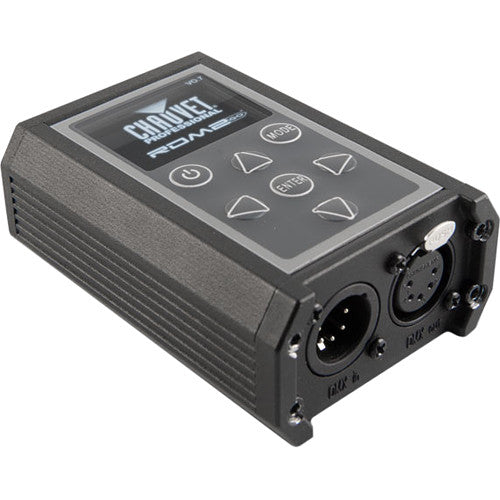

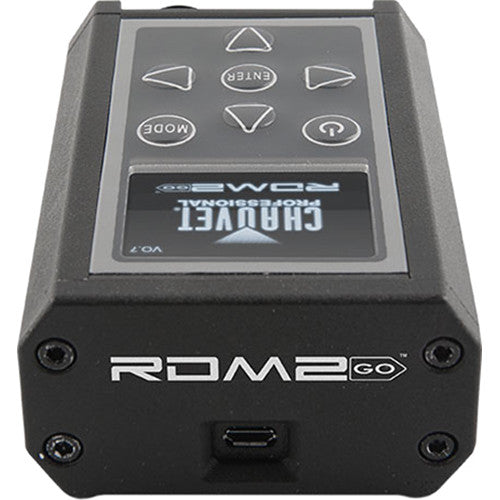

The Chauvet Professional RDM2go is a palm-sized, multifunctional tool for working with fixtures over a DMX/RDM data line. The controller performs a number of tasks including RDM functionality, DMX snapshot and test-scene record and playback, Ilumicode addressing for Iluminarc fixtures, and DMX input and output monitoring. The unit also features a built-in DMX cable integrity checker and includes an easy-to-read OLED display for crisp visual feedback.
The unit is powered by a rechargeable lithium-ion battery, which offers up to 8 hours of use and is easily recharged via micro-USB jack. The RDM2go includes a belt clip pouch, two 3- to 5-pin DMX adapters, a 5-pin-male-to-bare-wire adapter, and a USB charging cable.
Benefits
Handheld tool for managing fixtures and systems with DMX, RDM, and Ilumicode based control
Easily address, locate, and monitor RDM capable fixtures
Check DMX addressing, cabling, and store/playback basic snapshots
Address and set personalities of Ilumicode-based architectural fixtures
Comes with connector adaptors, USB charging cord, and belt clip pouch
Dynamic Effects
Standalone color mixing
Color temperature presets (Ilumicode)
Dim modes (Ilumicode): 5
Customizable programs
Recall custom programs
Control
Protocols: DMX, RDM, Ilumicode
DMX Channels: 1, 2, 3, 4, 5, 6, or 7
Modes/Personalities (Ilumicode): RC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D
Key Specs
Inputs/Outputs
1x Micro-USB
1x XLR 5-Pin (DMX) Input
1x XLR 5-Pin (DMX) Output
Channels
7
Power Source
Built-In Rechargeable Battery
Protocol
DMX512, RDM
General
Inputs/Outputs
1x Micro-USB
1x XLR 5-Pin (DMX) Input
1x XLR 5-Pin (DMX) Output
Channels
7
Dimming
Yes
0 to 100%
Power
Power Source
Built-In Rechargeable Battery
Power Consumption
18 W
AC Input Power
120 to 230 VAC, 50 / 60 Hz
Runtime
8 Hours
Battery Chemistry
Lithium-Ion
Compatibility
Protocol
DMX512, RDM
Environmental
Certifications
CE
Environmental Protection
Dust-Resistant (IP20)
Physical
Material of Construction
Aluminum
Cable Length
3' / 0.91 m
Dimensions
2.7 x 1.5 x 3.9" / 6.9 x 3.8 x 9.9 cm
Weight
0.77 lb / 0.35 kg
Packaging Info
Package Weight
1.7 lb
Box Dimensions (LxWxH)
6.8 x 5.8 x 4.3"
