Description
The Quad-LED High Current DMX Dimmer delivers powerful, high-precision lighting control for FlexLED Tape and Modules, supporting 1, 2, 3, and 4-channel configurations. With industry-standard DMX connectivity via RJ45 connectors, an isolated DMX input, and an intuitive LCD interface, it ensures smooth, reliable dimming for film, television, and architectural lighting applications.
Key Features:
4-Channel DMX Dimming – Converts DMX-512/1990 signals into four independent dimmable outputs.
Versatile Compatibility – Supports RGBA, RGBW, RGB, Bi-Colour, and White FlexLED Tape.

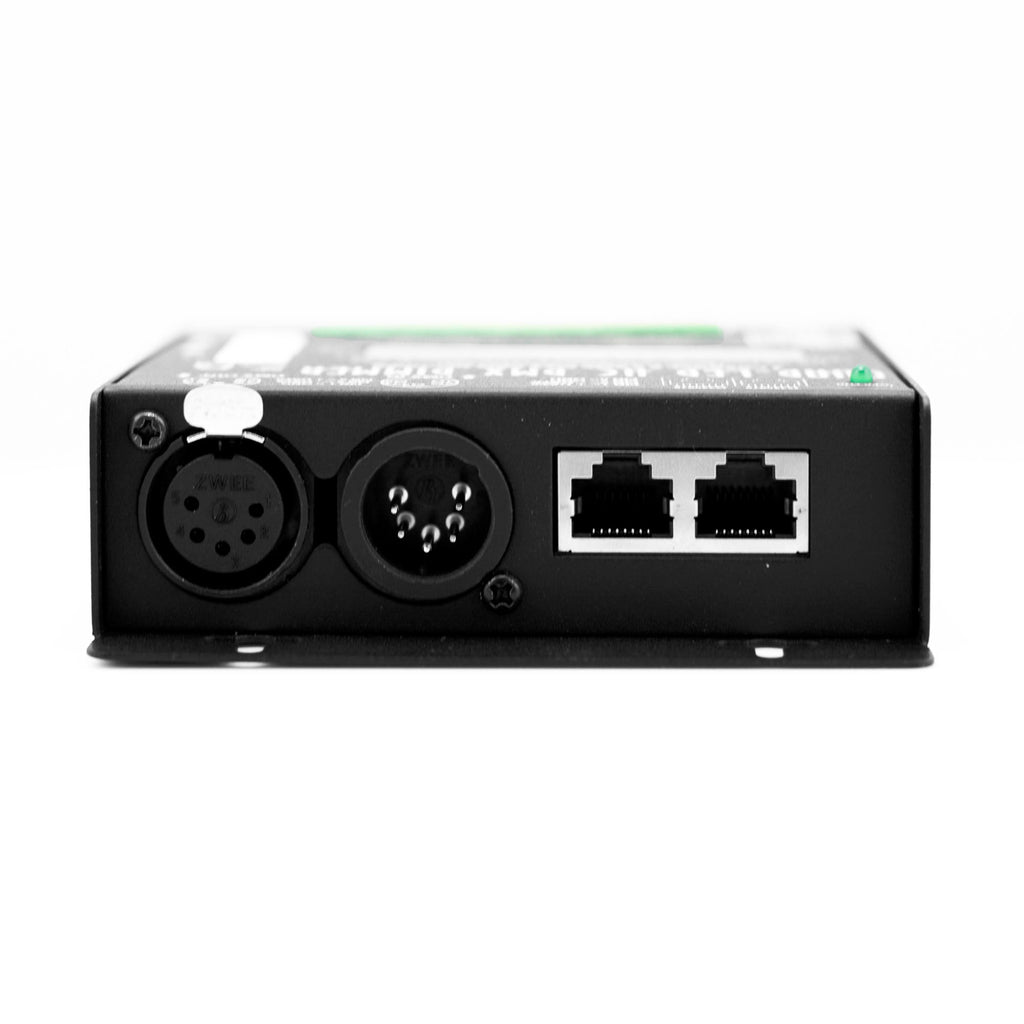

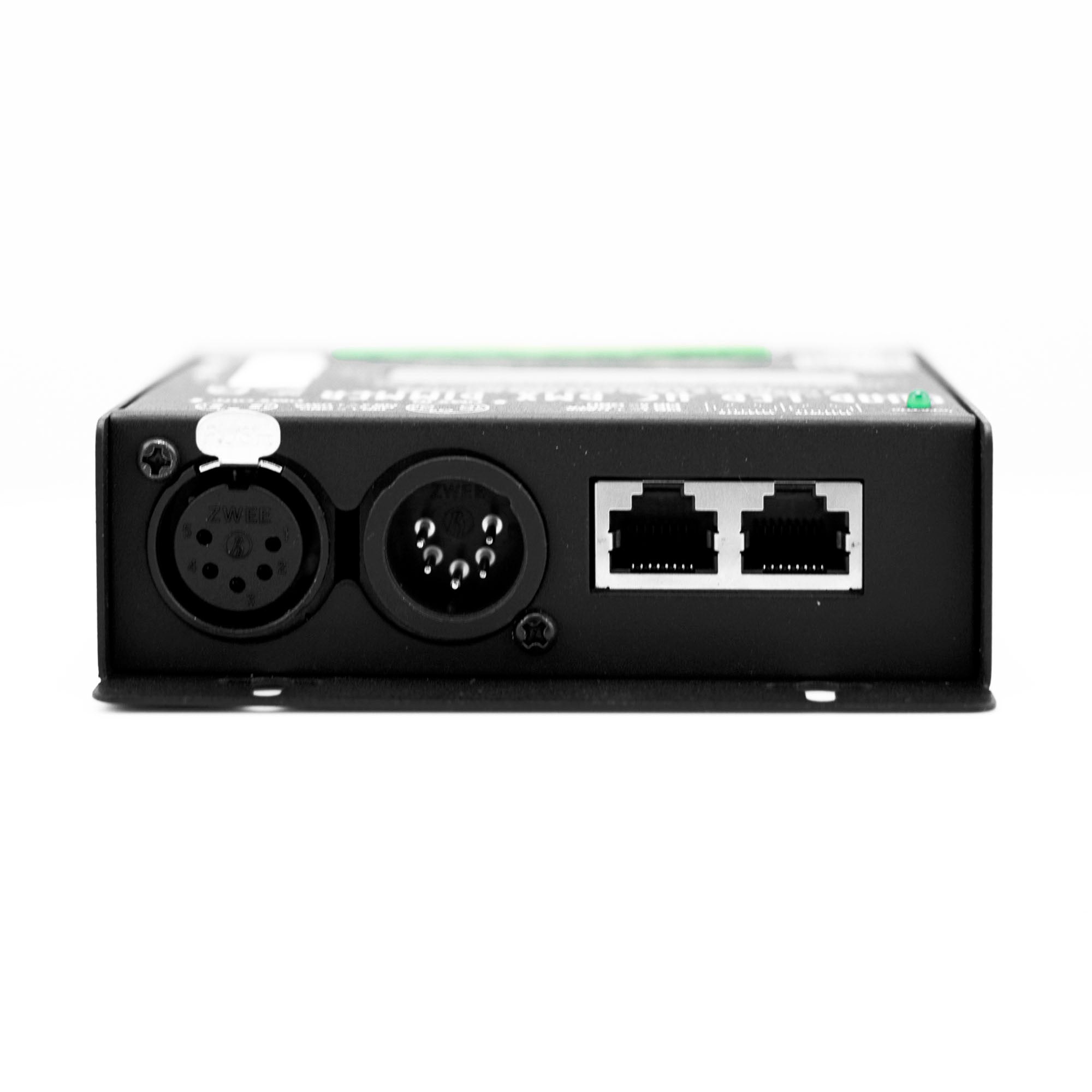

Industry-Standard DMX Connectivity – RJ45 Ethernet and 5-pin XLR in/out for seamless control integration.

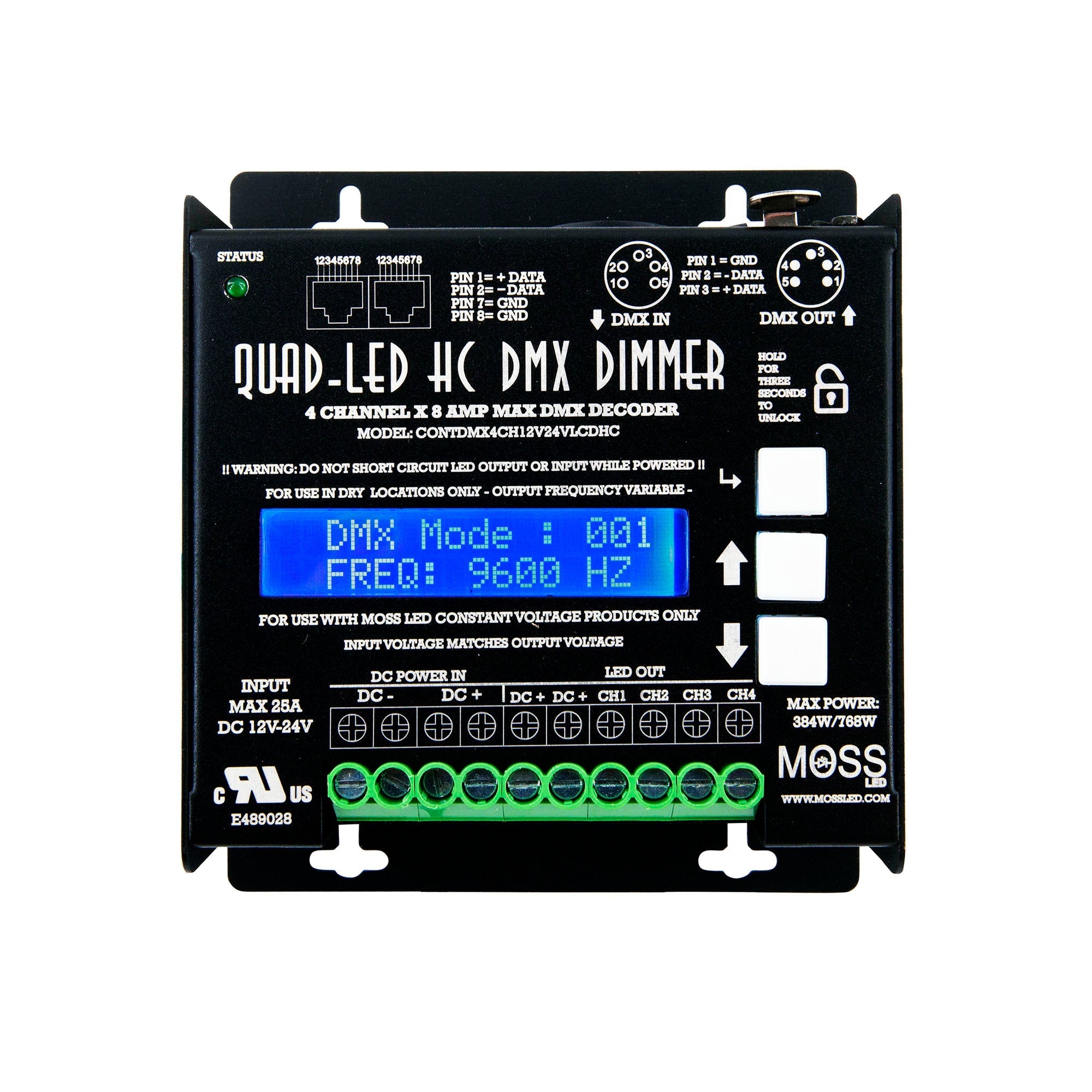

LCD Interface & Manual Mode – Easy DMX addressing, test control, and standalone operation.
Isolated DMX Input – Enhanced signal protection for interference-free performance.
High Current Handling @ 40 amps – Ensures stable, high-power LED operation.
12 ~ 24VDC input for supporting all our FlexLED tape
Note: After adjusting dimmer settings, ensure the unit remains powered for a few seconds to lock changes.
Output Current (A)
:
4 CH @ 10A/CH = Max 40A (4 CH @ 8A/CH = Max 25A for UL Standards)
Output Power (W)
:
480W @ 12V / 960W @ 24V (384W @ 12V / 678W @ 24V for UL Standards)
Supply Voltage
:
DC12V - DC24V

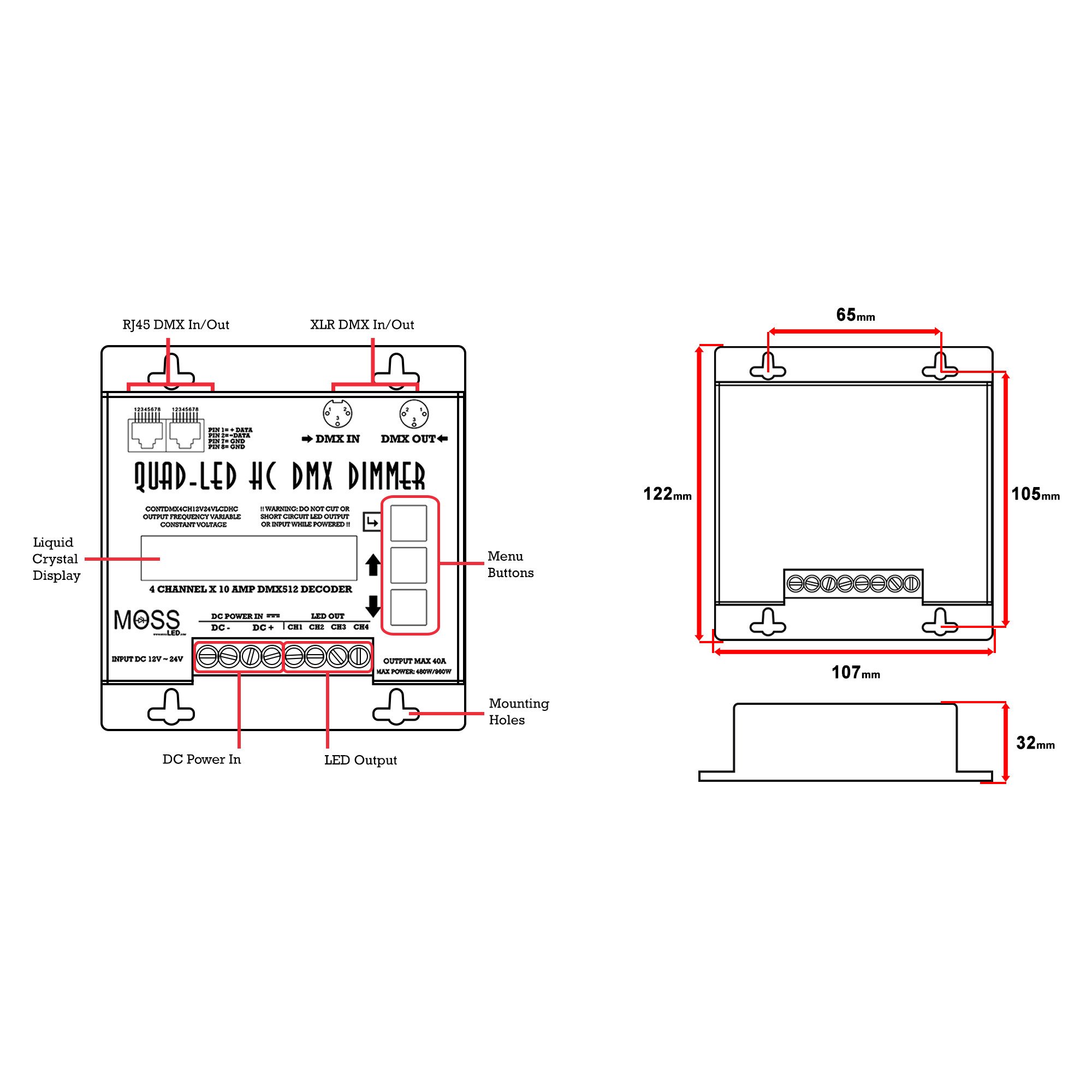

Size (inches)
:
L 4.8” x W 4.2” x H 1.2”
Working Temperature
:
-0°C to + 70 °C
Bit Rate
:
8 Bit
Weight
:
400g
IP Rating
:
IP40
PWM Frequency
:
2400Hz / 4800Hz / 9600Hz
IP Rating
:
IP40
