Description

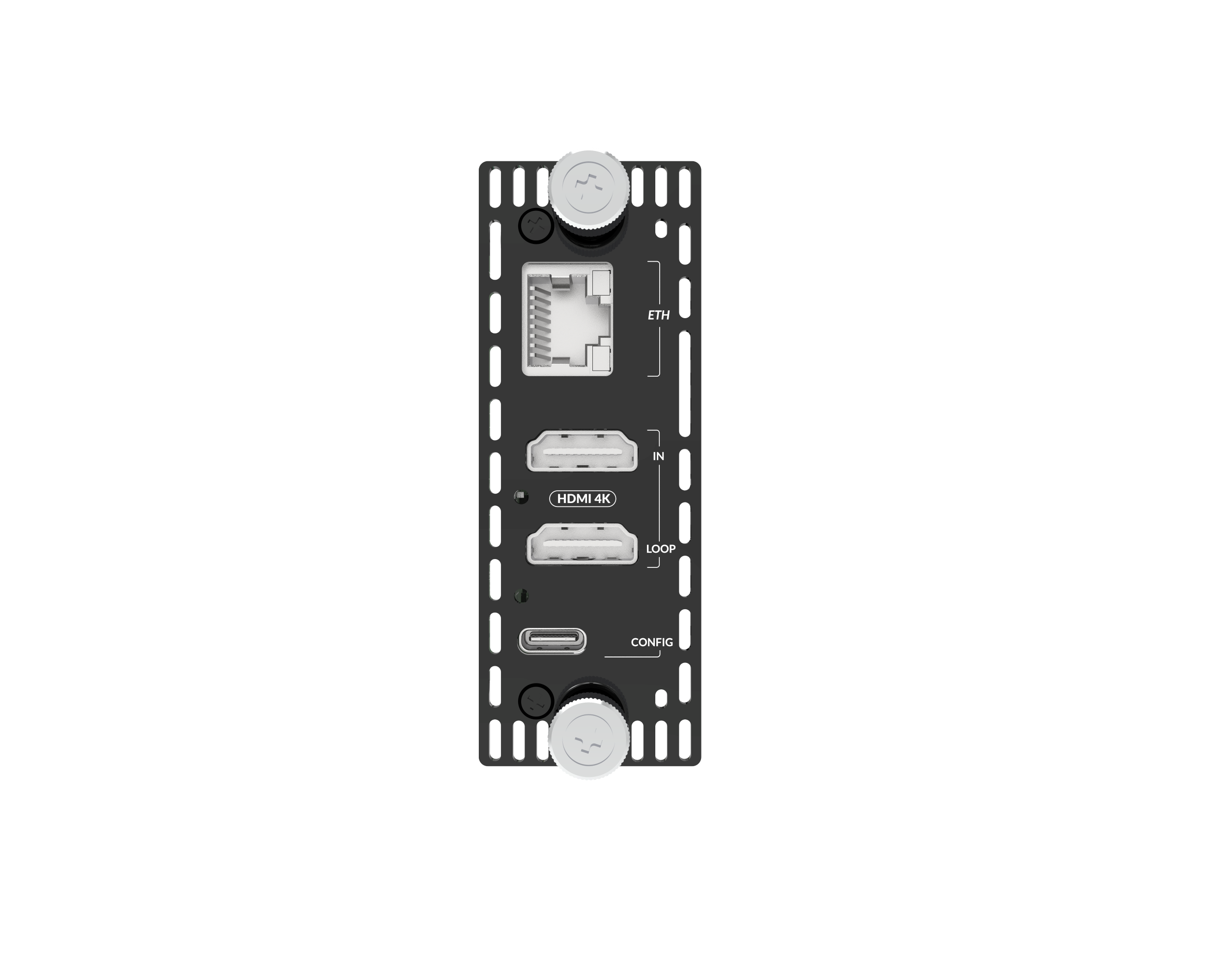

Converts a 4K HDMI input signal into high-bandwidth NDI® with loop-through
- A hot-swappable module to be installed in Magewell Modator chassis
- Supports up to 4096x2160 60fps (4:4:4) input signals including 1080p 144fps
- Centrally manageable via the Modator chassis and Magewell Control Hub
*Magewell also offers the standalone form-factor of the same specification.
Input & Loop-Through Features
- Supports for up to 4096x2160 4:4:4 60fps HDMI input and loop-through
- Supports 8-channel HDMI-embedded audio
NDI® Encoding Features
- Supports for up to 4096x2160 60fps or 1920x1080 240fps 4:2:2 8-bit NDI encoding
- Sends NDI streams across network segments
- Encodes 8-channel NDI-embedded audio
- Supports NDI 6.2
Others
- Very low latency
- Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
- HTTP-based APIs for custom integration
- 2-year warranty
