Description

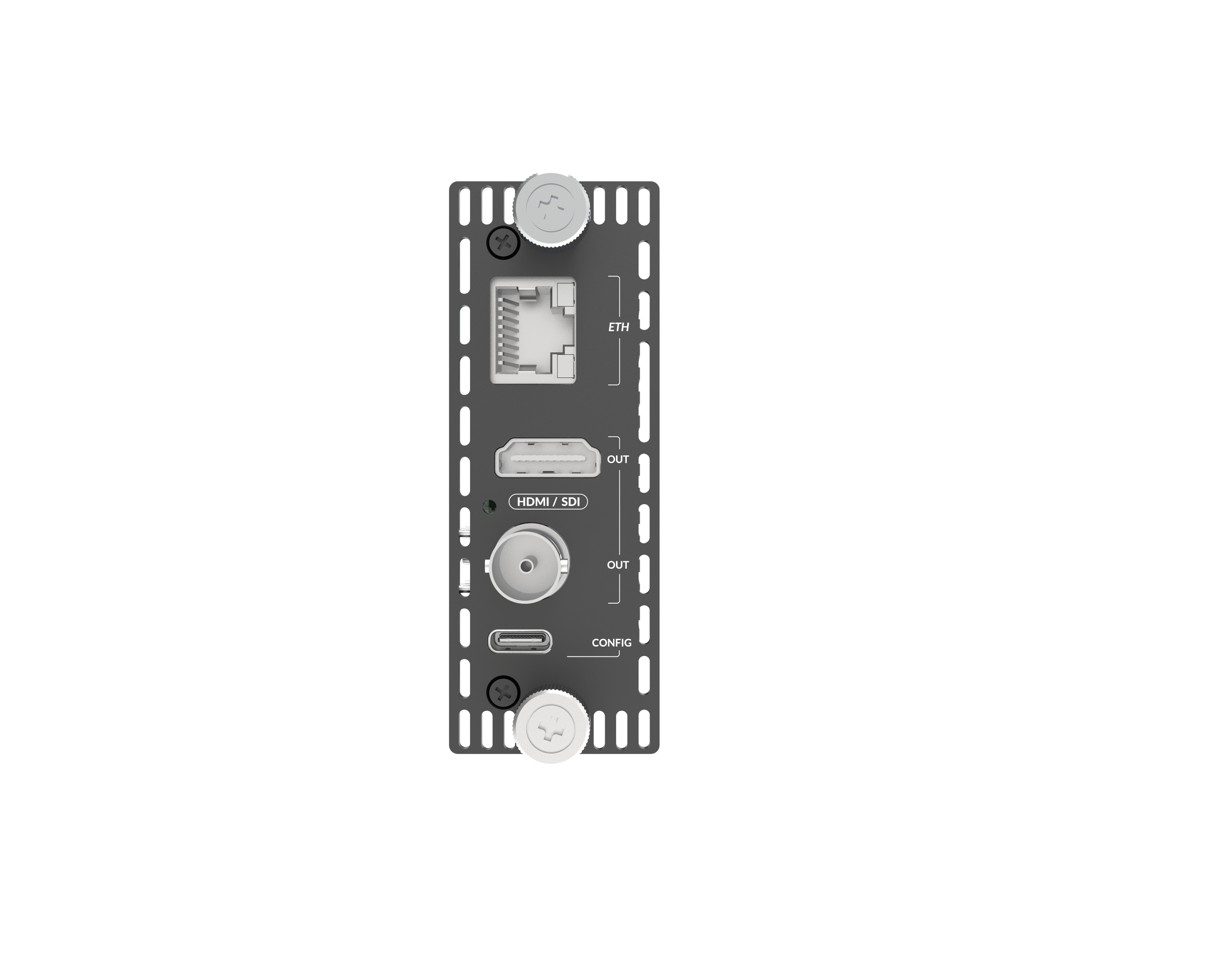

- A hot-swappable module to be installed in Magewell Modator chassis
- Decodes high-bandwidth NDI and NDI HX including earlier variants into HDMI and SDI
- Centrally manageable via the Modator chassis and Magewell Control Hub
*Magewell also offers the standalone form-factor of the same specification.
Output Features
- Support for up to 1920x1080 60fps HDMI and SDI output
- Supports 48KHz 8-channel audio output
Decoding Features
- Support for decoding up to 2Kp60 NDI streams
- Support for decoding high-bandwidth NDI and NDI HX
- Discover NDI devices across network segments
- Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU
- Supports NDI 6.3
Others
- Very low latency
- Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
- HTTP-based APIs for custom integration
- Image flip for inverted projector installations and safe area controls
- 2-year warranty
