Description

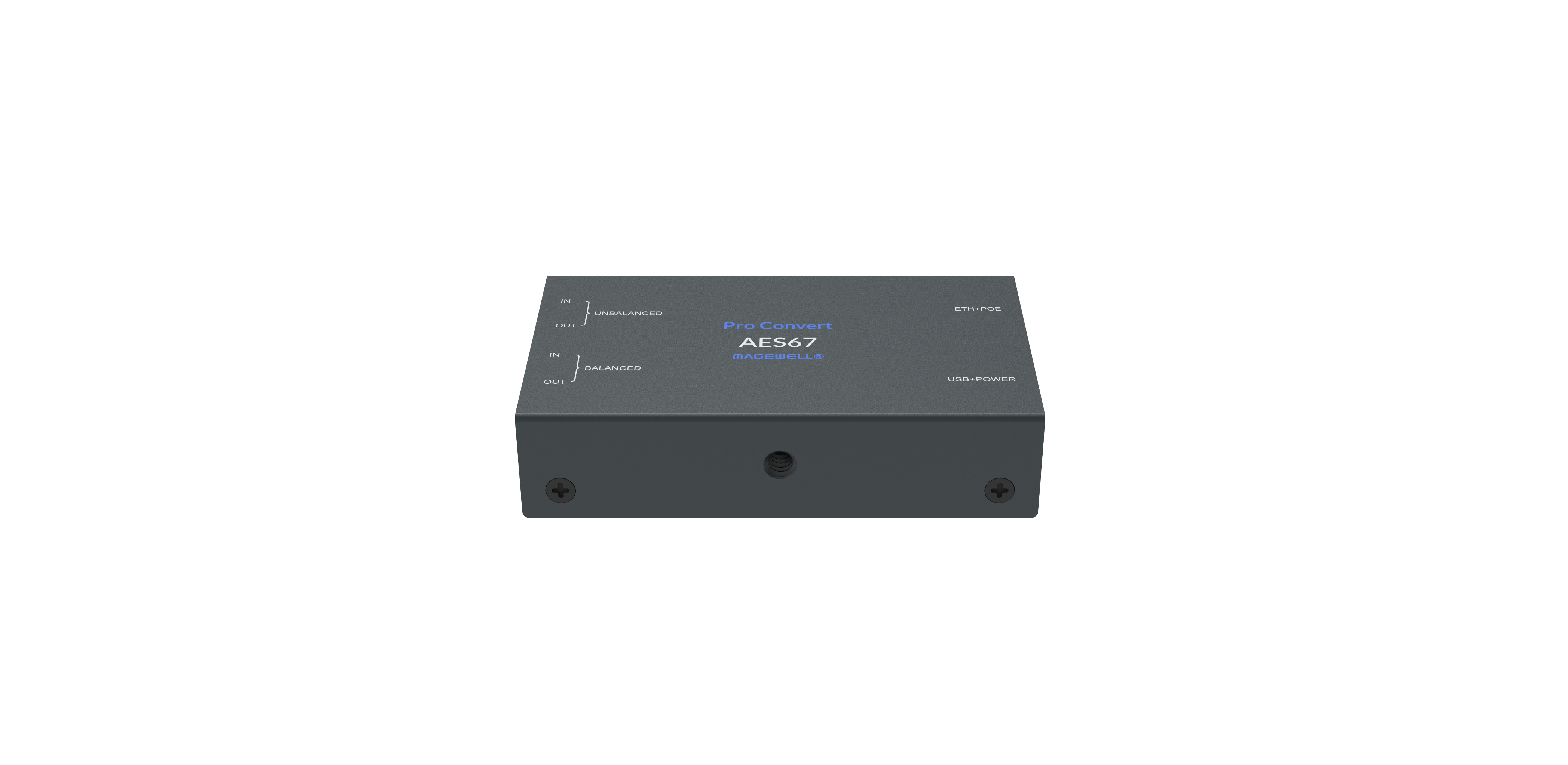

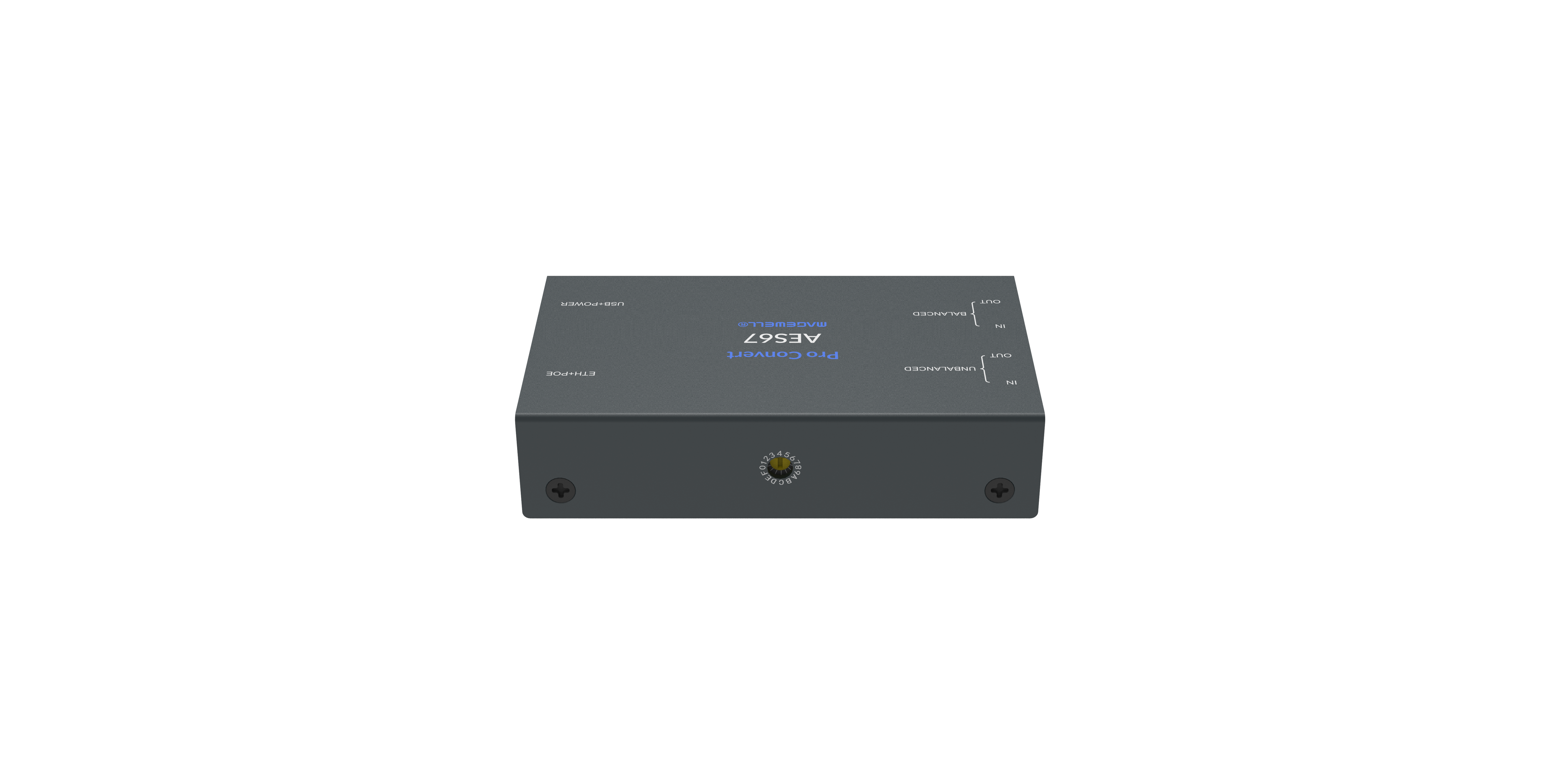

A multi-format IP audio converter and capture device
- Offers a seamless bridge between analog audio, software and IP standards including AES67, NDI®, SRT and more
- Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
- Enables mixed-technology local and remote production workflows and ProAV installations
Input/Receiving Features
Receiving up to 46 audio channels

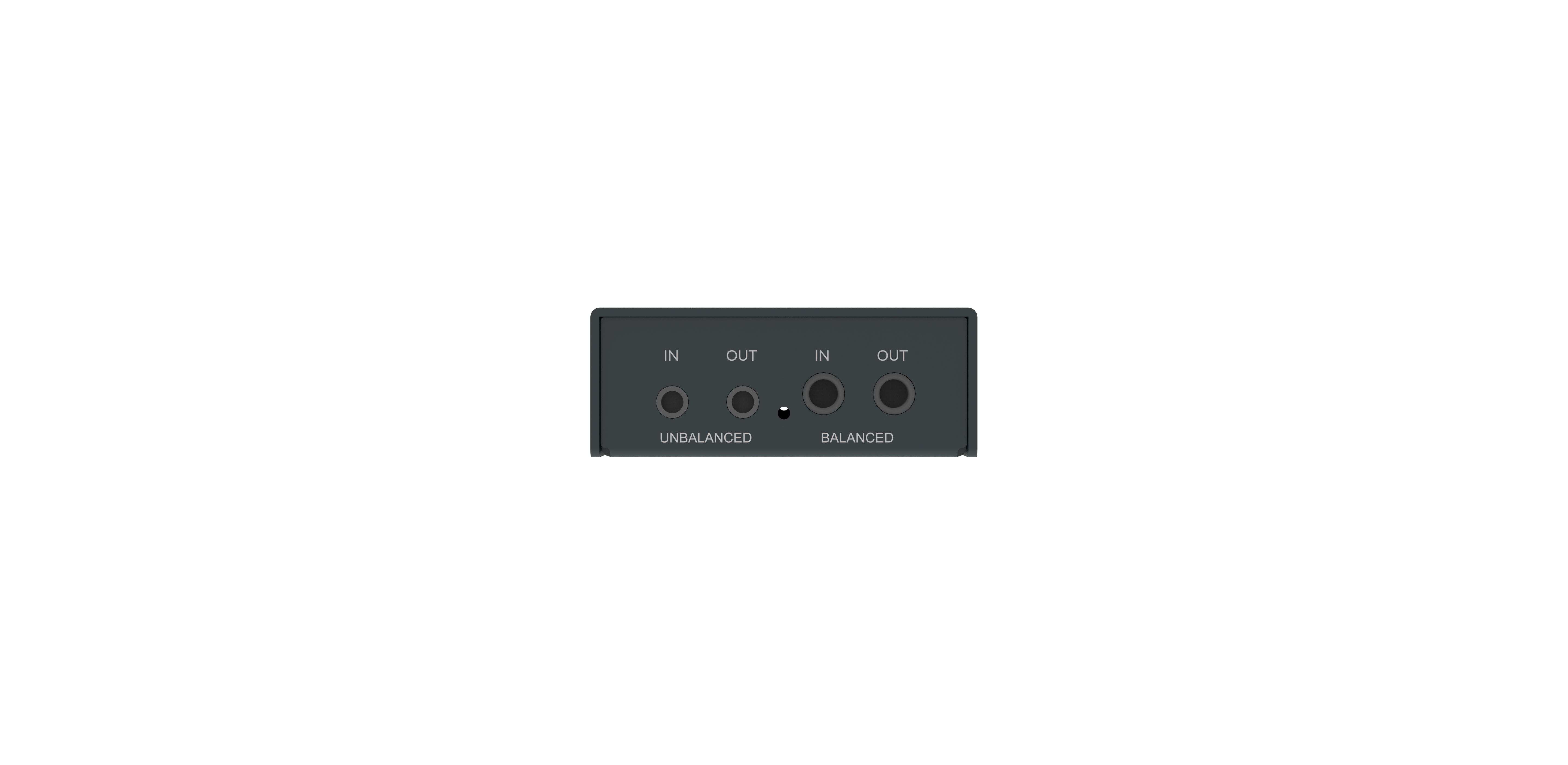

- 1 x 2-channel 3.5mm unbalanced in
- 1 x 2-channel 4.4mm balanced in
- 1 x 4-channel 24-bit/48k UAC in
- Receiving 4 x 8-channel 24-bit AES67 streams both multicasted and unicasted
- It is optional to receive 1 x 4-channel 16-bit SRT stream or 1 x 4-channel 16-bit NDI® stream or 1 x 4-channel 16-bit Icecast stream
Output/Sending Features
- 1 x 2-channel 3.5mm unbalanced out
- 1 x 2-channel 4.4mm balanced out
- 1 x 4-channel 24-bit/48k UAC out
- Multicast and unicast up to 8 x 8-channel 24-bit AES67 streams
- Encoding 1 x 4-channel 16-bit audio for Icecast/SRT/NDI® stream simultaneously
Audio routing and mixing Features
- Any analog or IP-based input channel can be routed and mixed into any analog, IP or UAC output via a web-based user interface
Others
- Plug-and-play as a UAC device
- Provide comprehensive information regarding the device and signals in real-time
- Remote control via Web GUI and Control Hub
- Support USB RNDIS/ECM
- Provide HTTP APIs
- Provide Crestron Plugins
