Description

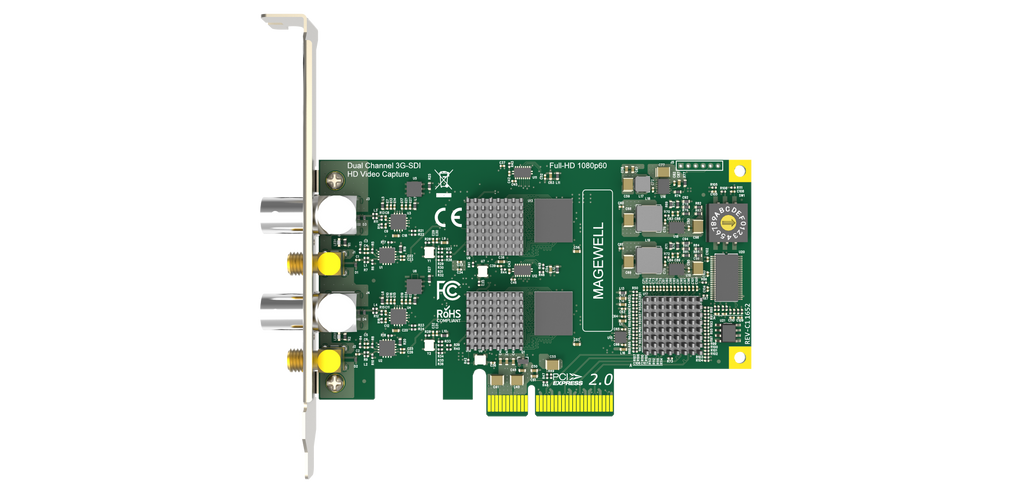

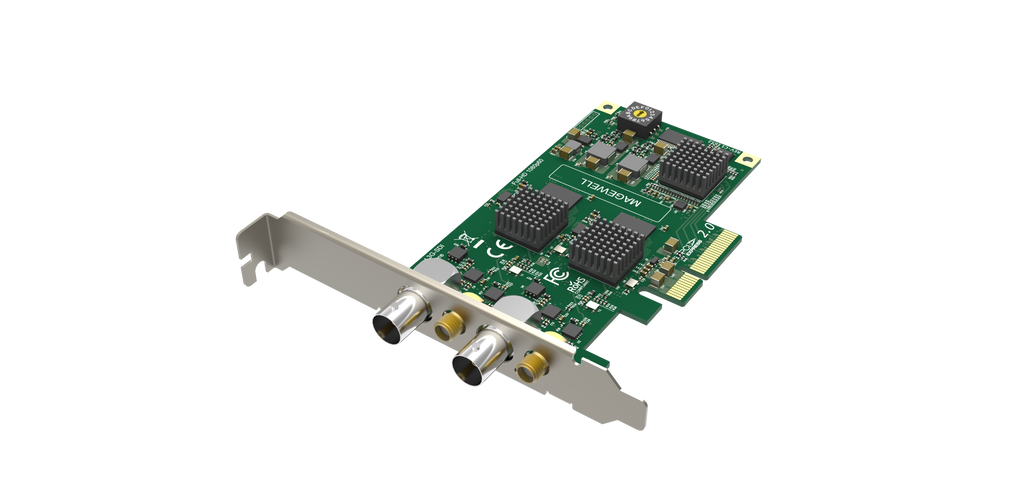

Two-channel HD capture card
- Captures SD/HD/3G/2K SDI x 2 + embedded audio
- Loop-through SD/HD/3G/2K SDI x 2 + embedded audio
Interface
Input Interface
- SD/HD/3G/2K SDI x2
- Support input resolution up to 2048×1080 pixels
Loop-through Interface
- SD/HD/3G/2K SDI x2
- Support loop-through resolution up to 2048×1080 pixels
Host Interface
- PCIe Gen2 x4
Video Engine
- 10-bit video processing
- Deinterlace
- Cropping
- Color Adjustment
- Hardware Timestamp
- Color Space Conversion
- Up/down Conversion
- Aspect Ratio Conversion
- OSD
- SG-DMA Transmission mode
Signal Detection & Support
- Auto Detection of Input Signal Format
- Time Code
- Closed Caption
Software Environment
OS
- Windows, Linux, Mac
Driver and Firmware
- Universal Driver, Updatable Firmware
Included Software
- Capture Express
Others
Multiple Capture Streams
Low Latency Mode
Multiple Devices on One Host
Mounting Hole
Continuously Work for 24hx7
High-speed Memory
LED Status Indicator
Rotary Switch
Windows, Linux and Mac SDK
2-year Warranty
