Description

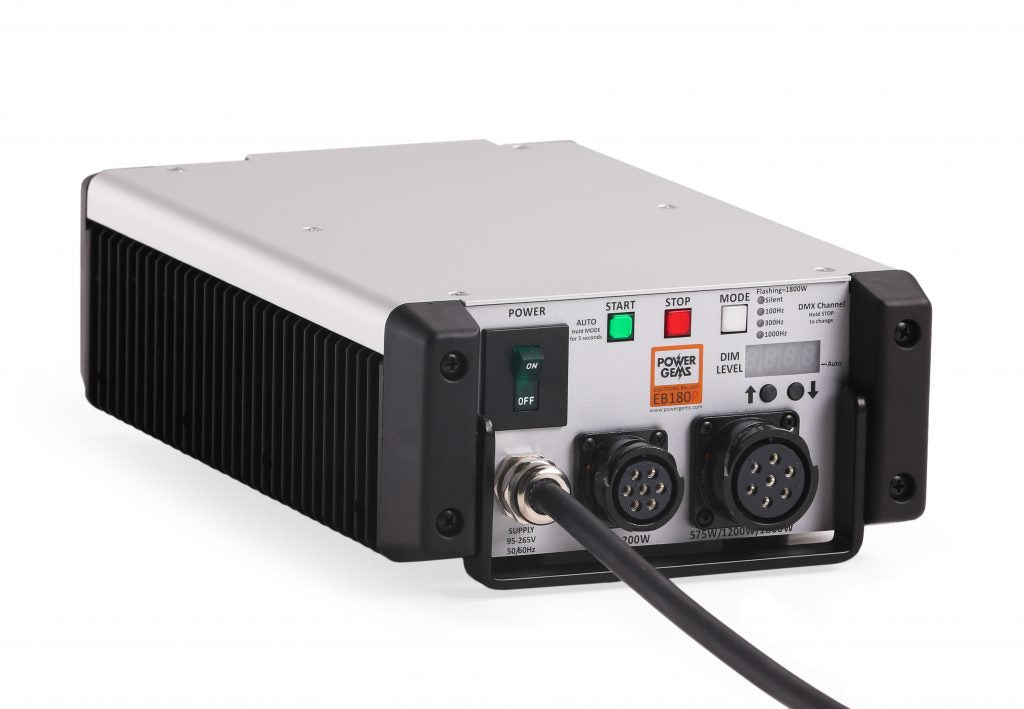

A battery-powered HMI ballast, the EB180PD can operate on regular AC mains power too. The EB180PD could be the most useful bit of kit you have: typically it can drive 6 different lamp types using universal AC mains 95V to 265V, and also battery power from 48V to 60V.
From battery power you can operate fixtures in the range 200W-575W (and in some circumstances up to 800W). Plug the EB180P ballast into the AC mains to run all those lights, and continue on up to 1800W, giving you phenomenal flexibility.
The EB180PD is based on the tried-and-tested Power Gems technology, leveraged to extend to low voltage DC operation.
Main features
Multiple wattage outputs (typically 6 wattages on 1 ballast)
1000Hz or 300Hz for high speed shooting
48-60V DC or 95-265V AC input
Compact and lightweight
Thermally-controlled fans. (Fanless on 200W)
Additional information
Max Lamp Power
1800W
Output Power Options
1.8kW, 1.2kW, 800W, 575W, 400W, 200w
Output Frequency Options
1000Hz, 300Hz, 100Hz, Silent Mode
Input Voltage Range
48-60V DC, 95-265V AC
Current Draw
8.7A@230V, 16.7A@120V, 14A@48V DC
Dmx Built In
Yes
Max Ambient Temperature
45°/113°F
Width
225mm/8.9”
Height
115mm/4.5”
Length
350mm/13.8”
Weight
7.5kg/16.6lb
Power Factor
>0.98
