Description

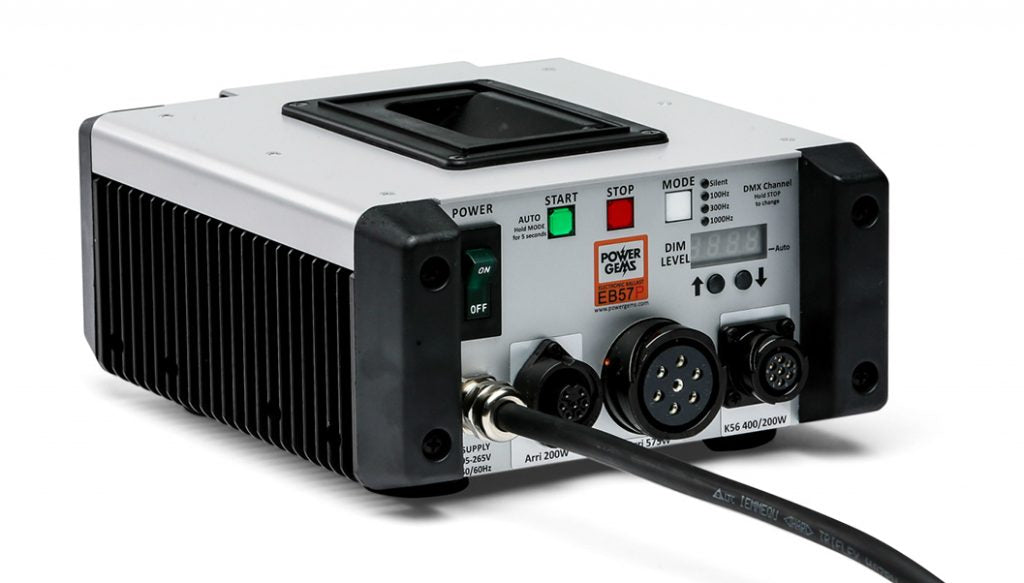

This product is unique in the market offering 3 different output sockets to drive a multitude of fixtures. Typically 7 different fixture types can be driven from this one ballast making it the ideal accompaniment for your valuable but less used collection of low power heads. Operates with fixtures from most manufacturers.
The EB57P is power factor corrected which minimises current draw thereby allowing you to make best use of the available power when you don’t have much capacity. Additionally, it ensures optimum ignition performance. The ballast is based on Power Gems modular build technology for easy servicing and comes fully loaded with 1000Hz High Speed operation, and DMX Control included as standard
Main features
3 Output sockets
Power Factor Correction
High Speed option as standard
DMX control
Modular power circuit
Additional information
Max Lamp Power
575W
Output Power Options
575W, 400W, 200W
Output Frequency Options
1000Hz, 300Hz, 100Hz. Silent Mode
Input Voltage Range
95-265V AC
Current Draw
2.6A @ 230V, 5.2A @ 120V
Dmx Built In
Yes
Max Ambient Temperature
45°C/113°F
Width
210mm/8.3″
Height
110mm/4.3″
Length
250mm/9.8″
Power Factor
>0.98
Weight
3.9kg/8.6Ib
