24000W Electronic Ballast

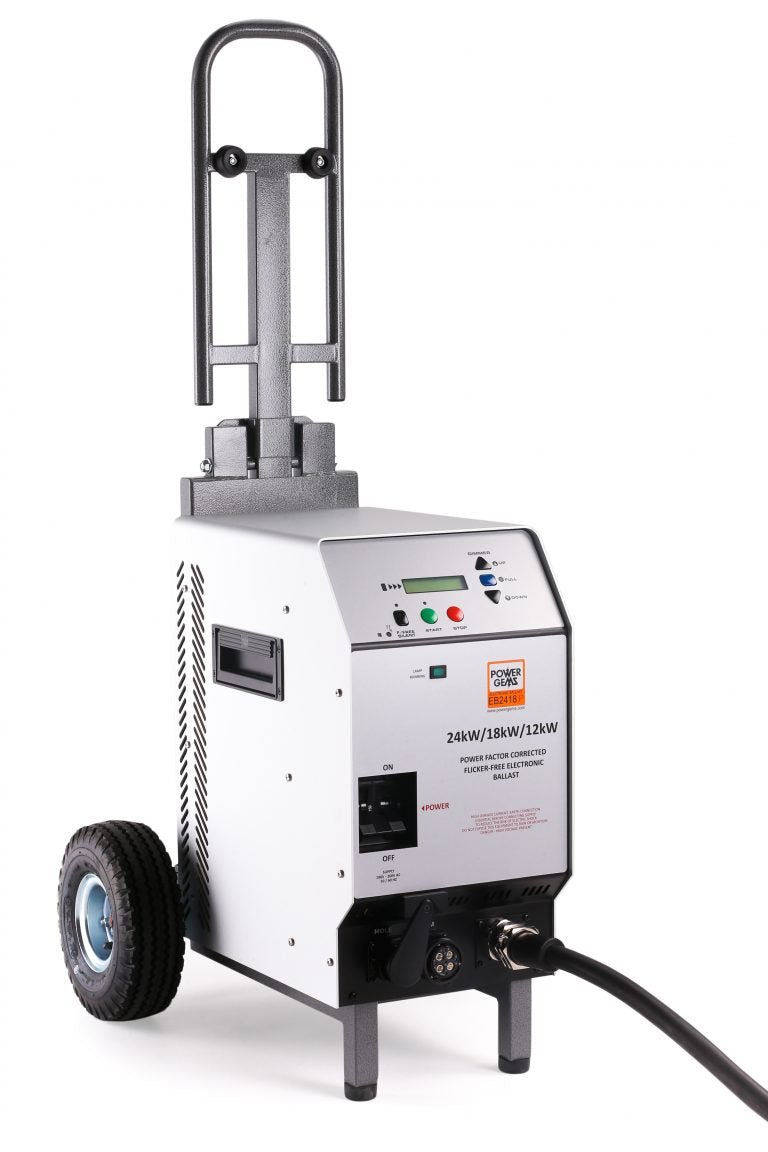

Power Gems 24000W Electronic Ballast

EB241812P
Regular price
$27,000.00
Sale price
$18,900.00

At 24,000W this is the highest power ballast available for the location lighting market. It is based on the same rugged, proven technology as our 18kW model.It is a very versatile product which can be used with 3 different lamp powers.Due to the additional cooling which is provided for 24kW operation, it can also be used as an 18kW ballast for high ambient temperature conditions.

Product Features:

Wide range of power options
Power Factor Correction
Use as an 18kW in high ambient temperatures
300Hz output option

Additional information
Max Lamp Power
24000W

Output Power Options
24kW, 18kW, 12kW

Output Frequency Options
100Hz, Silent Mode (300Hz optional)

Input Voltage Range
195-265V AC

Current Draw
112A@230V

Power Factor
>0.98

Dmx Built In
Yes

Max Ambient Temperature
45°C/113°F

Width
330mm/13"

Height
555mm/21.8"

Length
490mm/19.3"

Weight
56kg/124lb
