Description
The PixlArt 416 is a state-of-the-art pixel control unit designed for high-capacity lighting applications in film, television, live events, and architectural environments. Supporting 16 universes of pixel output, it offers seamless Art-Net and sACN integration, along with a dedicated DMX512 universe for expanded control. With robust power handling, individual fused outputs, and high-density PCB design, the PixlArt 416 delivers exceptional reliability, efficiency, and performance.
Key Features:
16 Universes of Art-Net/sACN Pixel Output – Handles large-scale pixel arrays with precision.

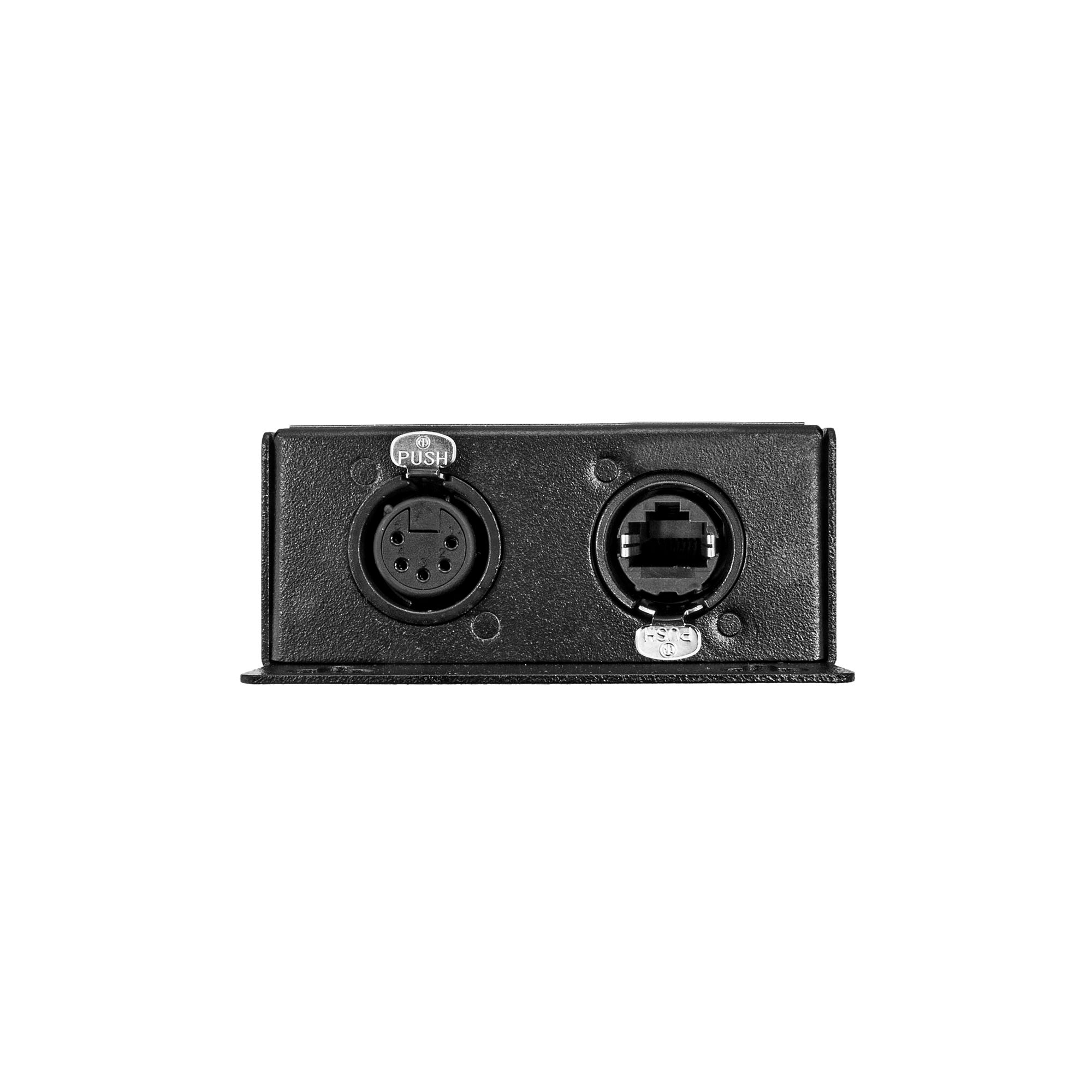

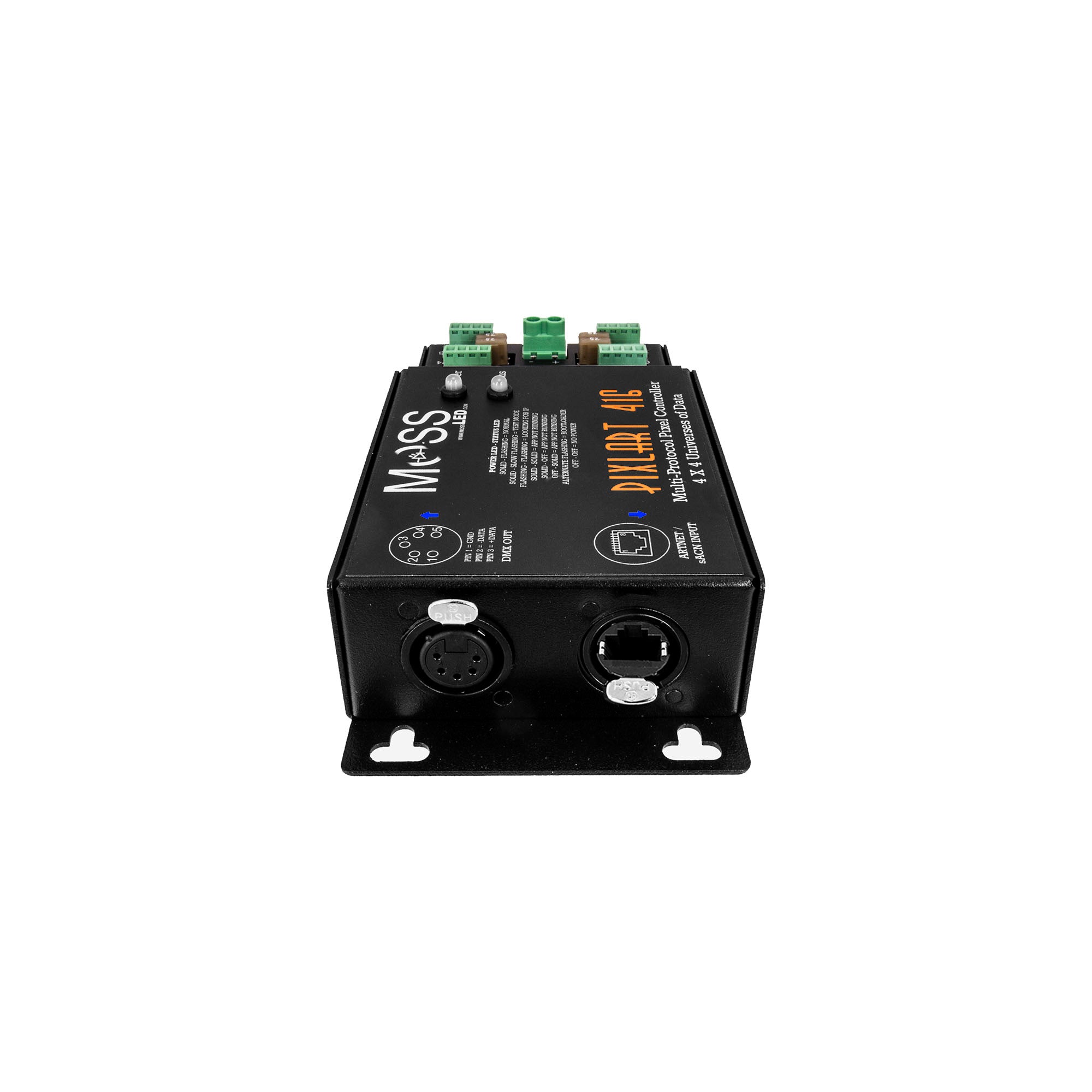

DMX512 Bridge – Features one additional DMX512 universe output (E1.31 to DMX) via 5-pin XLR.
High-Capacity Pixel Support – Controls up to 2720 RGB pixels (680 per output) or 2048 RGBW pixels (512 per output).

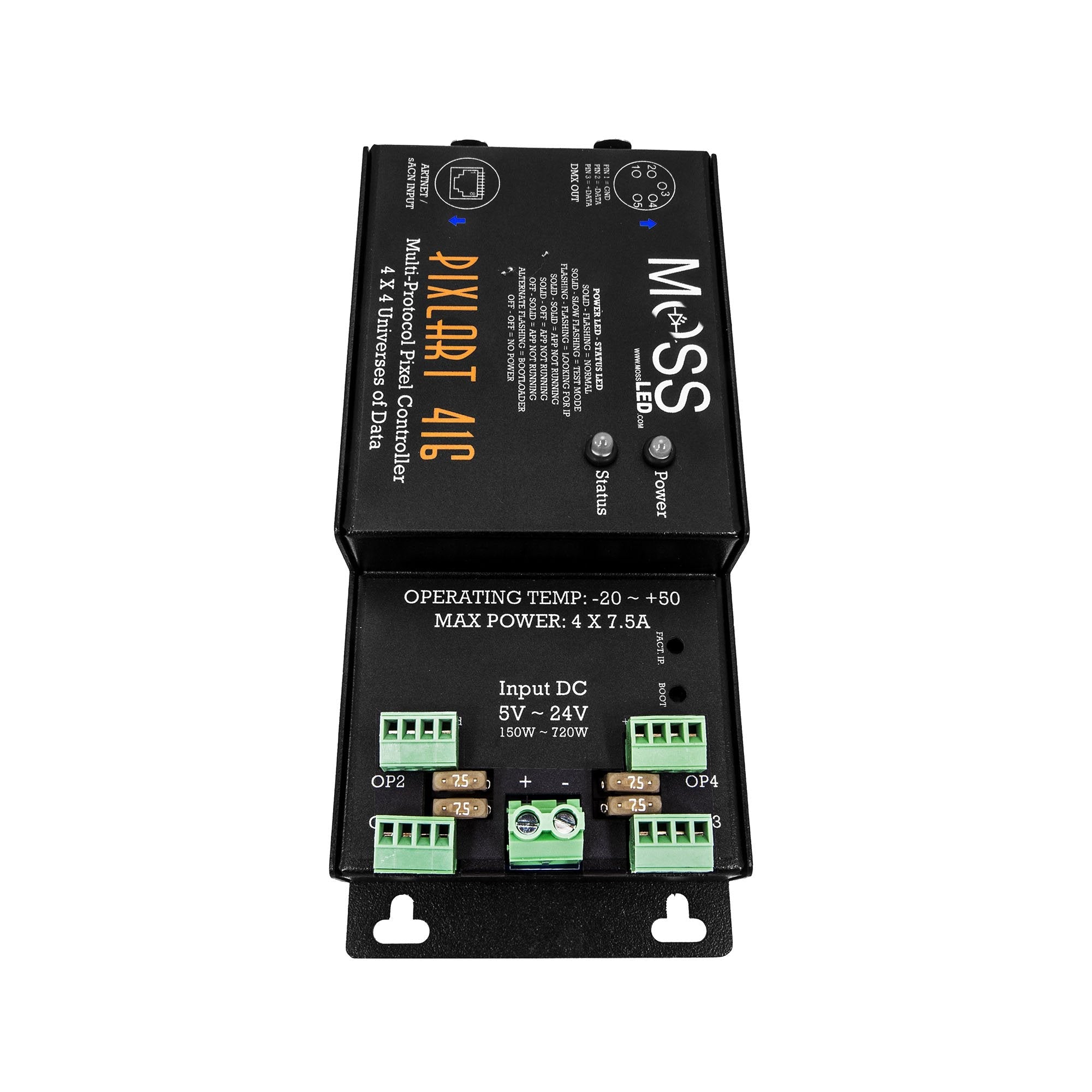

4 Independent Pixel Outputs – Uses 4-position terminal blocks, each protected by a 5A mini-blade fuse (upgradeable to 7.5A).
Reliable Power Handling – 30A single power input for stable, high-output performance.
Advanced Circuit Design – 4-layer PCB with high copper density for enhanced efficiency.
Versatile Connectivity – Seamlessly integrates with lighting consoles, media servers, and pixel mapping software.

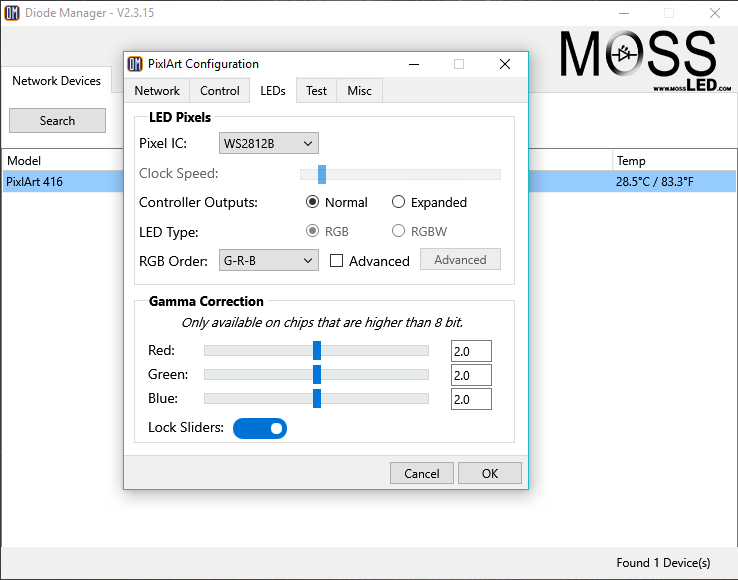

Over 37 pixel protocols supported
The PixlArt 416 is the ultimate solution for large-scale pixel control, delivering precision, power, and flexibility for complex lighting installations.
DC Input (V x A) : 5 - 24V DC (Output Voltage Matches Input Voltage) x 0.25A
Output Current (A) : 30A (4 X 7.5A)
Output Power (W) : 720W MAX - Input Matches Capacity of Power Supply
Agency Approvals : None
Size (inches) :
L 8.31" x W 3.52" x H 1.79"
Pixel Protocols :
TLS3001, SM16716, WS2801, LPD6803, WS2811, WS2812, WS2812B, MBI6020, TM1803, TM1804, MY9221, MY9231, APA102, SK6812, UCS1903, UCS1904, P9813, SK9822, DMX512P, MBI6023, SM16714, SK6813, TM1914, SM16703, SM16704, APA104, APA109, WS2814, WS2815, GS8208, MY9291, TM1814, UCS8903, UCS9812, WS2813,
SK6822, UCS2904,
Channel Count : 2,048 X 4 Outputs (8,192 Total)
Control Protocols : sACN or ARTnet
Protections: : short circuit, over voltage, overload, over current, over temp
DC Input Connector : Two Pole Terminal Block
Housing : Aluminum housing
Indicator : Front Red/Green LED - See Specification Sheet for Details
Output Connector Type : 4 X 4 Position Terminal Block
Output Connector Lock : None
Output Polarity : + / Clk / Data / Gnd
Weight (lb) : 0.72
Mounting Options : Rack Ear Mounting - Surface Mounting
Cooling : Passive
:
Product Type : LED Pixel Control Product
MFR Product Family : PIXLART
Ambient Operating Temperature : -40C to 70C
Chassis Color : Black
Wiring Color Codes Output : *Refer to Specification Sheet
