Description

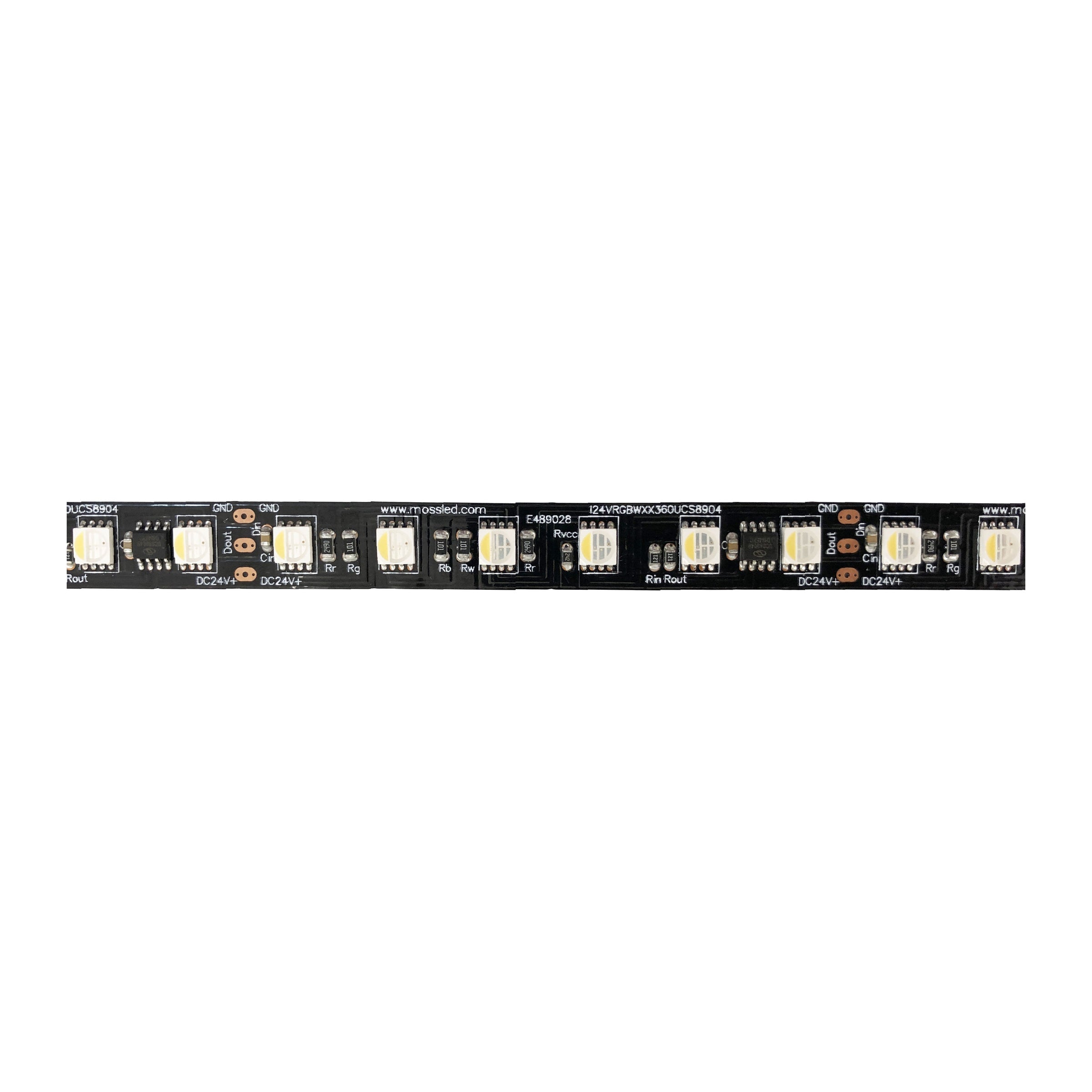

The Pixel FlexLED 24V RGBW is a groundbreaking high-CRI pixel-controlled LED strip, designed for vibrant, customizable lighting effects with enhanced brightness and extended run lengths. Unlike standard pixel strips, this 24VDC version controls every 6 LEDs, reducing power drop while maintaining seamless colour transitions. Engineered for creative lighting applications, this mid-frequency pixel tape is compatible with PixlArt 416 controllers via ArtNet or sACN or any controller that supports the UCS8904 protocol. 16-bit dimming creates smooth dazzling effects for film, television, and architectural lighting.
Key Features:
High-CRI Pixel RGBW LEDs – 72 LEDs per meter for rich, vibrant colours and true white light.
Group Chip Control – Controls every 6 LEDs for efficient power management and smooth effects.
Extended Run Lengths – 24VDC power reduces voltage drop, allowing for longer installations.
Mid-Frequency Pixel Control – Uses UCS8904 protocol, which may flicker on-camera depending on settings.
Compatible with PixlArt 416 – Seamlessly integrates with ArtNet or sACN control systems.
Indoor & Outdoor Options – 3M adhesive backing for indoor installs; silicone or mechanical mounting required for waterproof versions.
Custom Configurations Available – Tailor pixel density, PCB colour, and colour temperatures to your needs.
Installation & Power Considerations:
PWM frequency is fixed – Choose the right pixel strip based on your camera settings (for flicker-free operation, select high-frequency pixel tape like UCS7604, GS8208 or APA102). UCS8904 can be flicker-free up to 133fps.
Avoid voltage drop – Position power supplies close to LED strips and power from multiple locations if needed.
Independent power supply use – The power supply for the controller does not need to match the LED strip power source.
Verify voltage at the LED strip contact pads during installation for consistent performance.
Additional Details:
Maximum run length: 10m (32.81’) – Power required at both ends to reduce line loss.
Controller, power supply, and extension cables sold separately.
Quantity discounts and custom colour temperatures available.
Pricing is for 5 meters (custom lengths available)
Soldering Guidelines:
Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
The Pixel FlexLED 24V RGBW delivers stunning, smooth, 16-bit high-quality lighting effects with responsive dimming and extended power capabilities, making it ideal for large-scale professional installations.
Product Type : 72 LED/meter 72 LED/meter 72 LED/meter
Product Code : I24VRGBW56360UCS8904 I24VRGBW41360UCS8904 I24VRGBW27360UCS8904
CRI : 95+ 95+ 95+
Kelvin : 5600k 4100k 2700k
PCB Color : Black Black Black
Current, Rating : 0.83 A / meter 0.83 A / meter 0.83 A / meter
Voltage : 24 VDC 24 VDC 24 VDC
Wattage : 20 W / meter 20 W / meter 20 W / meter
CC / CV : Constant Current Constant Current Constant Current
IP Rating : IP43 IP43 IP43
Lumens @ Full : 1200 lm / meter 1054 lm / meter 930lm / meter
Lumen / Watt : 60 52.7 45
Lifetime* : 40,000 hours 40,000 hours 40,000 hours

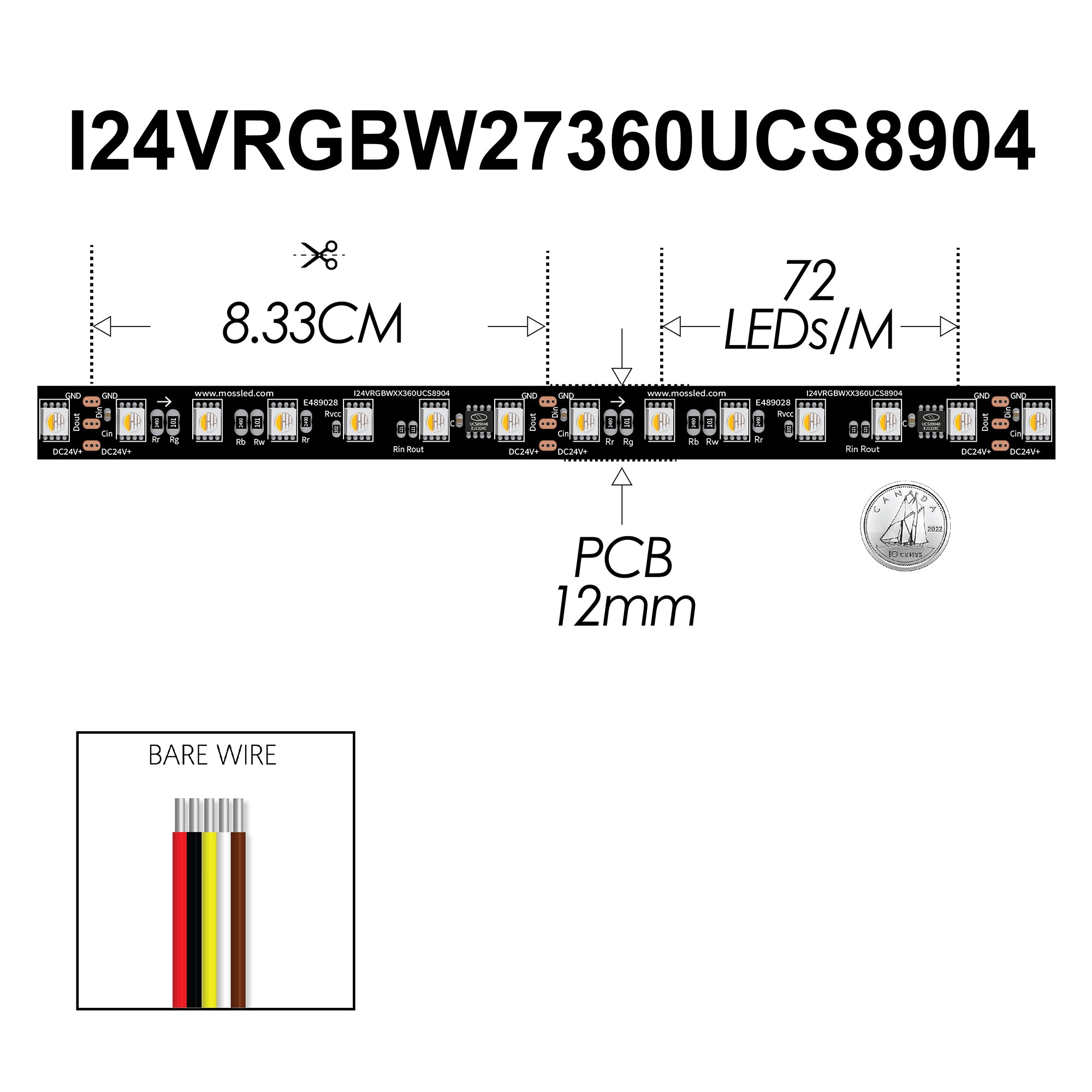

Cutting Length : 8.33 CM 8.33 CM 8.33 CM
LED Quantity : 72 LED / meter 72 LED / meter 72 LED / meter
Number of Contacts : 3 3 3
LED Type : UCS-8904B UCS-8904B UCS-8904B
Copper Quantity : 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70°C 70°C 70°C
Temperature, Operating, Minimum : -40°C -40°C -40°C
Agency Ratings : UL - E489028, CE, RoHS, UKCA UL - E489028, CE, RoHS, UKCA UL - E489028, CE, RoHS, UKCA
PCB Width : 12 MM 12 MM 12 MM
Maximum Recommended Length : 5 meters 5 meters 5 meters
Viewing Angle : 120 degree 120 degree 120 degree
Adhesion : TESA 4965 TESA 4965 TESA 4965
Wavelength A : 620 ~ 625nm 620 ~ 625nm 620 ~ 625nm
Wavelength B : 515 ~ 520nm 515 ~ 520nm 515 ~ 520nm
Wavelength C : 460 ~ 465nm 460 ~ 465nm 460 ~ 465nm
Wavelength D : N/A N/A N/A
Data Transmission Speed : 800 kbps 800 kbps 800 kbps
Refresh Rate : 133 FPS 133 FPS 133 FPS
Bit Rate : 4x16=64 Bit 4x16=64 Bit 4x16=64 Bit
Data Clock Frequency : N/A N/A N/A
PWM Dimming Frequency : 4 KHZ 4 KHZ 4 KHZ
