Description

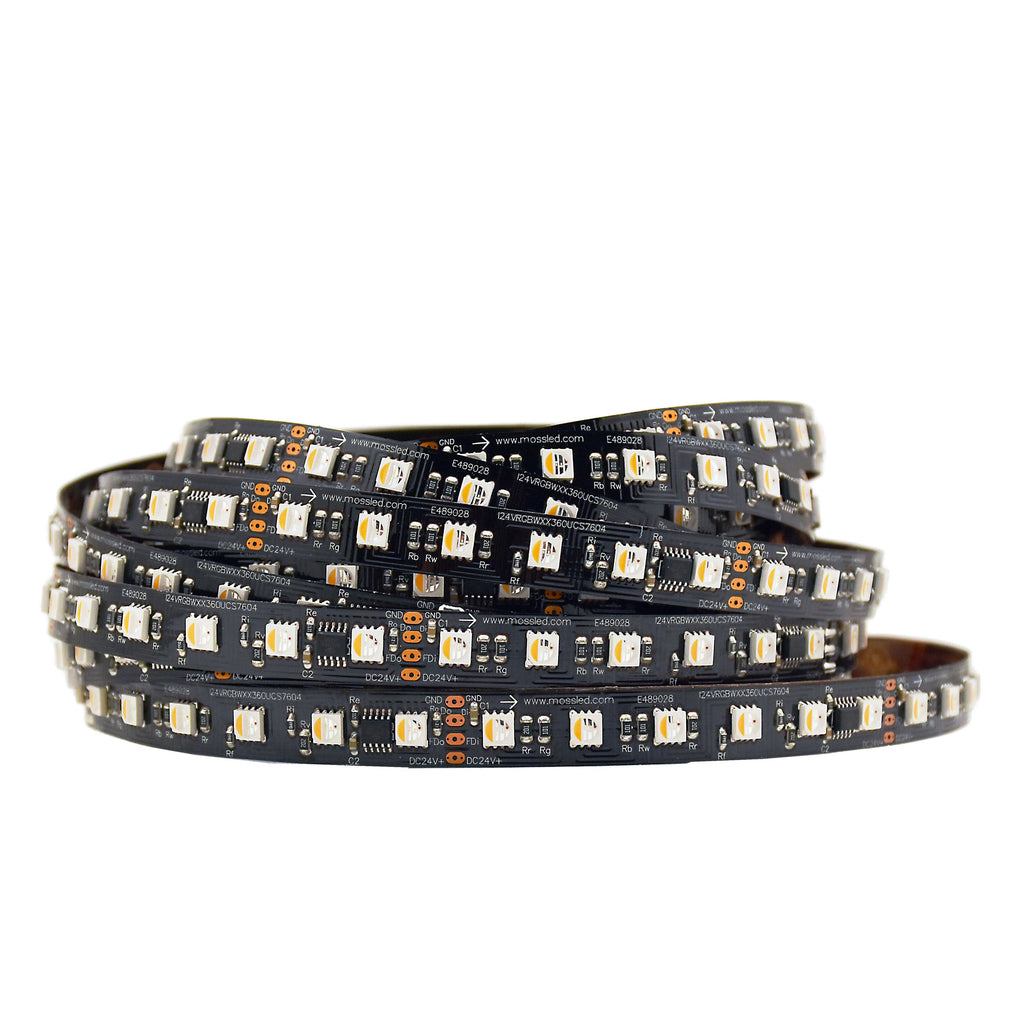

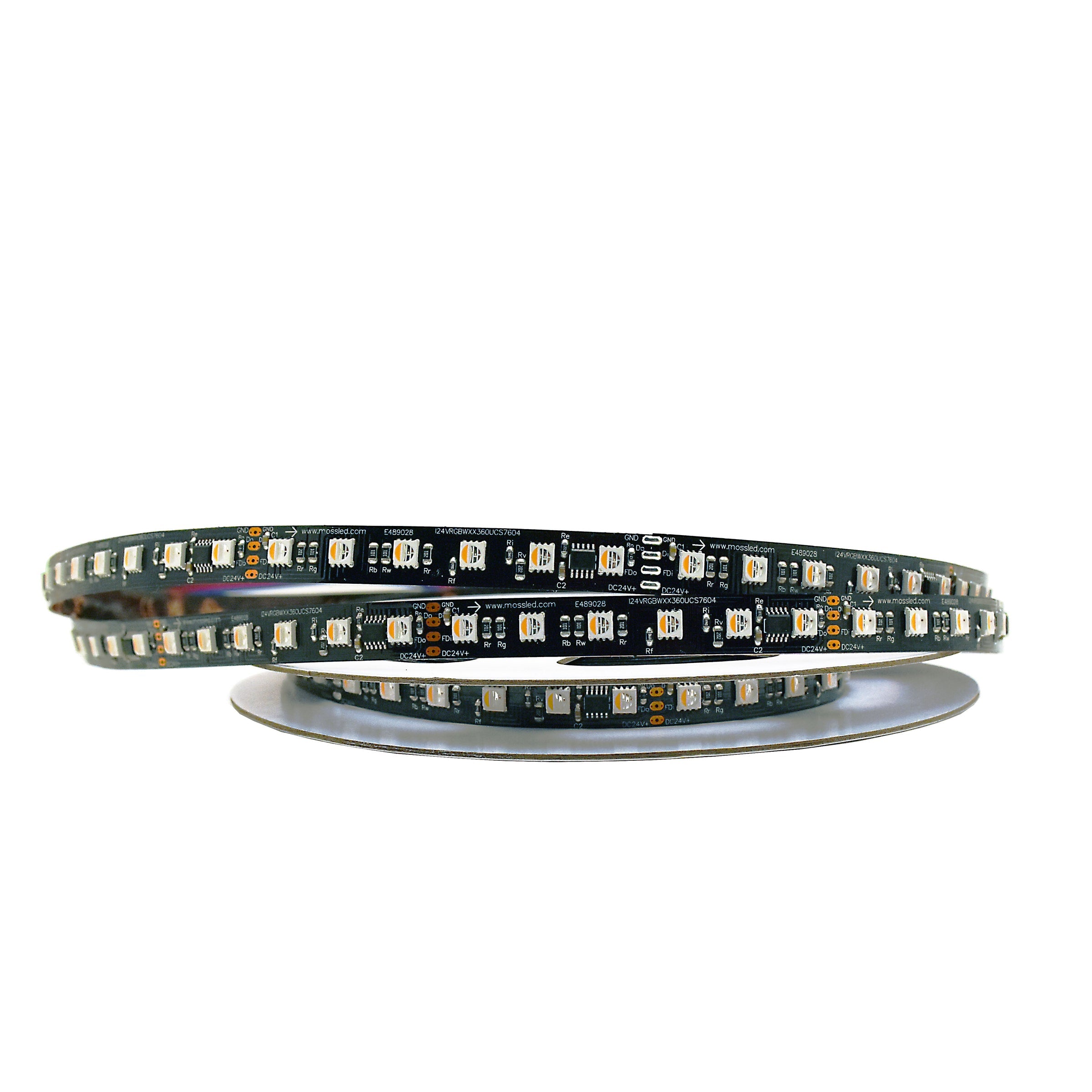

The Pixel FlexLED 24V RGBW is the world’s first high-CRI, high-frequency pixel strip with grouped control, delivering unmatched brightness, rich colour blending, and smooth low-end dimming. Powered by a 16-bit pixel providing smooth low-end dimming, each group of 6 LEDs is addressable, allowing dazzling effects while optimizing performance and power efficiency across longer runs.
Operating at an ultra-high 16kHz PWM frequency, this strip is flicker-free up to 533fps and ideal for high-speed camera work in film, broadcast, and theatrical environments. Designed with redundancy in mind, the strip includes a backup data line for mission-critical installations. Compatible with Mk3 controllers via ArtNet or sACN or any pixel controller that supports UCS7604.
Key Features:
• Group-Controlled Pixel Output – Individually addressable every 6 LEDs
• Ultra-High 16kHz PWM – Flicker-free performance up to 533fps
• High CRI RGBW Output – Same premium LEDs as our FlexLED RGBW AIO series
• Smooth Dimming – Ultra-smooth 16-bit dimming
• Built-In Data Redundancy – Secondary data line for fail-safe installations
• Available in Indoor, Weatherproof, and Waterproof versions
Installation & Power Considerations:
• Fixed PWM Frequency – 16kHz for safe high-speed camera use
• Prevent Voltage Drop – Power from both ends and inject power mid-strip for long runs
• Separate Power Sources – Controller and strip can use independent power supplies
• Verify Voltage During Testing – Use a voltmeter at contact pads to confirm consistent voltage
Additional Details:
• Maximum run length: 10 meters (32.81’) – with power injection at both ends
• Controller, power supply, and extension cables sold separately
• Quantity discounts and custom specifications available (CCT, pixel density, PCB colour)
• Pricing is for 5 meters (16.4’) – custom lengths available
Soldering Guidelines:
• Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
• Limit heating of each pad to 3 seconds to prevent delamination
The Pixel FlexLED 24V RGBW is our brightest and most reliable pixel strip yet—engineered for professionals who demand flawless performance, vibrant colour, and seamless control.
Product Type : 72 LED/meter 72 LED/meter 72 LED/meter
Product Code : I24VRGBW56360UCS7604 I24VRGBW41360UCS7604 I24VRGBW27360UCS7604
CRI : 95+ 95+ 95+
Kelvin : 5600k 4100k 2700k
PCB Color : Black Black Black
Current, Rating : 1.08 A / meter 1.08 A / meter 1.08 A / meter
Voltage : 24 VDC 24 VDC 24 VDC
Wattage : 25.9 W / meter 25.9 W / meter 25.9 W / meter
CC / CV : Constant Voltage Constant Voltage Constant Voltage
IP Rating : IP43 IP43 IP43
Lumens @ Full lm / meter : Combined:1399
R: 234
G: 623
B: 118
W: 424 Combined:1440
R: 234
G: 623
B: 118
W: 465 Combined:1457
R: 234
G: 623
B: 118
W: 482
Lumen / Watt : 75 75 75
Lifetime* : 40,000 hours 40,000 hours 40,000 hours

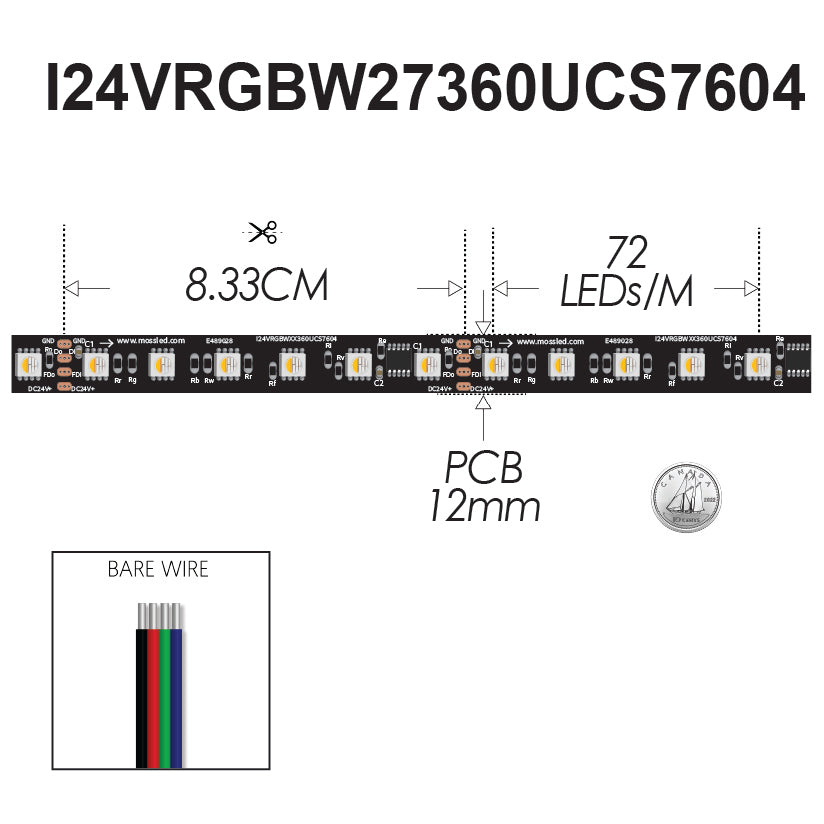

Cutting Length : 8.33 CM 8.33 CM 8.33 CM
LED Quantity : 72 LED / meter 72 LED / meter 72 LED / meter
Number of Contacts : 4 4
4
LED Type : UCS-7604 UCS-7604 UCS-7604
Copper Quantity : 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70°C 70°C 70°C
Temperature, Operating, Minimum : -40°C -40°C -40°C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 12 MM 12 MM 12 MM
Maximum Recommended Length : 5 meters 5 meters 5 meters
Viewing Angle : 120 degree 120 degree 120 degree
Adhesion : TESA 4965 TESA 4965 TESA 4965
Wavelength A : 620 ~ 625nm 620 ~ 625nm 620 ~ 625nm
Wavelength B : 515 ~ 520nm 515 ~ 520nm 515 ~ 520nm
Wavelength C : 460 ~ 465nm 460 ~ 465nm 460 ~ 465nm
Wavelength D : N/A N/A N/A
Data Transmission Speed : 660 kbps 660 kbps 660 kbps
Refresh Rate : 25 FPS 25 FPS 25 FPS
Bit Rate : 4x16=64 Bit 4x16=64 Bit 4x16=64 Bit
Data Clock Frequency : N/A N/A N/A
PWM Dimming Frequency : 16 KHZ 16 KHZ 16 KHZ
