Description

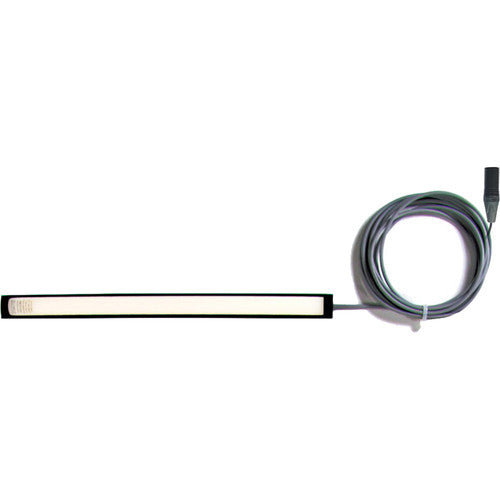

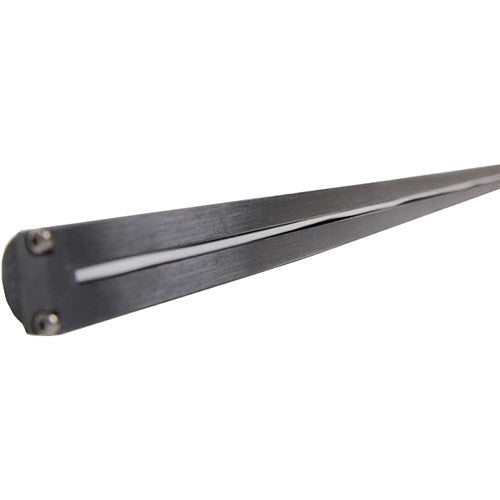

The Pipeline 1' Raw 5600K Pipe with 10' Cable and 3-Pin XLR Connector from BBS is a remote phosphor LED softlight with a wide coverage of 180 degrees and a high TLCI rating of 95+. This version of the pipe is sold without a required driver or dimmer so that you may use your own. The 3-pin XLR connector allows plug-and-play functionality with the optional 4-Way Controller. The controller can handle up to 4 Raw Pipelines and control dimming manually or via DMX as well as CCT adjustments for 3200/5600K mixed setups.
Key Specs
Item Type
1 x LED Light Tube/Wand
Included Storage Case
No
Photometrics
Not Specified by Manufacturer
Color Temperature
5600K
Color Modes
Daylight
Color Accuracy Standard
TLCI 95
Dimming
Controller Not Included
• 0 to 100%
Front Accessory Mount
Proprietary
Power Source
AC to DC Adapter (Not Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
14 VDC
Power Consumption
9 W
Light Fixture
Item Type
1 x LED Light Tube/Wand
Included Filters
Phosphor Panel (Built-In)
Included Storage Case
No
Photometrics
Not Specified by Manufacturer
Color Temperature
5600K
Color Modes
Daylight
Color Accuracy Standard
TLCI 95
Dimming
Controller Not Included
• 0 to 100%
Cooling System
No
Expected Lamp Life
50,000 Hours
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Mobile App Compatible
No
Power & I/O
Power Source
AC to DC Adapter (Not Included)
Inputs/Outputs
1 x Built-In Cable (10' / 3.3 m) with XLR 3-Pin Power Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
14 VDC
Inline Switch
No
Power Pass-Thru
No
Power Consumption
9 W
Environmental
Environmental Protection
Dust-Resistant (IP20)
Operating Temperature
14 to 104°F / -10 to 40°C
General
Display
No
Materials
Aluminum
Dimensions
12 x 1 x 1" / 30.5 x 2.5 x 2.5 cm (Fixture)
Packaging Info
Package Weight
0.55 lb
Box Dimensions (LxWxH)
13.7 x 1.6 x 0.9"
