PIPELINE 4-BANK 3-Foot Kit, 3200K - incl. 48V PSU, PSU mount plate, Yoke with TVMP M10/16mm spigot, 2 m. Powercon True 1 cable and 2 Grid/Diffuser holders from www.thelafirm.com
PIPELINE 4-BANK 3-Foot Kit, 3200K - incl. 48V PSU, PSU mount plate, Yoke with TVMP M10/16mm spigot, 2 m. Powercon True 1 cable and 2 Grid/Diffuser holders from www.thelafirm.com
PIPELINE 4-BANK 3-Foot Kit, 3200K - incl. 48V PSU, PSU mount plate, Yoke with TVMP M10/16mm spigot, 2 m. Powercon True 1 cable and 2 Grid/Diffuser holders from www.thelafirm.com
PIPELINE 4-BANK 3-Foot Kit, 3200K - incl. 48V PSU, PSU mount plate, Yoke with TVMP M10/16mm spigot, 2 m. Powercon True 1 cable and 2 Grid/Diffuser holders from www.thelafirm.com
PIPELINE 4-BANK 3-Foot Kit, 3200K - incl. 48V PSU, PSU mount plate, Yoke with TVMP M10/16mm spigot, 2 m. Powercon True 1 cable and 2 Grid/Diffuser holders from www.thelafirm.com
PIPELINE 4-BANK 3-Foot Kit, 3200K - incl. 48V PSU, PSU mount plate, Yoke with TVMP M10/16mm spigot, 2 m. Powercon True 1 cable and 2 Grid/Diffuser holders from www.thelafirm.com
PIPELINE 4-BANK 3-Foot Kit, 3200K - incl. 48V PSU, PSU mount plate, Yoke with TVMP M10/16mm spigot, 2 m. Powercon True 1 cable and 2 Grid/Diffuser holders from www.thelafirm.com
PIPELINE 4-BANK 3-Foot Kit, 3200K - incl. 48V PSU, PSU mount plate, Yoke with TVMP M10/16mm spigot, 2 m. Powercon True 1 cable and 2 Grid/Diffuser holders from www.thelafirm.com
PIPELINE 4-BANK 3-Foot Kit, 3200K - incl. 48V PSU, PSU mount plate, Yoke with TVMP M10/16mm spigot, 2 m. Powercon True 1 cable and 2 Grid/Diffuser holders from www.thelafirm.com

PIPELINE 4-BANK 3-Foot Kit, 3200K - incl. 48V PSU, PSU mount plate, Yoke with TVMP M10/16mm spigot, 2 m. Powercon True 1 cable and 2 Grid/Diffuser holders

BBS-3529K
Regular price
$3,219.00
Sale price
$2,897.10

Enhance looks in your video production with the 3200K Pipeline Remote Phosphor 3' LED 4-Bank from BBS Lighting. Featuring four 3' Pipeline LEDs installed within a sturdy reflecting enclosure, this bank yields 12,000 lumens of soft 180° wrap-around light, ideal for modelling faces and illuminating backgrounds. The Pipeline LED system boasts a TLCI rating of 96+, allowing for full-range smooth dimming with no color shift or flickering, either on-board or remotely via DMX. A 48V power supply with locking AC cord is included.

High light output of 12,000 lumens on 120W max. draw
Heatless and silent fan-less operation
Strobe and manual dimming
Rugged aluminum frame

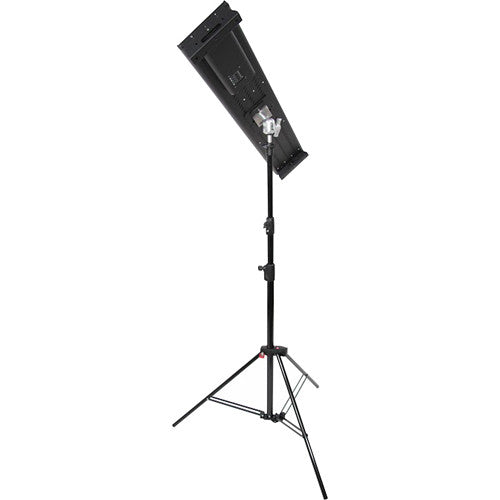

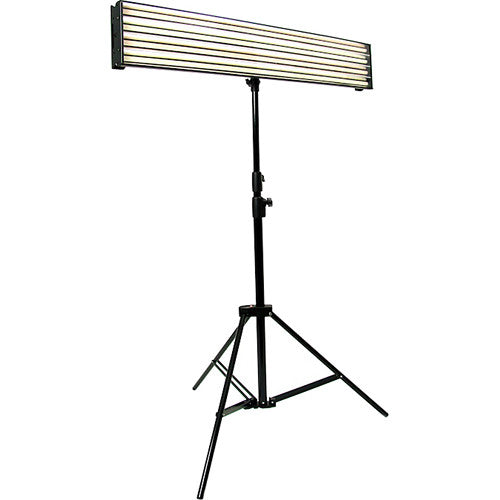

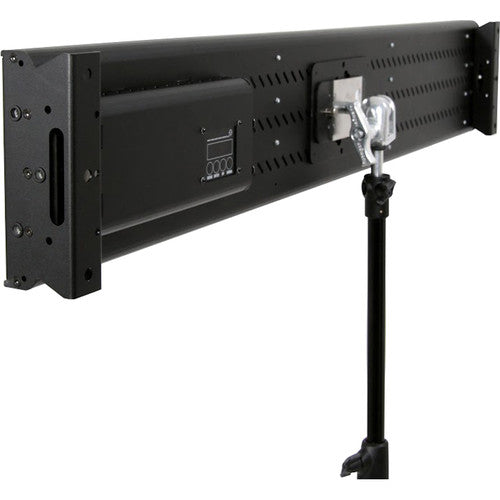

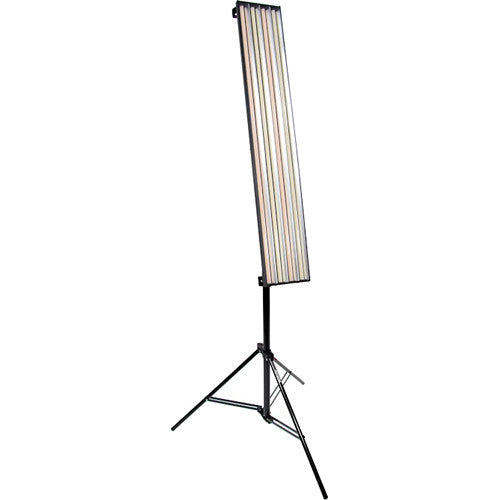

Stand-mountable via built-in adjustable ball mount
Lightweight at 9 lb

Key Specs
Item Type
1 x LED Light Bank/Frame Fixture with 4 Light Tubes
Included Storage Case
No
Photometrics
3200K:
413 fc / 4444 Lux at 3.3' / 1 m
103 fc / 1112 Lux at 6.6' / 2 m
46 fc / 492 Lux at 9.8' / 3 m
26 fc / 276 Lux at 13.1' / 4 m
16 fc / 176 Lux at 16.4' / 5 m
Show More
Color Temperature
3200K
Color Modes
Tungsten
Color Accuracy Standard
TLCI 96
Dimming
Built-In Dimmer
• 0 to 100%
Front Accessory Mount
Proprietary
Power Source
AC to DC Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
48 VDC
Power Consumption
120 W
Fixture Mounting
1 x 5/8" Receiver
Light Fixture
Item Type
1 x LED Light Bank/Frame Fixture with 4 Light Tubes
Included Filters
Phosphor Panel
Included Storage Case
No
Lumens
12,000
Photometrics
3200K:
413 fc / 4444 Lux at 3.3' / 1 m
103 fc / 1112 Lux at 6.6' / 2 m
46 fc / 492 Lux at 9.8' / 3 m
26 fc / 276 Lux at 13.1' / 4 m
16 fc / 176 Lux at 16.4' / 5 m
Color Temperature
3200K
Color Modes
Tungsten
Color Accuracy Standard
TLCI 96
Dimming
Built-In Dimmer
• 0 to 100%
Cooling System
Passive
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Mobile App Compatible
No
Power & I/O
Power Source
AC to DC Adapter (Included)
Inputs/Outputs
1 x XLR 4-Pin Power Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
48 VDC
Included Adapter / Cable
1 x USA Type-A Plug to XLR 4-Pin AC to DC Adapter
Inline Switch
No
Power Pass-Thru
No
Power Consumption
120 W
Mounting
Fixture Mounting
1 x 5/8" Receiver
Environmental
Operating Temperature
14 to 104°F / -10 to 40°C
General
Display
Yes
Materials
Aluminum (Housing)
Dimensions
36 x 9 x 4" / 91.4 x 22.9 x 10.2 cm (Fixture)
Weight
9 lb / 4.1 kg
