Description
BB&S Lighting Pipeline Remote Phosphor Bi-Col... Overview

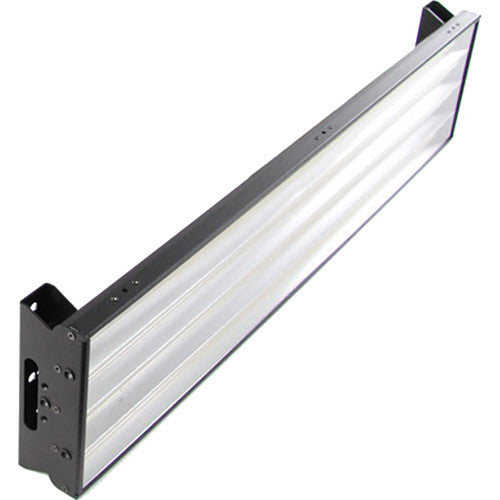

Enhance looks in your video production with the 3200 / 5600K Pipeline Remote Phosphor 3' LED 4-Bank from BBS Lighting. Featuring four 3' Pipeline LEDs installed within a sturdy reflecting enclosure, this bank yields 12,000 lumens of soft 180° wrap-around light, ideal for modelling faces and illuminating backgrounds. The Pipeline LED system boasts a TLCI rating of 96+, allowing for full-range smooth dimming with no color shift or flickering, either on-board or remotely via DMX. A 48V power supply with locking AC cord is included.

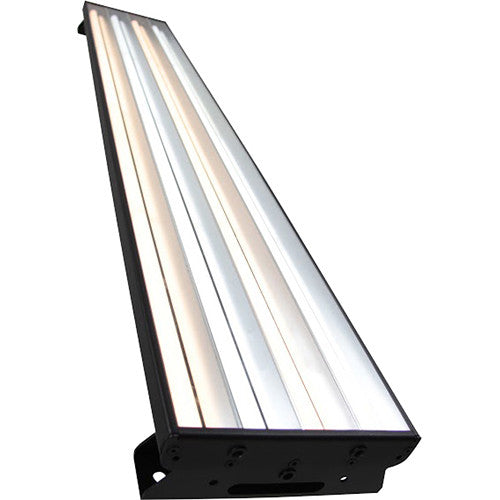

Bi-color arrangement: Two 3200K & two 5600K precision-dimmable Pipeline LEDs enable you to create mid-range overall color temperatures
High light output of 12,000 lumens on 120W max. draw
Heatless and silent fan-less operation
Strobe and manual dimming
Rugged aluminum frame

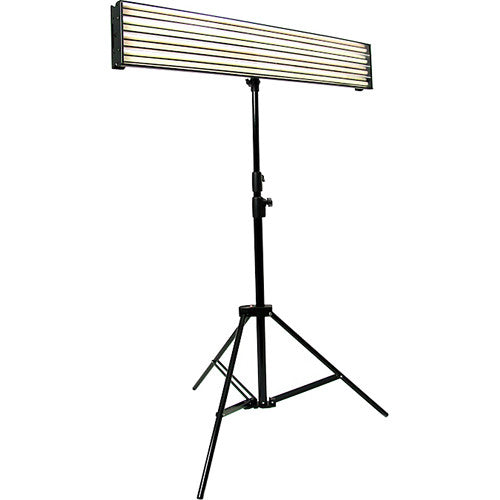

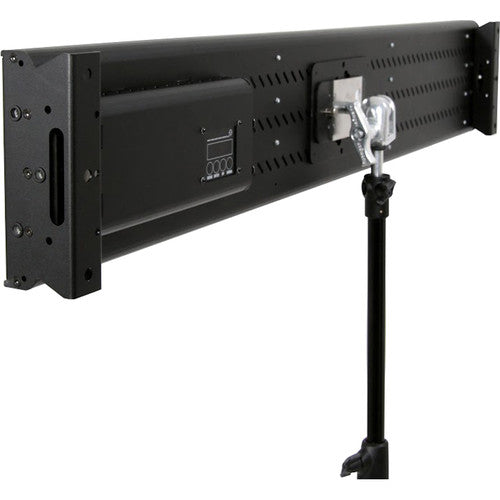

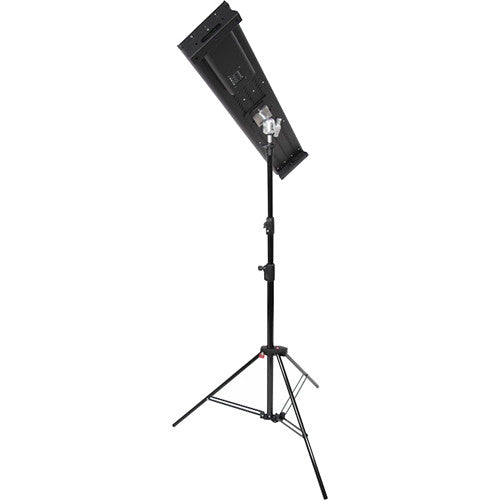

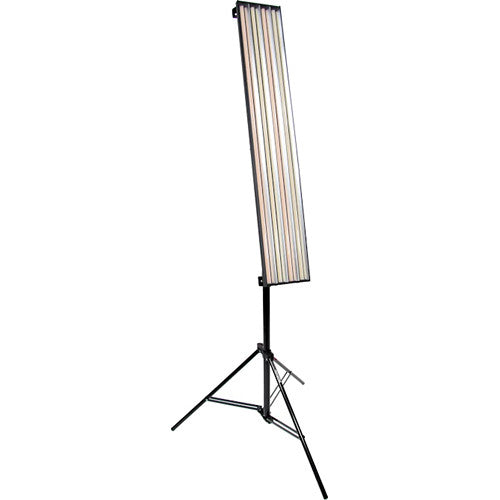

Stand-mountable via built-in adjustable ball mount
Lightweight at 9 lb
Key Specs
Fixture Mounting
1 x 5/8" Receiver
Light Fixture
Item Type
1 x LED Light Bank/Frame Fixture with 4 Light Tubes
Included Filters
Phosphor Panel
Photometrics
Not Specified by Manufacturer
Color Temperature
3200 to 5600K
Front Accessory Mount
Proprietary
Power & I/O
Power Source
AC to DC Adapter (Included)
Inputs/Outputs
1 x XLR 4-Pin Power Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1 x USA Type-A Plug to XLR 4-Pin AC to DC Adapter
• 48 VDC
Inline Switch
No
Power Pass-Thru
No
Power Consumption
120 W
Mounting
Fixture Mounting
1 x 5/8" Receiver
