Description
The Astera PixelBrick is a compact, battery-powered multi-function LED light with a high-quality 2700 to 6500K output for film, TV, and stage production. It can be used as an uplight and spotlight with 5 different beam options. Featuring RGB (+ mint + amber), HSI, and CCT control, PixelBrick can add standout colors and white tones to any wall or object. Its native 13° beam can be modified with up to several filters, such as the included 30° flood filter.

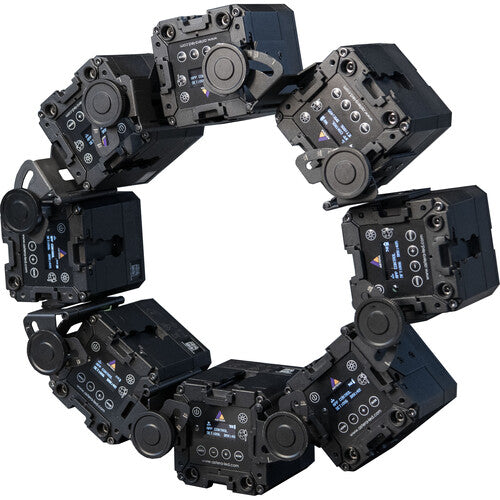

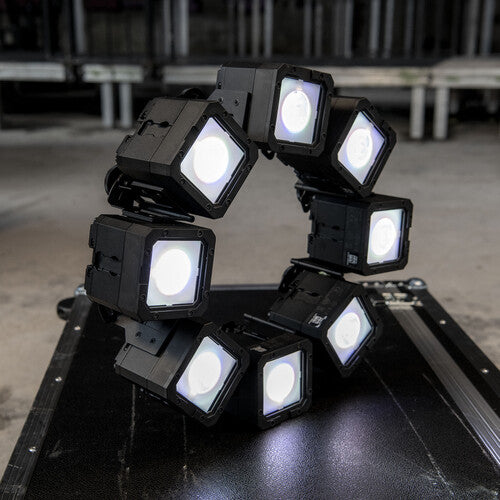

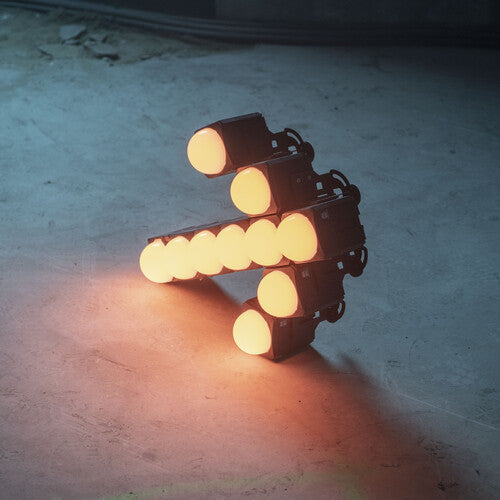

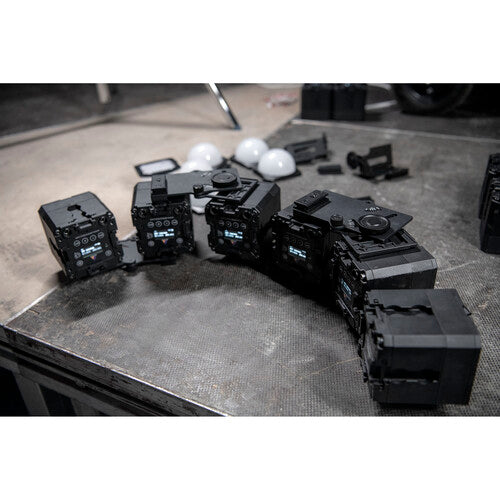

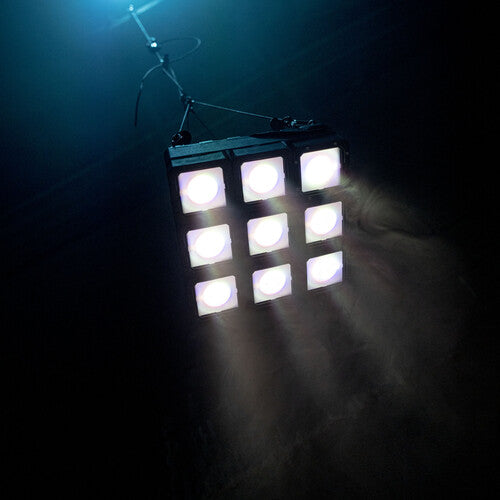

Multiple PixelBrick units can be connected to form clusters and shapes. You can arrange several or more PixelBricks in geometrical shapes or build a matrix. Each PixelBrick comes with the connectors necessary to link an additional unit. Moreover, you can add domes to change the output from a beam to a pixel look.

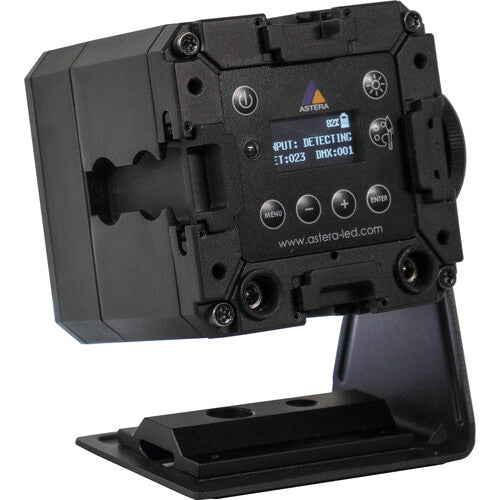

Dedicated onboard buttons allow easy control over brightness and HSI colors. Additionally, featuring built-in Bluetooth, the PixelBrick can be operated remotely with the AsteraApp for iOS and Android. AsteraApp offers intuitive and fast control of complex lighting setups and is also used for monitoring the PixelBrick. The light also features a wireless DMX module made by LumenRadio, allowing it to be controlled by CRMX and W-DMX transmitters alongside other wireless fixtures.
PixelBrick is IP65 waterproof and dustproof. The battery is built-in and runs up to 20 hours on a three-hour charge. A charging cable for the battery is sold separately. You can use the optional Astera Charger (FP1-CHR), or any standard power supply with a 2.1 x 5.5mm barrel plug.
Included Accessories

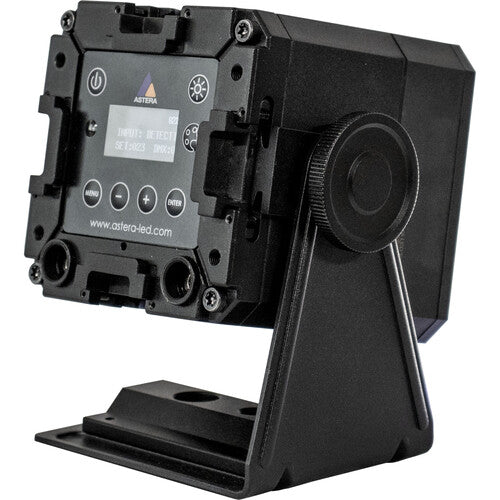

BrickBracket
Functions as a stand and hanging mount with an airline track and 1/4"-20 thread.

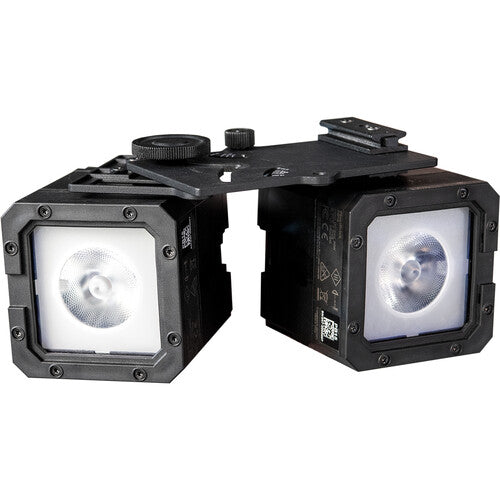

BrickConnect

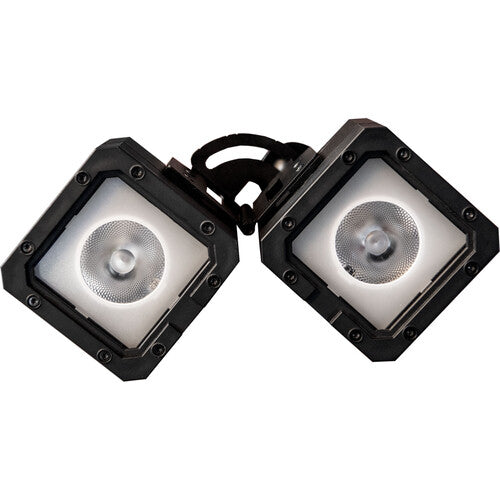

Connect two PixelBricks side by side.
17° BeamSoftener
Inserts into the PixelBrick and functions as a softlight.
30° Flood Filter
Increases the beam angle for larger areas.
Additional Features
Seamless Runtime
To ensure that your light's battery lasts throughout your entire production, you can select how many hours you want it to last. This results in limiting the light's output to a maximum brightness level that achieves the selected runtime.
Effects
Quickly build programs out of colors and effects, and trigger them or make them match a beat. Turn multiple programs and lights into scenes.
Talkback+
Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
Anti-Theft
When enabled, the integrated theft alarm gives a visual and audible alarm if the light is being moved. In addition, the AsteraApp also shows the alarm.
Emergency Light
With this innovative feature, the PixelBrick can double as a battery-powered emergency light. When activated, the fixture can detect power loss and instantly switches to bright white light to illuminate the venue.
Key Specs
Item Type
1x LED Light Cube / Spot Light
Included Storage Case
No
Photometrics
13° at 2700K:
574 fc / 6178 Lux at 3.3' / 1 m
13° at 3200K:
664 fc / 7144 Lux at 3.3' / 1 m
13° at 5500K:
556 fc / 5985 Lux at 3.3' / 1 m
Show More
Color Temperature
2700 to 6500K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 96
Dimming
App-Controlled / Built-In Dimmer / DMX
Beam Angle
13°
Front Accessory Mount
Proprietary
Wireless Remote Control Type
Bluetooth
Wireless CRMX
Power Source
Battery (Built-In)
AC to DC Adapter (Not Included)
Battery
1x Rechargeable (Built-In)
• Up to 20-Hour Runtime
• 4-Hour Charge Time
Input Power
100 to 240 VAC, 50 / 60 Hz
24 VDC at 0.8 A
Power Consumption
20 W
Light Fixture
Item Type
1x LED Light Cube / Spot Light
Included Storage Case
No
Lumens
450 (at 2700K)
475 (at 3200K)
395 (at 5500K)
Photometrics
13° at 2700K:
574 fc / 6178 Lux at 3.3' / 1 m
13° at 3200K:
664 fc / 7144 Lux at 3.3' / 1 m
13° at 5500K:
556 fc / 5985 Lux at 3.3' / 1 m
Color Temperature
2700 to 6500K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 96
Dimming
App-Controlled / Built-In Dimmer / DMX
Cooling System
No
Beam Angle
13°
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
Wireless CRMX
Mobile App Compatible
Yes: Android & iOS
App Name: AsteraApp
Functionality: Remote Control
Wireless Range
984.3' / 300 m
9.8' / 3 m (Bluetooth)
Power & I/O
Power Source
Battery (Built-In)
AC to DC Adapter (Not Included)
Inputs/Outputs
Light Fixture
1x Barrel / Coax (2.1 x 5.5 mm) Power/Remote Input (24 VDC at 0.8 A)
1x Barrel / Coax (2.1 x 5.5 mm) Power/Remote Output
Battery
1x Rechargeable (Built-In)
• Up to 20-Hour Runtime
• 4-Hour Charge Time
Battery Charging
1x AC to DC Adapter (Not Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
24 VDC at 0.8 A
Inline Switch
No
Power Pass-Thru
Yes
Power Consumption
20 W
Environmental
Environmental Protection
Dust/Water-Resistant (IP65)
Operating Temperature
32 to 104°F / 0 to 40°C
General
Display
Yes
Certifications
CE, EU, RoHS, REACH, PSE, IC
Materials
Aluminum (Housing)
Dimensions
3.7 x 3.6 x 3.6" / 9.4 x 9.1 x 9.1 cm (Fixture)
Weight
2.47 lb / 1.12 kg
Packaging Info
Package Weight
3.05 lb
Box Dimensions (LxWxH)
7.3 x 6.1 x 5.3"
