Description

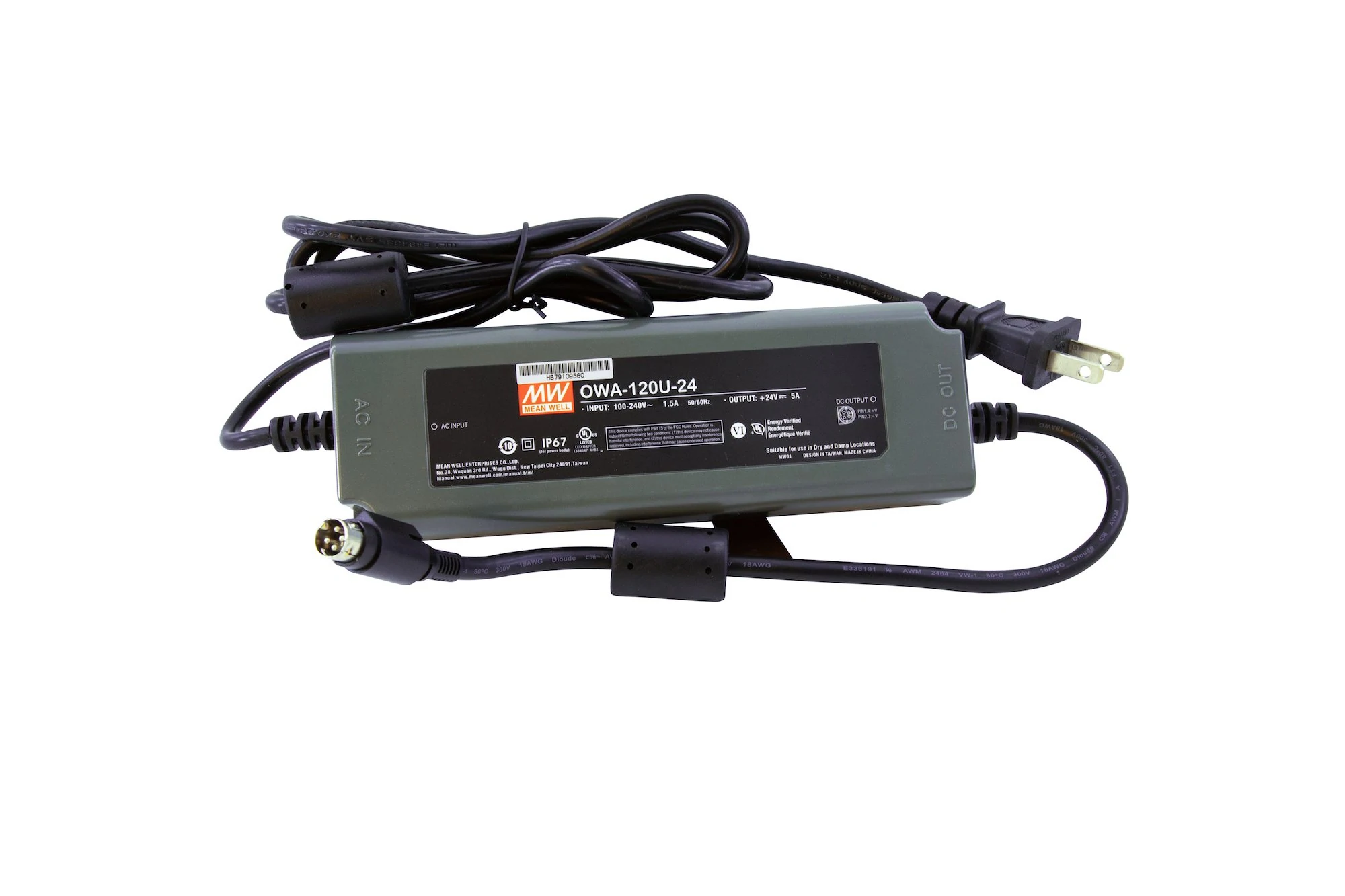

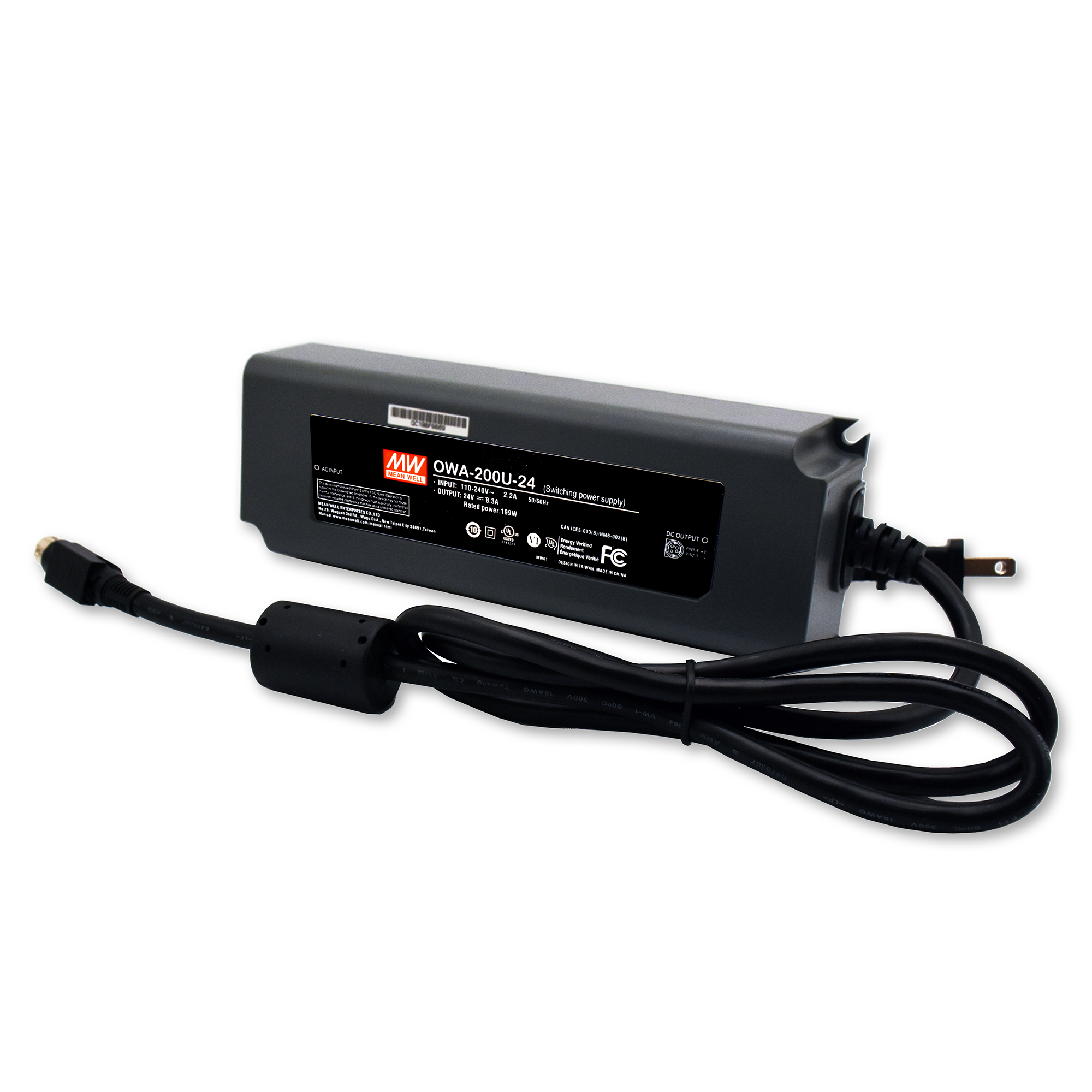

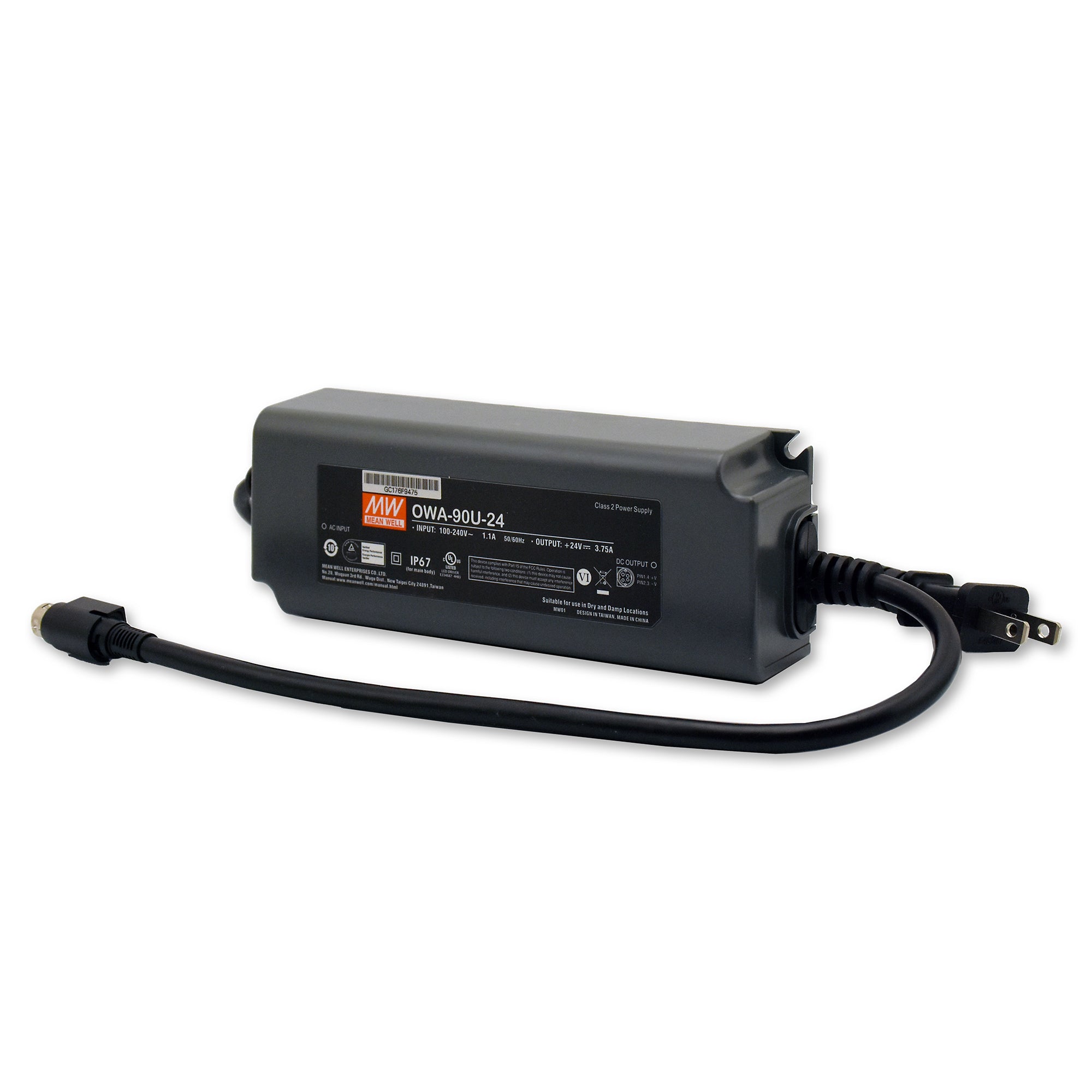

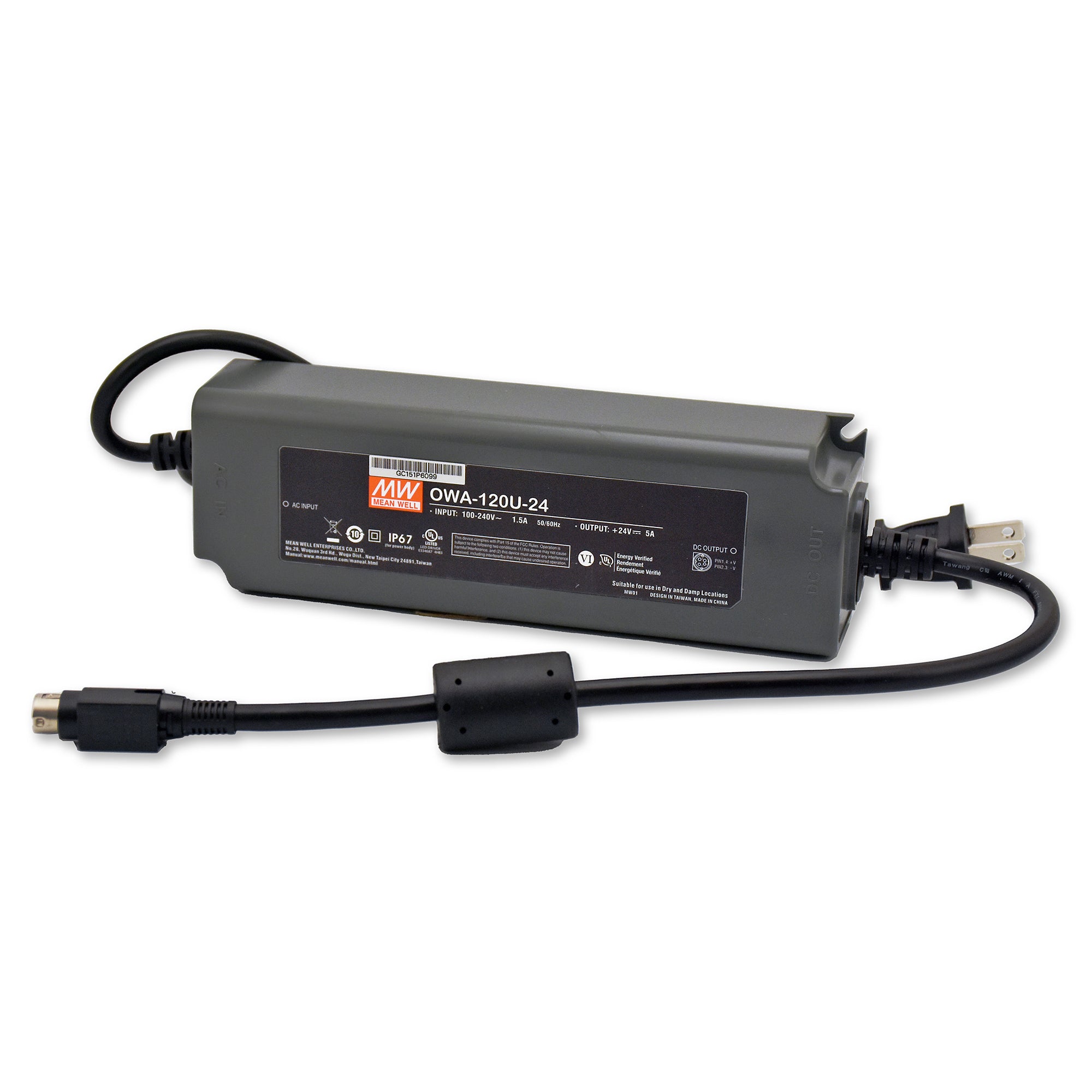

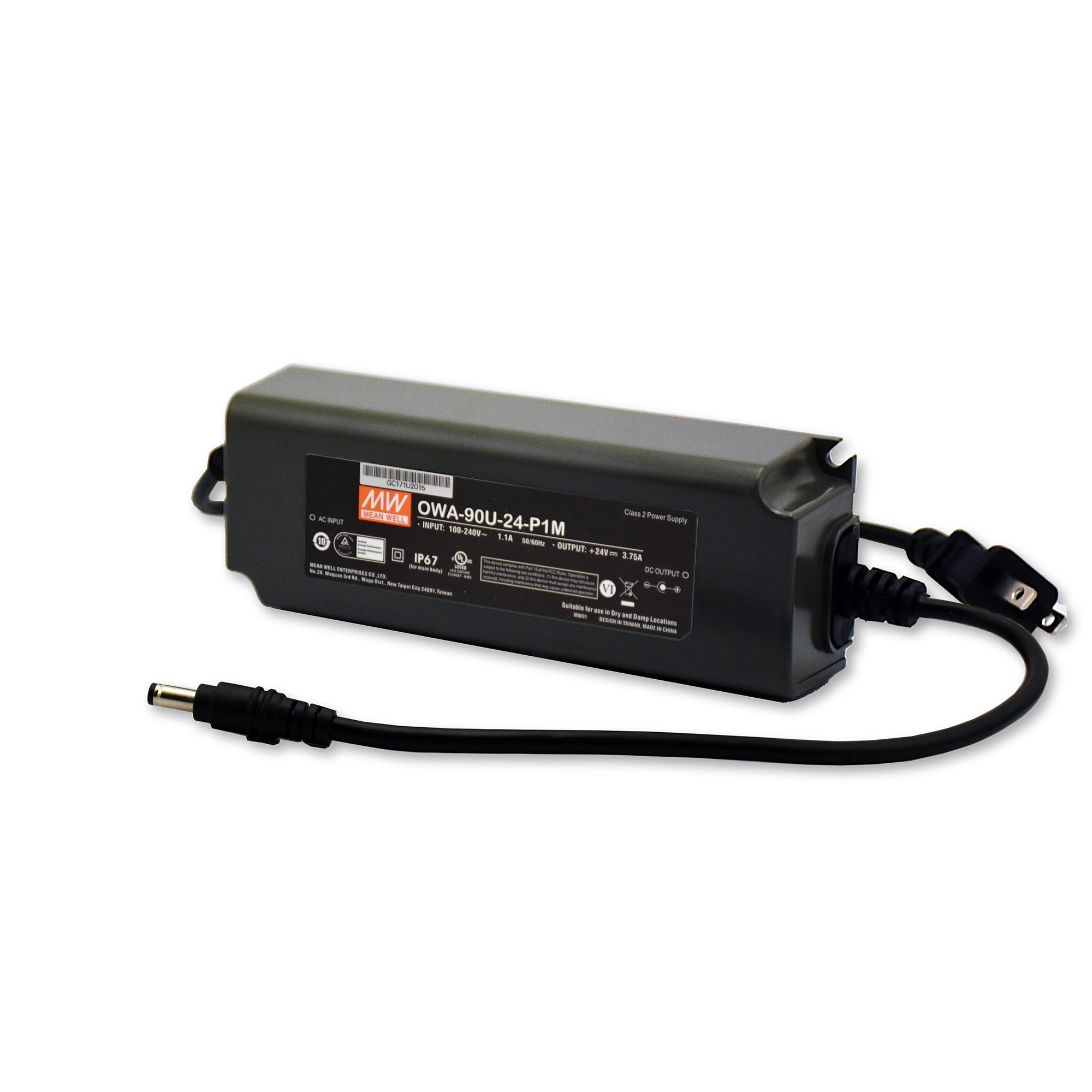

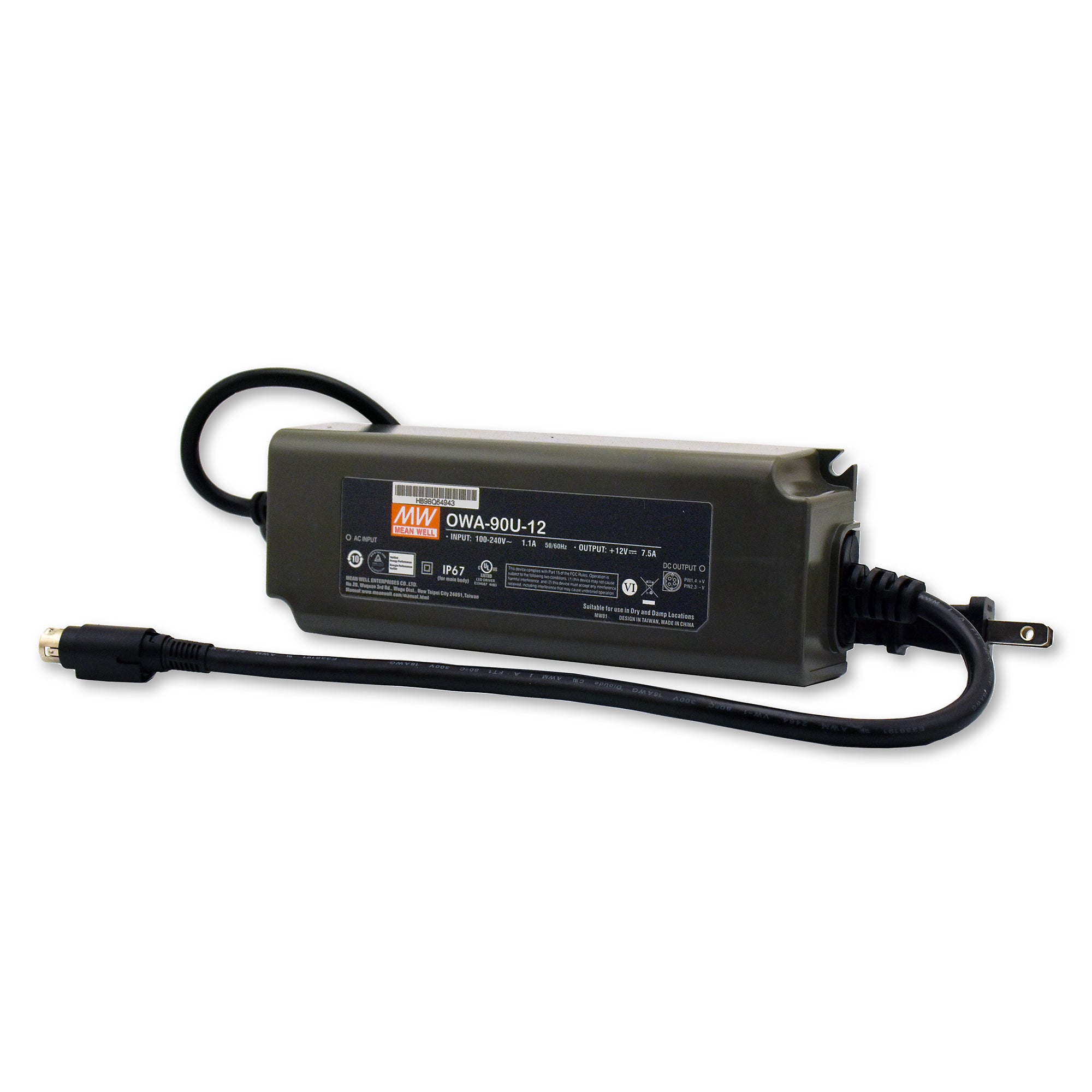

The OWA series power supplies deliver exceptional reliability and robust industrial-grade performance, making them ideal for on-camera use, continuous operation. Available in 24VDC and 12VDC options. Designed with Class II and Class 2 safety protections, these power supplies offer short-circuit, overload, and over-voltage protection for worry-free operation. Featuring a fanless design and a standard North American 2-prong input plug, the OWA series ensures quiet, efficient performance in both dry, damp and wet environments.
Key Features:
Medical-Grade Power Supply – Designed for stable, flicker-free LED operation.
Comprehensive Safety Protection – Class II & Class 2 certification with short-circuit, overload, and over-voltage protection.
Fanless Design – Silent, efficient operation ideal for professional environments.
High Efficiency – 91% energy efficiency for reduced power consumption.
Multiple Output Options – 60W, 90W, 120W and 200W models available.
Versatile Output Connectors – Includes DC barrel (P1M) OR R7B locking 4-pin DIN options.
UL Listed – IP67 Suitable for dry, damp and wet locations.
Mounting Holes – Allows for secure installation.
5-Year Warranty – Long-term reliability and durability.
Voltage (V) : 12V DC OR 24V DC
Current (A) : Various
Output Power (W) : 60W / 90W / 120w / 200w
Agency Approvals : UL/CUL/CE/FCC/TUV/CB
Size (inches) : Various - See Datasheet
Ripple & Noise (mV p-p) : 150
Load Regulation () : +-1%
Line Regulation () : +-1%
Efficiency : 88.5%
Frequency Range : 47 ~ 63 Hz
Universal AC input : 90 ~ 264VAC 127 ~ 370VDC
Low leakage current : < 50 amps
Protections: : short circuit, over voltage, over current, over temperature
AC Input : 2 pole IEC320
Housing : Fully enclosed plastic case
Medical safety approved : 2 x MOPP between primary and secondary
Class : Class II power & Class 2 (w/o ground pin)
Indicator : LED indicates power on
Standby Power Consumption : < 0.1 watts
Output Connector Type : Cylindrical Female
Output Connector Diameter : 2.1mm x 5.5mm
Output Polarity : Center Positive
Product Type : AC to DC Power Supply
MFR Product Family : OWA
Operating Temperature : -35C to 70C
Power Supply Color : Black / Grey
