Description
Includes: Light Engine Only, IP PowerKON Power Cord - NO LENS TUBE
Control: 5-pin DMX

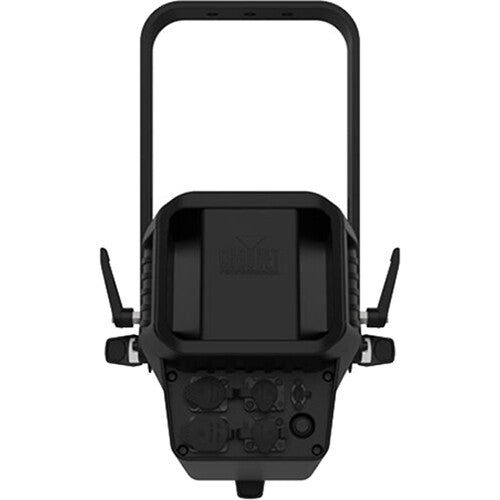

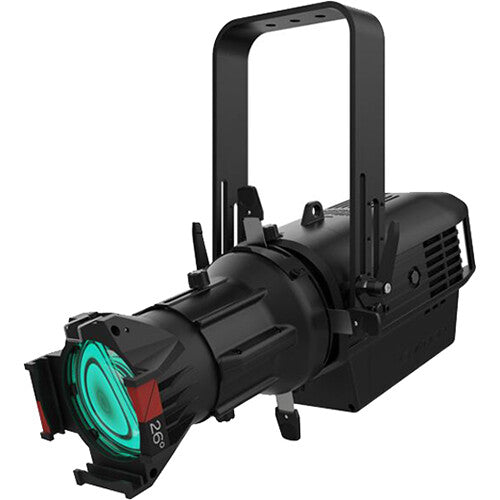

Lighting designers looking for a bright ellipsoidal fixture with multicolor LEDs and tunable whites will be impressed with the Ovation Rêve E-3 IP Multi-Color LED Ellipsoidal Fixture from CHAUVET PROFESSIONAL, a full-spectrum LED ERS-style lighting fixture for theater, film, and broadcast production. This model is fully IP67 rated, allowing use indoors or outdoors in all types of weather.
With color-temperatures presets ranging from 2800 to 8000K, the Ovation Rêve E-3 maintains remarkable brightness and a high quality of light with an emulated redshift for a tungsten feel. Other notable features include several dimming curves, a silent Fan Off mode, and an adjustable, low-clearance yoke for difficult installations.
The Ovation Rêve E-3 can be controlled via DMX and RDM, with nine personalities and nine channels (1, 5, 6, 8, 12, 14-ch1, 14-ch2, 18, HSV). The fixture includes power-thru via Seetronic PowerCon connectors. A PowerCon power cord, Ovation metal gobo holder, and a soft-focus filter are included.
Benefits
Full-spectrum LED ERS-style lighting fixture for theatre, film, and production
Fully IP65 rated for seasonal use indoors or out
Linear color-temperature presets from 2800 to 8000K with high CRI and CQS
Virtual color wheel color matched to popular gel colors
±Green adjustment and emulated redshift via DMX or onboard control
RDM (Remote Device Management) for added flexibility
Adjustable PWM (pulse width modulation) to avoid flickering on camera
Virtually silent operation for use in studio, film, and theatre applications
Ultrasmooth 16-bit dimming curves and speeds to complement any lighting scheme
Innovative adjustable yoke for mounting in low clearance areas
Direct power/data connection and control options for the Ovation GR-1 gobo rotator
USB-C port for fixture software updates
Note:
Required Accessories: Lens Tube: 5, 10, 14, 19, 26, 36, 50, 15-30, and 25-50°, all sold separately
Optical
Light Source
91 LEDs (12 Red, 19 Green, 3 Blue, 9 Royal Blue, 24 Amber, 24 Mint) 3.5 to 10 W, (2.4 A)
Life Expectancy
Life Expectancy: 50,000 Hours
Color Temperature
2800 to 8000K (Range)
6428K (at Full)
CRI
93.5 (at 3200K)
Beam Angle
5° Lens: 6.7°
10° Lens: 11.1°
19° Lens: 17.6°
26° Lens: 26°
36° Lens: 32.8°
50° Lens: 49.5°
15-30° Lens: 14.3° (Narrow), 23.8° (Wide)
25-50° Lens: 24.7° (Narrow), 41.1° (Wide)
Field Angle
5° Lens: 7.9°
10° Lens: 12.8°
14° Lens: 16.9°
19° Lens: 20.8°
26° Lens: 28.2°
36° Lens: 37°
50° Lens: 54.2°
15 to 30° Lens: 17.3° (Narrow), 33.2° (Wide)
25 to 50° Lens: 27.3° (Narrow), 44.7° (Wide)
Lumens
5° Lens: 8335 Lumens
10° Lens: 11,092 Lumens
14° Lens: 10,700 Lumens
19° Lens: 10,185 Lumens
26° Lens: 12,178 Lumens
36° Lens: 11,888 Lumens
50° Lens: 11,274 Lumens
15 to 30° Lens: 9166 Lumens (Narrow), 11,395 Lumens (Wide)
25 to 50° Lens: 11,810 Lumens (Narrow), 14,328 Lumens (Wide)
Illuminance
5° Lens: 28,740 lux at 16.4' / 5.0 m
10° Lens: 31,856 lux at 16.4' / 5.0 m
14° Lens: 8823 lux at 16.4' / 5.0 m
19° Lens: 5377 lux at 16.4' / 5.0 m
26° Lens: 3300 lux at 16.4' / 5.0 m
36° Lens: 1977 lux at 16.4' / 5.0 m
50° Lens: 864 lux at 16.4' / 5.0 m
15 to 30° Lens: 7731 lux at 16.4' / 5.0 m (Narrow), 2484 lux at 16.4' / 5.0 m (Wide)
25 to 50° Lens: 3174 lux at 16.4' / 5.0 m (Narrow), 1502 lux at 16.4' / 5.0 m (Wide)
PWM Frequency
600, 1200, 2000, 4000, 6000, 25,000 Hz
Dynamic Effects
Dimmer
Electronic
Shutter/Strobe
Electronic
Focus
Manual
Strobe Rate
0 to 28.6 Hz
Standalone Color Mixing
Yes
Dimmer Modes
4
Dimmer Curves
4
Automated Programs
Yes, Built-In
Control
Control Protocol
DMX, RDM
DMX Channels
1, 5, 6, 8, 12, 14-ch1, 14-ch2, 18, or HSV
Modes/Personalities
9 Personalities (1, 5, 6, 8, 12, 14-ch1, 14-ch2, 18, HSV)
Connections
Power Connections
Edison (Local) plug to Seetronic PowerCon IP65
Power Input
Seetronic PowerCon IP65
Power Output
Seetronic PowerCon IP65
Data Connectors
5-Pin XLR
USB-C
Cable Length
5' / 1.5 m (Power)
Required Accessories
Lens Tube: 5, 10, 14, 19, 26, 36, 50, 15 to 30, 25 to 50°
Power
Input Voltage
100 to 240 VAC, 50/60 Hz (Auto Ranging)
Power Linking
4 Units at 120 V; 7 Units at 208 V; 8 Units at 230 V
Power and Current
354 W, 2.99 A at 120 V, 60 Hz
345 W, 1.70 A at 208 V, 60 Hz
342 W, 1.55 A at 230 V, 50 Hz
Physical
Certifications
CE, MET, FCC
Color
Black
IP Rating
IP67
Temperature
Ambient: -4 to 113°F / -20 to 45°C
Dimensions
Fixture Only, Yoke Up: 20.83 x 12.71 x 19.75" / 52.9 x 32.3 x 50.1 cm
With 5° Lens Extended, Yoke Up: 42.25 x 14.5 x 19.75" / 107.3 x 36.8 x 50.1 cm
With 10° Lens Extended, Yoke Up: 33.5 x 12.71 x 19.75" / 85.1 x 32.3 x 50.1 cm
With 14° Lens Extended, Yoke Up: 30.25 x 12.71 x 19.75" / 76.8 x 32.3 x 50.1 cm
With 19, 26, 36, or 50° Lens Extended, Yoke Up: 27.5 x 12.71 x 19.75" / 69.8 x 32.3 x 50.1 cm
With 15 to 30° Lens, Yoke Up: 33.75 x 12.71 x 19.75" / 85.7 x 32.3 x 50.1 cm
With 25 to 50° Lens, Yoke Up: 26.5 x 12.71 x 19.75" / 67.3 x 32.3 x 50.1 cm
Weight
Fixture Only: 20.6 lb / 9.34 kg
With 5° Lens: 25.2 lb / 11.43 kg
With 10° Lens: 23.8 lb / 10.8 kg
With 14° Lens: 26 lb / 11.8 kg
With 26° Lens: 24.4 lb / 11 kg
With 15 to 30° Lens: 30.2 lb / 13.69 kg
With 25 to 50° Lens: 26.8 lb / 12.15 kg
