Description
Includes: Light Engine Only, IP PowerKON Power Cord - NO LENS TUBE
Control: 3-pin DMX, 5-pin DMX

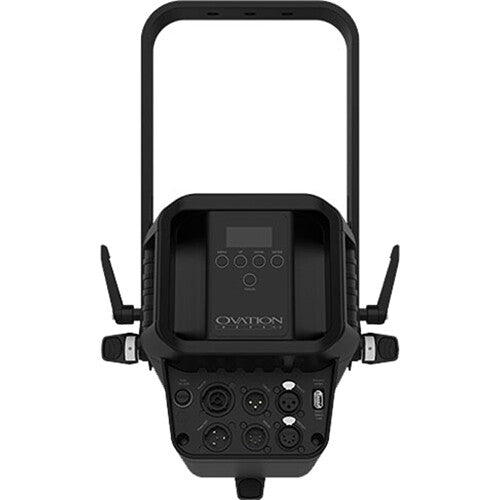

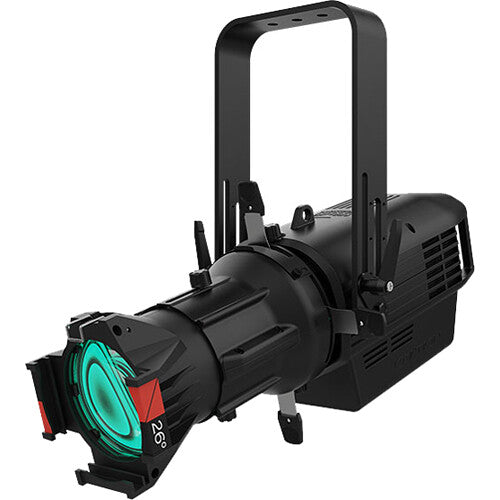

Lighting designers looking for a bright ellipsoidal fixture with multicolor LEDs and tunable whites will be impressed with the black Chauvet Professional Ovation Rêve E-3, a full-spectrum LED ERS-style lighting fixture for theater, film, and broadcast production.
With color-temperatures presets ranging from 2800 to 8000K, the Ovation Rêve E-3 maintains remarkable brightness and high-quality light with emulated redshift for a tungsten feel. Other notable features include several dimming curves, a silent Fan Off mode, and an adjustable low-clearance yoke for difficult installations.
The Ovation Rêve E-3 can be controlled via DMX and RDM, with nine personalities and nine channels (1, 5, 6, 8, 12, 14-ch1, 14-ch2, 18, or Hue Saturation Value (HSV). The fixture includes power-thru via Seetronic Powerkon connectors. A Seetronic Powerkon power cord, Ovation metal gobo holder, and a soft-focus filter are included.
Benefits
Full-spectrum LED ERS-style lighting fixture for theatre, film, and production
Linear color-temperature presets from 2800 to 8000K with high CRI and CQS
Virtual color wheel color matched to popular gel colors
±Green adjustment and emulated redshift via DMX or onboard control
RDM (Remote Device Management) for added flexibility
Adjustable PWM (pulse width modulation) to avoid flickering on camera
Virtually silent operation for use in studio, film, and theatre applications
Ultrasmooth 16-bit dimming curves and speeds to complement any lighting scheme.
Innovative adjustable yoke for mounting in low clearance areas
Direct power/data connection and control options for the Ovation GR-1 gobo rotator
USB port for fixture software updates
Fixture Type
Spotlight
Light Source
91x Color LED - 10 W / 2.4 A
Colors
Red
Green
Blue
Dark Blue
Amber
Mint
Show More
Beam Angle
5 to 50° (with Included Lens)
Control Protocols
DMX512
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 367 W / 3.04 A
208 VAC, 60 Hz: 356 W / 1.76 A
230 VAC, 50 Hz: 353 W / 1.59 A
Mounting
Single Yoke Only
Light
Fixture Type
Spotlight
Light Source
91x Color LED - 10 W / 2.4 A
Expected Lamp Life
50,000 Hours (L70)
Colors
Red
Green
Blue
Dark Blue
Amber
Mint
Photometrics
5°:
2959 fc / 31,856 Lux at 16.4' / 5 m
10°:
1758 fc / 18,924 Lux at 16.4' / 5 m
14°:
862 fc / 9284 Lux at 16.4' / 5 m
19°:
523 fc / 5635 Lux at 16.4' / 5 m
26°:
313 fc / 3378 Lux at 16.4' / 5 m
36°:
193 fc / 2085 Lux at 16.4' / 5 m
50°:
80 fc / 870 Lux at 16.4' / 5 m
Color Temperature
2800 to 8000K
Lumen Output
12,216 Lumens (Peak)
Beam Angle
5 to 50° (with Included Lens)
Field Angle
5.6 to 55.7° (with Included Lens)
Shutter / Strobe
Electronic
Focus
Manual
Dimming
16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
Performance
Operating Modes
DMX
Macros / Programs
5x Auto-Program
Effects
No
Strobe Rate
0 to 30 Hz
Gobos
No
Color Accuracy Index
CRI: 95.4
Control
Control Protocols
DMX512
DMX Channel Modes
9 Mode(s):
1 / 5 / 6 / 8 / 12 / 14a / 14b / 18-Channel
Display / Controls
LCD / 5-Button
Remote Control
No
Mobile App Compatible
No
Connectivity
Inputs/Outputs
2 x XLR 3-Pin DMX Input/Output
2 x XLR 5-Pin DMX Input/Output
Wireless
No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated
Plug Type: NEMA 5-15
Cord Length: 5' / 1.5 m
Fuse
No
Power / Current Consumption
120 VAC, 60 Hz: 367 W / 3.04 A
208 VAC, 60 Hz: 356 W / 1.76 A
230 VAC, 50 Hz: 353 W / 1.59 A
Power Linking
4 Units at 120 VAC
7 Units at 208 VAC
8 Units at 230 VAC
Environmental
Environmental Protection
No
Operating Temperature
-4 to 113°F / -20 to 45°C
Physical
Mounting
Single Yoke Only
Included Accessories
1x Power Cable
1x Filter
Duty Cycle
No
Exterior Color
Black
Cooling
Forced Convection
Dimensions
20.53 x 20.44 x 13.07" / 52.15 x 51.92 x 33.2 cm (Light)
Weight
18.6 lb / 8.4 kg
