Description
Includes: Narrow, Medium, and Wide Lenses, powerCON Power Cord, Control: 3-pin DMX, 5-pin DMX

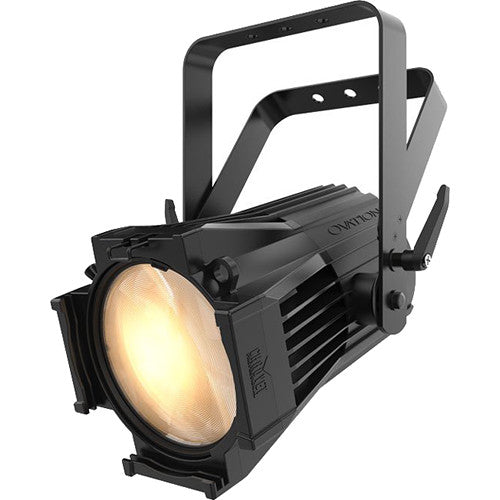

The CHAUVET PROFESSIONAL Ovation P-56WW Compact Silent PAR Light is a compact and virtually silent PAR fixture that produces a homogenized, single-source, flat, and even field of warm white light with high CRI that is ideal for theatrical and studio applications. The fixture's light source utilizes a single 230W warm white LED to produce a color temperature of 3422K at full.
When used with the included interchangeable lens plate beam-shaping accessories (narrow, medium, and wide), the P-56WW can produce a wide range of beam angles. The virtually silent and bright PAR features smooth 16-bit dimming, as well as RDM and PWM for easy setup. Other features include four dimming modes, DMX and RDM control, DMX channels 1, 2, 3 or 6, four personalities, and both 3- and 5-pin XLR DMX connectors.
Warm white PAR-style fixture with output comparable to a 1000W PAR 64 lamp
16-bit dimming resolution for smooth fades
Compact design with homogenous single source of light
Flat, even field of light
Quiet operation for use in any situation
Interchangeable lens plates included for narrow, medium and wide beam angles
Optical
Light Source: 1 LED (WW) 230 W, 3.2 A, 3422K
Life Expectancy: 50,000 Hours
Color Temperature (Full): 3422K
CRI: 98.1
Beam Angle (Narrow Lens): 11°
Beam Angle (Medium Lens): 22°
Beam Angle (Wide Lens): 48°
Beam Angle (Wide Lens with Egg Crate): 37°
Field Angle (Narrow Lens): 24°
Field Angle (Medium Lens): 39°
Field Angle (Wide Lens): 81°
Field Angle (Wide Lens with Egg Crate): 67°
Lumens (with Narrow Lens): 10,326
Lumens (with Medium Lens): 10,728
Lumens (with Wide Lens): 10,687
Illuminance (with Narrow Lens): 6,680 Lux at 16.4’ / 5.0 m
Illuminance (with Medium Lens): 2470 Lux at 16.4’ / 5.0 m
Illuminance (with Wide Lens): 475 Lux at 16.4’ / 5.0 m
Selectable PWM: 600, 1200, 2000, 4000, 6000, 15,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 29 Hz
Dim Modes: 4
Built-In Automated Programs: Yes
Connections
Power Connection: Edison (Local) Plug to Neutrik powerCON
Data Connectors: 3- and 5-Pin XLR
Cable Length (Power): 5' / 1.5 m
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 2, 3, or 6
Modes/Personalities: 4 Personalities (1, 2, 3, 6)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking: 7 Units at 120 V; 13 Units at 208 V; 14 Units at 230 V
Power and Current: 208 W, 1.72 A at 120 V, 60 Hz
Power and Current: 215 W, 1.02 A at 208 V, 60 Hz
Power and Current: 216 W, .93 A at 230 V, 50 Hz
Certifications
CE, MET
IP Rating: IP20, Dry Location
Temperature (Ambient): -4 to 113°F / -20 to 45°C
Material of Construction
Housing Material: Aluminum Die-Cast
Accessory Holder/Gel Frame Size: 7.5" / 19.1 cm
Dimensions
12.5 x 12.8 x 14.3" / 31.7 x 32.6 x 36.3 cm
Weight
11.6 lb / 5.3 kg
