Description
Includes: Medium, and Wide Lenses, powerCON Power Cord, Control: 3-pin DMX, 5-pin DMX
The CHAUVET PROFESSIONAL Ovation P-56FC Compact Silent Full Color PAR Light is a compact and virtually silent PAR fixture that produces a homogenized, single-source, flat and even field of true full color light with a high CRI. The light source includes 10 red, 10 green, 8 blue, 8 amber, and 12 lime for a total of 48 LEDs, which can be blended for a wide palette of color-mixing options. When used with the included interchangeable lens plates beam-shaping accessories, the P-56FC can produce wide-beam angles for theatrical and studio applications.
The virtually silent and bright PAR features smooth 16-bit dimming, as well as RDM and PWM for easy setup. Other features include four dimming modes, DMX and RDM control, DMX channels 1, 3, 5, 7, 10, 12, 13, 15, or HSV, 9 personalities, built-in automated programs, and both 3- and 5-pin XLR DMX connectors.
Full color PAR-style fixture with homogenized single source of light
Interchangeable lens plates included for medium and wide beam angles
Flat, even field of light
Quiet operation for use in any situation with fan speed control
RDM and variable pulse width modulation for setup ease
Accepts standard 7.5” beam-shaping accessories
16-bit dimming resolution for smooth fades
Optical
Light Source: 48 LEDs (10 Red, 10 Green, 8 Blue, 8 Amber, 12 Lime) 3 to 5 W, 1 A
Life Expectancy: 50,000 Hours
Color Temperature (Range): 2800 to 6500K
Color Temperature (at Full): 4889K
CRI (3200): 90
Beam Angle (Medium Lens): 21°
Beam Angle (Wide Lens): 52°
Field Angle (Medium Lens): 35°
Field Angle (Wide Lens): 82°
Lumens (Medium Lens): 5436
Lumens (Wide Lens): 5216
Illuminance (Medium Lens): 1350 Lux at 16.4' / 5.0 m
Illuminance (Wide Lens): 254 Lux at 16.4' / 5.0 m
Selectable PWM: 600, 1200 , 2000, 4000, 6000, and 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-In Automated Programs: Yes
Connections
Power Connection: Edison (Local) Plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON

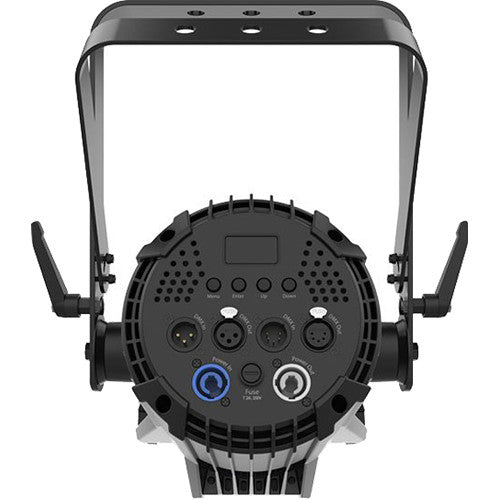

Data Connectors: 3- and 5-Pin XLR
Cable Length (Power): 5' / 1.5 m
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 10, 12, 13, 15, or HSV
Modes/Personalities: 4 Personalities (1, 3, 5, 7, 10, 12, 13, 15, HSV)
Electrical
Input Voltage:
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking:
9 Units @ 120 V
16 Units @ 208 V
17 Units @ 230 V
Power and Current:
176 W, 1.448 A @ 120 V, 60 Hz
175 W, 0.844 A @ 208 V, 60 Hz
180 W, 0.777 A @ 230 V, 50 Hz
Certifications
CE, MET
IP Rating: IP20, Dry Location
Temperature (Ambient): -4 to 113°F / -20 to 45°C
Material of Construction
Housing Material: Aluminum Die-Cast
Accessory Holder/Gel Frame Size: 7.5" / 19.1 cm
Dimensions
12.5 x 12.8 x 14.3" / 31.7 x 32.6 x 36.3 cm
Weight
12.2 lb / 5.5 kg
