Description
Includes: Integrated 4.5m Power Cord, interchangable lens plates, eggcrate filter Control: 5-pin And Terminal Block DMX/RDM, WDMX

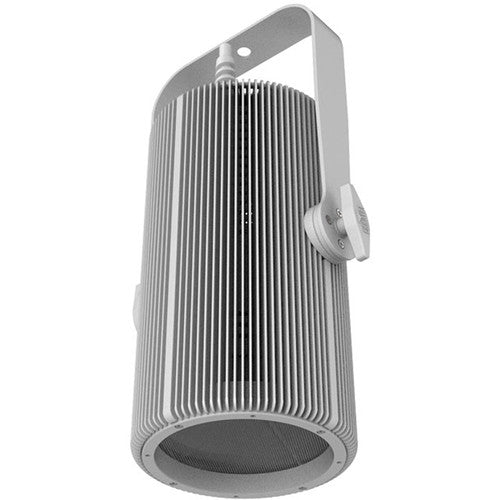

The white Ovation H-605FC LED Light from Chauvet is a versatile fixture that's ideal for public venues such as theaters, houses of worship, and entertainment events. The light employs 60 LEDs with RGBAL color technology to render virtually any hue, including any color temperature of white. The H-605FC has a virtual color wheel with color matched to popular gel filters and color temperature presets from 2800 to 6500K, with a high CRI of 90 at 5000K. There are four dimming modes and selectable Pulse Width Modulation for flicker-free on-camera performance. Control features include DMX, RDM, and W-DMX. The H-605FC ships with both 25- and 40-degree lenses for field coverage and light intensity options.
Benefits
Full color (RGBAL) LED convection-cooled house light
Interchangeable lens plates to adapt to different mounting heights

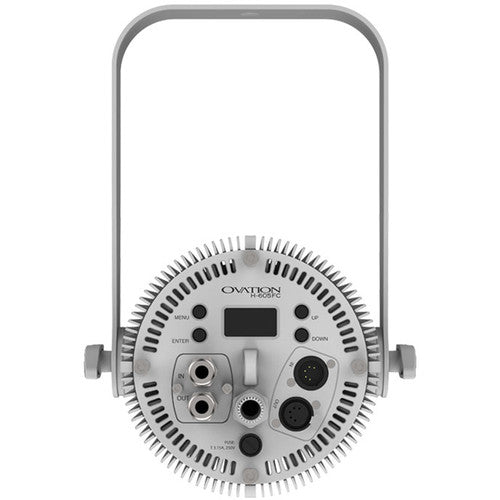

5-Pin XLR and terminal blocks for DMX connections
Use included yoke for pipe mounting, or suspend from integrated loop-eye
Virtual color wheel with color matched to popular gel colors
Color temperature presets from 2800 to 6500K with high CRI and CQS
16-bit dimming for ultra-smooth fades
DMX, WDMX, and RDM (Remote Device Management) for added programming flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Light Source
60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime)
2 to 3 W, 800 mAh
50,000-hour life expectancy
Color Temperature
4766K at full power
CRI
90 at 5000K
Beam Angle
Without Lens: 28°
With 40° Lens: 39°
With 25° Lens: 19°
Field Angle
Without Lens: 60°
With 40° Lens: 66°
With 25° Lens: 37°
Light Intensity
Illuminance @ 16.4' / 5.0 m
Without Lens: 545 lux
With 40° Lens: 349 lux
With 25° Lens: 1047 lux
Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Dim Modes: Four built-in automated programs
Selectable PWM: 600, 1200, 2000, 4000, 6000, or 25,000 Hz
Control
Protocols: DMX, RDM, W-DMX
DMX Channels: 1, 3, 5, 7, 10, 12, 13, 15, or HSV
Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 15, HSV)
Connections
Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (Power): 15' / 4.5 m
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 155 W, 1.275 A @ 120 V, 60 Hz
Power and Current: 145 W, 0.731 A @ 208 V, 60 Hz
Power and Current: 146 W, 0.662 A @ 230 V, 50 Hz
Certifications & Ratings
CE, MET
IP Rating: IP20, dry location
Finish
White
Dimensions
13.1 x 13.3 x 9.4" / 33.3 x 33.9 x 24.0 cm
Weight
19.6 lb / 8.9 kg
